Sony ILX-LR1 Full Spectrum Infrared Converted Mirrorless Digital Camera

Loading...
SOILXLR1B
SKU: SONY-ILXLR1 Categories: , Tags: , , , , , , , , , , , , ,

$3,423.72

CONVERSION TYPE *

Filter Quality *

Loading...

Description

Brand new camera with original accessories, has been taken out of the box to convert. With our services, we can modify this camera to expand it’s capabilities to capture not just visible but near infrared and ultraviolet wavelengths of light. All conversions include a professional re calibration to infinity focus.? We are also able to maintain the dust reduction system in the ILX-LR1.

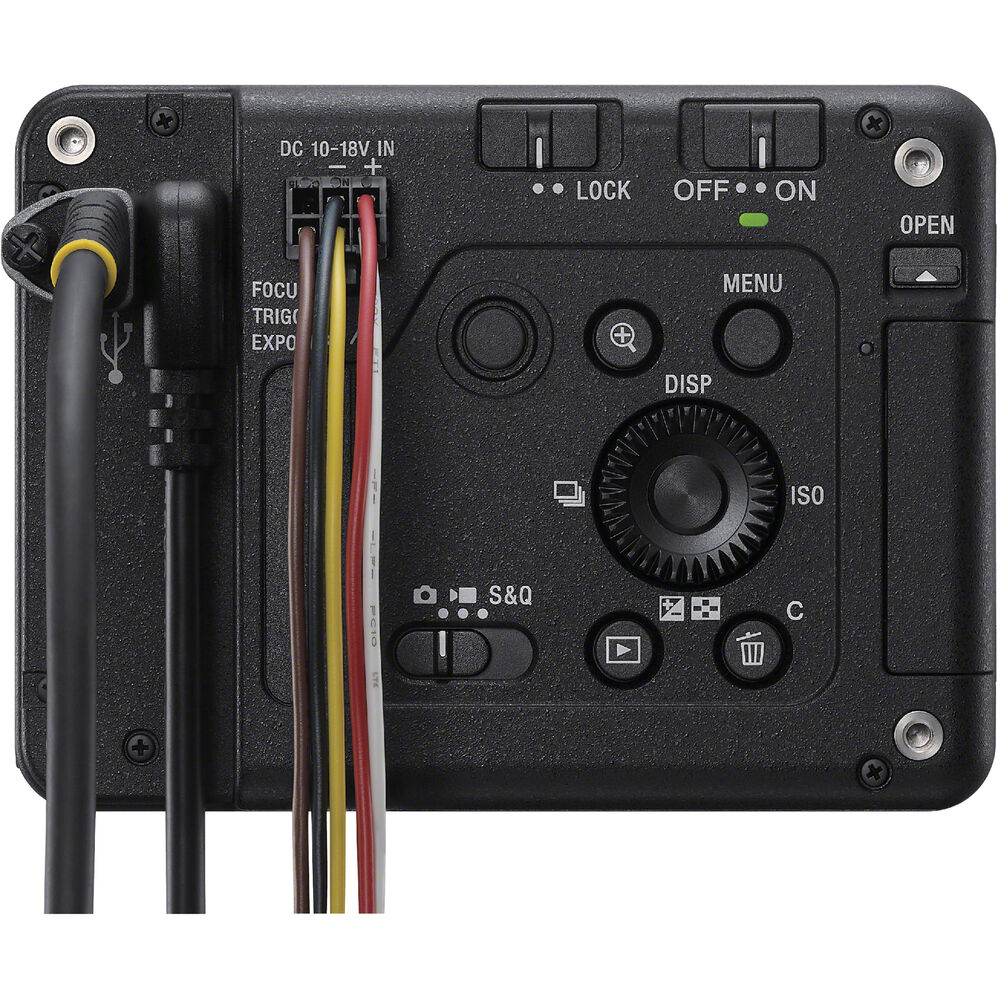

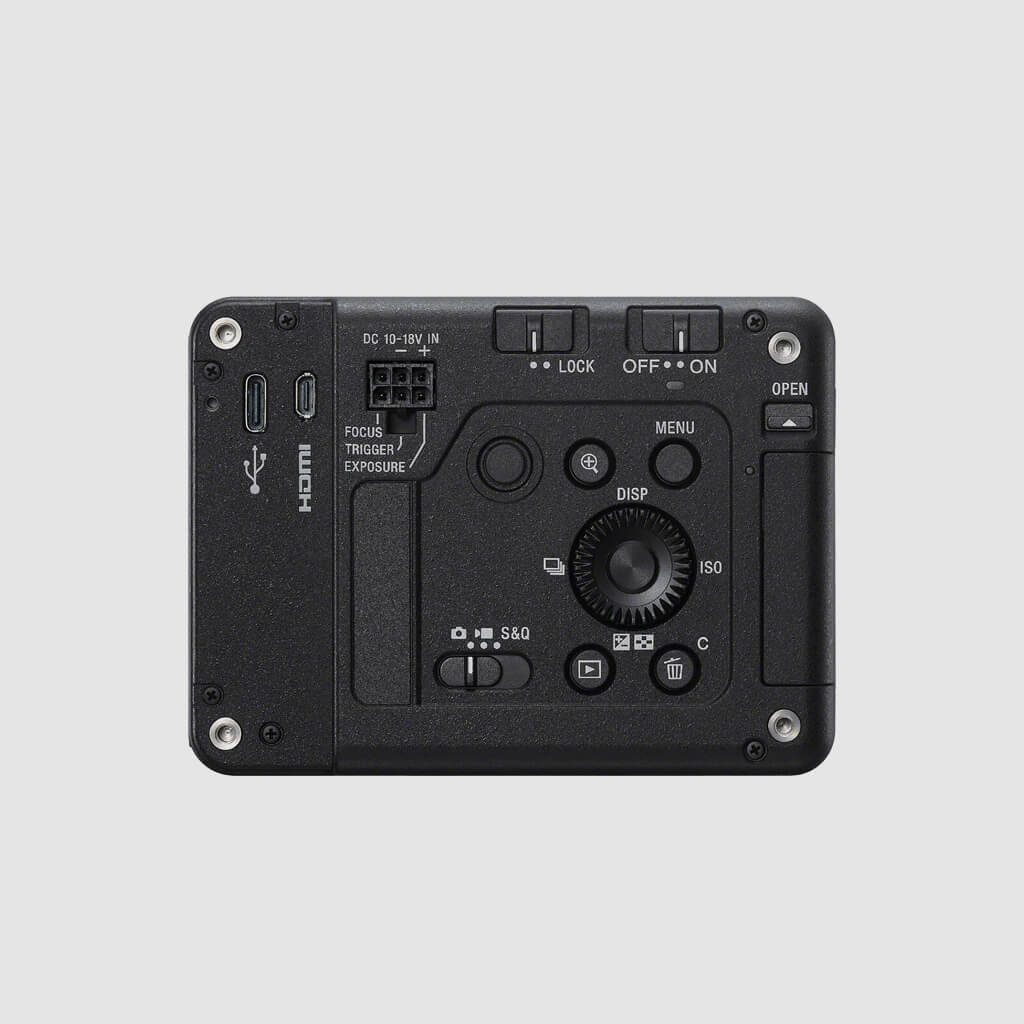

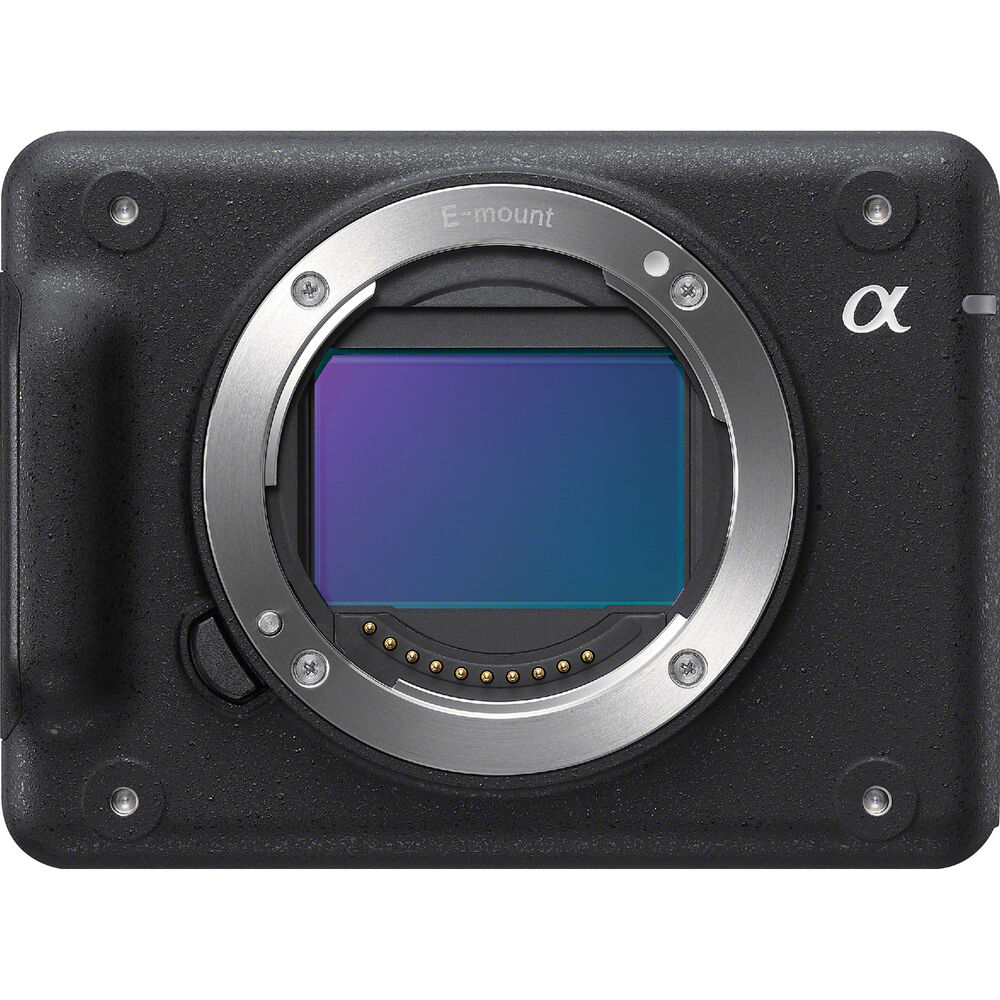

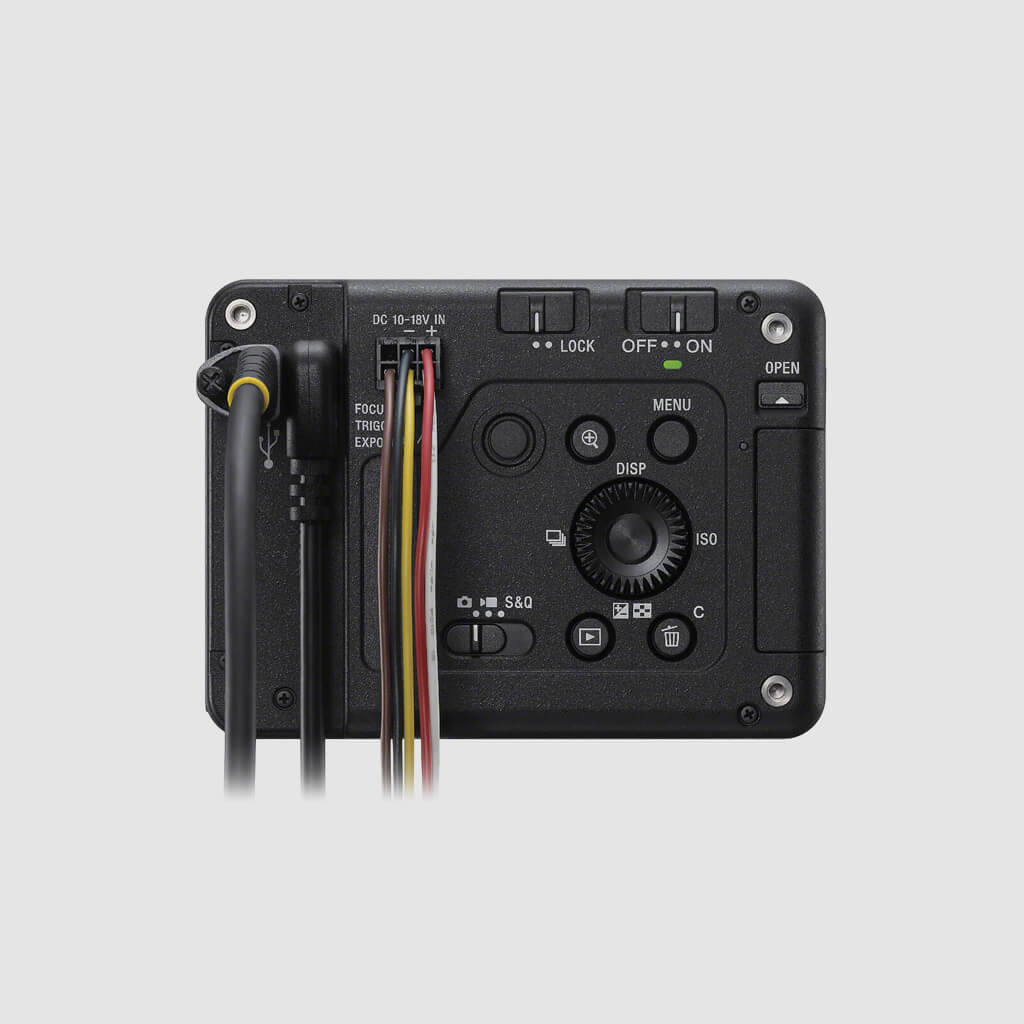

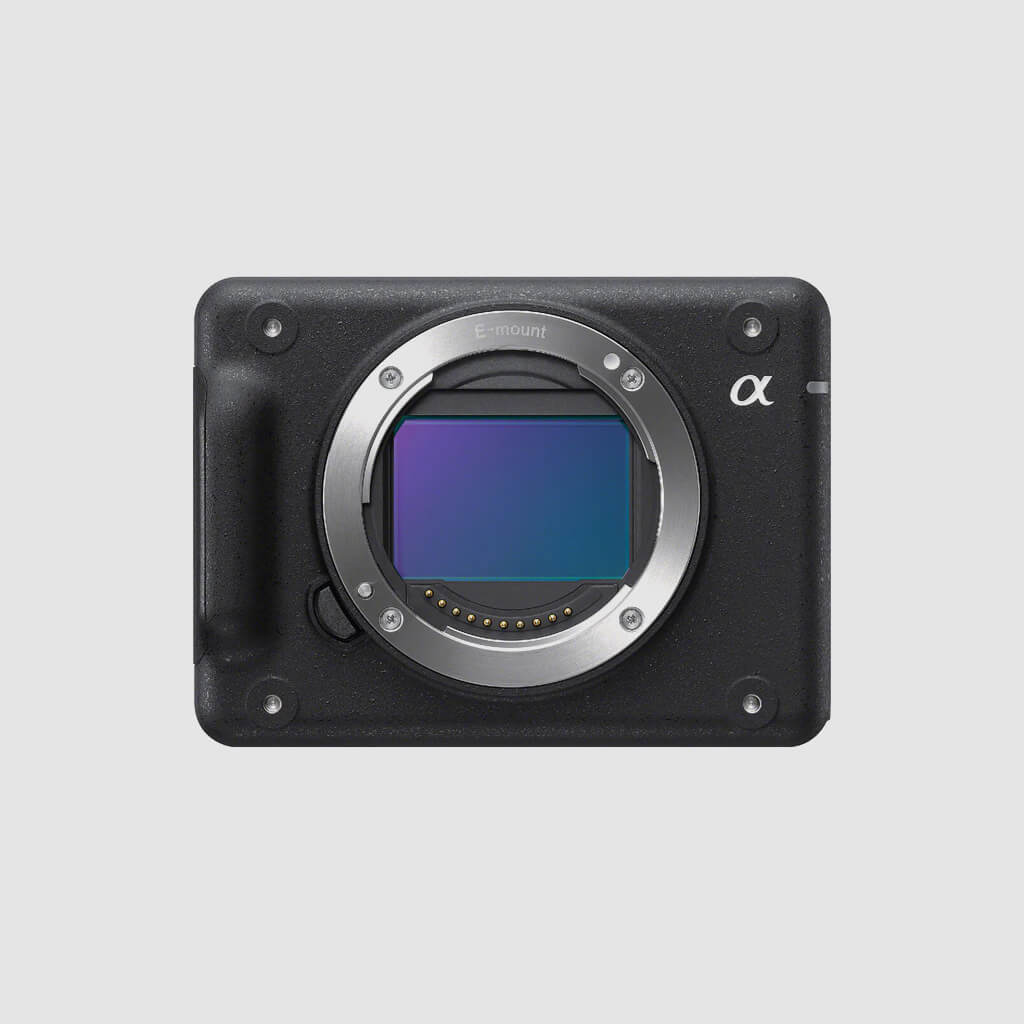

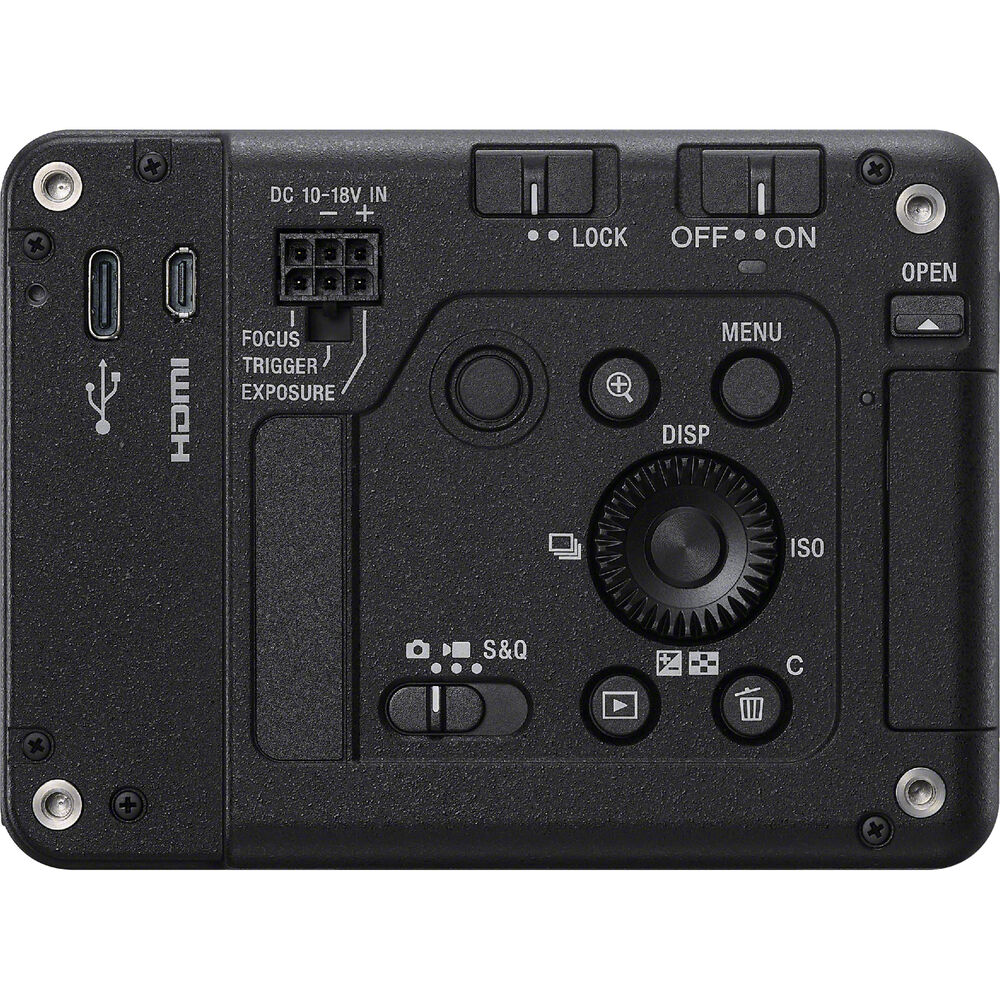

Combining the sensor and resolution of its mirrorless cousins, the Sony ILX-LR1 Industrial Camera is designed to capture stunning 4K imagery while remaining light enough to install onto a drone or industrial equipment. The simplified design weighs under 9 oz and features an interchangeable E-mount to utilize a wide range of lenses. Though it is compact in size, it features numerous controls, HDMI and USB-C outputs, an SD card slot, and terminal power and remote control options.

Cameras are made to order, allow up to two weeks for order shipment

Package contents include:

  • Sony ILX-LR1 Digital Camera (converted)

By purchasing you agree to our Terms of Purchase

Additional information

Weight 4 lbs
Camera Brand

Sony
Camera Style

Mirrorless
Product Condition

Why Choose Us?

  • Professional dust free infrared conversion in an ISO Class 5 clean bench using high quality glass and fused quartz
  • Anti-reflective coated filters to reduce hotspots and glare
  • The ONLY company that uses optically engineered IR filters for the best infrared photography camera you can own
  • Free and quick 1-2 week average turnaround
  • Over 900 supported models for infrared conversion
  • 550nm, 590nm, 665nm, 720nm, 850nm, NDVI/Blue IR, Full Spectrum, and Two Spectrum infrared filters all one low price!
  • Free custom lens calibration
  • Free domestic return shipping with a mail-in box option
  • 1 year warranty on converted cameras and infrared conversions
  • Authorized repair shop partner for long term service of your infrared converted camera

Warranty

All of our conversions and converted or modified cameras come with a 1 year warranty for post-conversion malfunctions and electronic issues related to the conversion service.

This warranty does not include wear and tear repairs such as, but not limited to; shutter failure. Warranty does not cover user-caused damage, or other issues unrelated to our conversion services or camera modifications.

For more comprehensive coverage we highly recommend our Extend warranty, which also covers accidental damage.

IR Filter Choices

Direct from Camera, Custom White Balance
 Channel Swapped Black & White Direct from Camera, Auto White Balance
590 Filter 590 Infrared Conversion Filter (custom white balance) 590 SWB FC 590 Infrared Conversion Filter (Black and White) 590 Infrared Conversion Filter (Auto White Balance)
665 Filter 665 Infrared Conversion Filter (custom white balance) 665 Infrared Conversion Filter (Channel Swapped) 665 Infrared Conversion Filter (Black and White) 665 Infrared Conversion Filter (Auto White Balance)
720 Filter 720 Infrared Conversion Filter (custom white balance) 720 Infrared Conversion Filter (Channel Swapped) 720 Infrared Conversion Filter (Black and White) 720 Infrared Conversion Filter (Auto White Balance)
850 Filter 850 Infrared Conversion Filter (custom white balance) N/A 850 Infrared Conversion Filter (Black and White) 850 Infrared Conversion Filter (Auto White Balance)
Blue IR
 Blue IR Infrared Conversion Filter (custom white balance) Blue IR Infrared Conversion Filter (Channel Swapped) Blue IR Infrared Conversion Filter (Black and White) Blue IR Infrared Conversion Filter (Auto White Balance)
Full Spectrum
 Full Spectrum Conversion Filter (custom white balance) Full Spectrum Conversion Filter (Channel Swapped) Full Spectrum BW Full Spectrum Conversion Filter (Auto White Balance)

Processing Time

Our standard turnaround time for camera conversions is 2 weeks on average for most models. This is only an estimate and not a guarantee. Our standard turnaround time may occasionally exceed 2 weeks during our busy season (April-August) or take less than 2 weeks in our off-season (September-March).

We also offer 5-day and 1-2 day rush processing options on our camera conversions for an additional fee. Our rush services allow us to coordinate the logistics of your conversion ahead of time to meet your deadlines to the best of our ability. Our rush processing time does not include shipping times.

We do our best to accommodate each and every one of our customers year-round.

If ordering one of our pre-converted cameras, keep in mind that they are made to order and are not eligible for rush processing. Please allow at least 2 weeks before your camera ships out to you. Plan for trips and assignments accordingly!

Any time frames that we provide, including shipping time, turnaround time, and rush processing times, are only estimates and are subject to availability. We make no guarantees on service time or shipping times.

AR Coating

What is the AR coating and what does it do? The AR coating option adds an IR centered anti-reflective coating onto the IR filter we install when we perform an infrared conversion. It reduces hotspot artifacts that some lenses are prone to, and can reduce other stray reflections. On our full spectrum conversions we apply a broadband AR coating that covers the UV, visible, and IR ranges. The coating does not reduce optical performance in any way and is highly recommended.

Background:

Uncoated glass has a reflection of around 4-5% at all wavelengths, and we found that this reflection off the sensor filter was bouncing off the glass and reflecting back from the lens housing and aperture blades to cause IR hotspots.  We developed this anti-reflective coating that is centered around the IR wavelengths that cause hotspots, and reduced the 5% reflection down to <0.5%

Reflectance Curve

Conversion AR Coating

When applied to our internal conversion filters, we find that hotspots are significantly reduced during infrared photography. Below is a sample from a Nikon 50mm 1.8 which has a strong hotspot at small apertures. Independent tests also available from Mark Hilliard here and Edd Noble here.

Hotspot AR

What's In The Box?

  • Package contents include:

  • Sony A7R II Digital Camera (converted)
  • Rechargeable battery
  • Charger
  • Neck Strap
  • USB Cable

International Orders

Do you accept international orders?

Absolutely! For accurate shipping costs, please enter your complete shipping address during the checkout process. Some locations may be subject to a remote area surcharge via FedEx Express. The system will not automatically calculate this surcharge. Please check the following link if your city/zip code is considered a remote area: Zipcodes_OPA_ODA.pdf

If you place an order and your city/zip code is on this list, we’ll reach out to you via email to collect the surcharge.

**Backordered Items: Please note that international orders that include backordered items will be held, and shipped together, when all items are in stock! If you need in-stock items to ship prior to this time we can do this upon your request, however, shipment of the remaining items will incur additional shipping fees. Please reach out to our customer service team if partial shipping is required.

***We legally can not declare lower values for customs and duties. We ship all of our international orders from the United States.  Please note that we do not collect taxes, duties, or VAT. International customers are responsible for all duties, taxes, and VAT that may be charged by their respective local customs office. You may also be subject to a brokerage charge when you choose FedEx, UPS, or DHL shipping options.***
