Infrared Clip-in Filter For Canon RF – Magnetic

Our Kolari Magnetic Clip-in Filters For RF-Mount (Infrared) are made to work with full-spectrum modified cameras to isolate specific wavelengths or create unique artistic effects. Our infrared filters are designed to either completely block visible light, allowing only near-infrared wavelengths to pass, or blend visible and infrared light for specialized imaging. This makes them ideal for fine art, forensic investigation, and a wide range of professional applications.

Crafted with the professional-grade optics Kolari is known for, these filters are securely fitted into a CNC-machined aluminum magnetic frame designed for maximum lens compatibility. This universal solution fits perfectly with lenses lacking filter threads and can be paired with external lens filters for added filtration effects.

For even more versatility, you can pair these filters with our Kolari EF-EOS R Drop-In Filter Mount Adapter, allowing for three layers of filtration.

Our infrared filters require a full-spectrum converted camera and will not produce the intended effects on stock, unmodified cameras.

Our Kolari R Clip-In Filters are compatible with the Canon EOS RP, R, R3, R5, R6, R6 II, R8, R7, R10 & R100**!

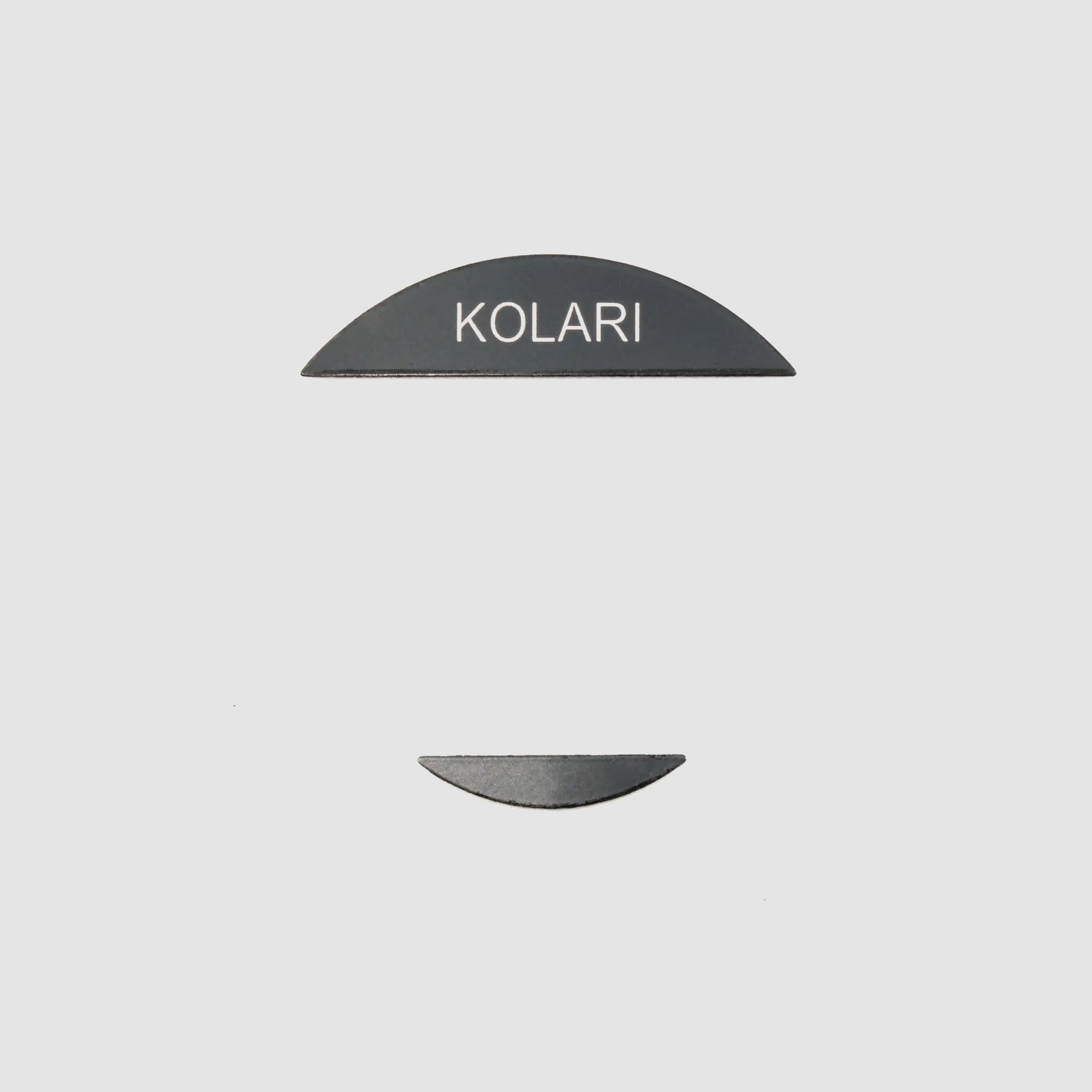

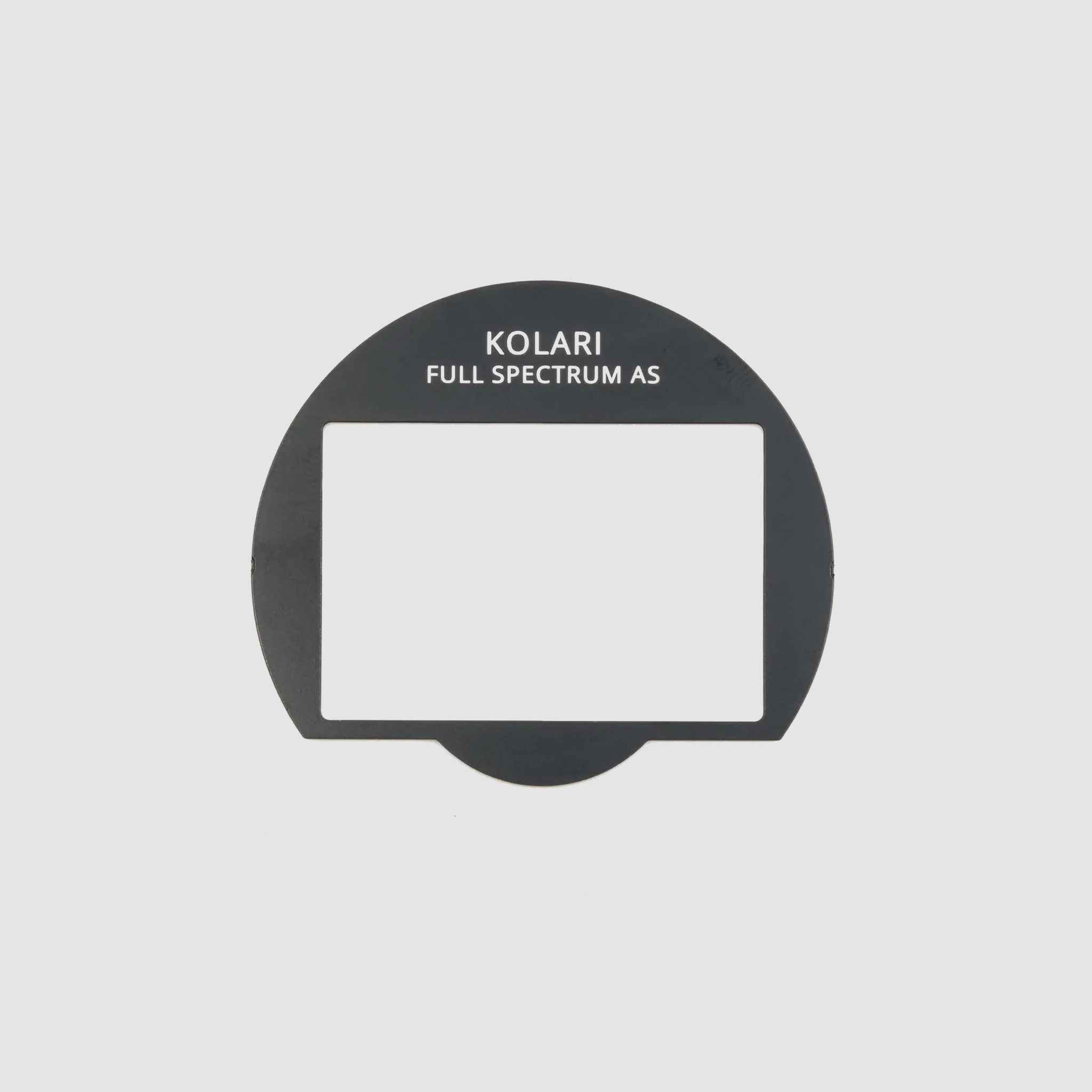

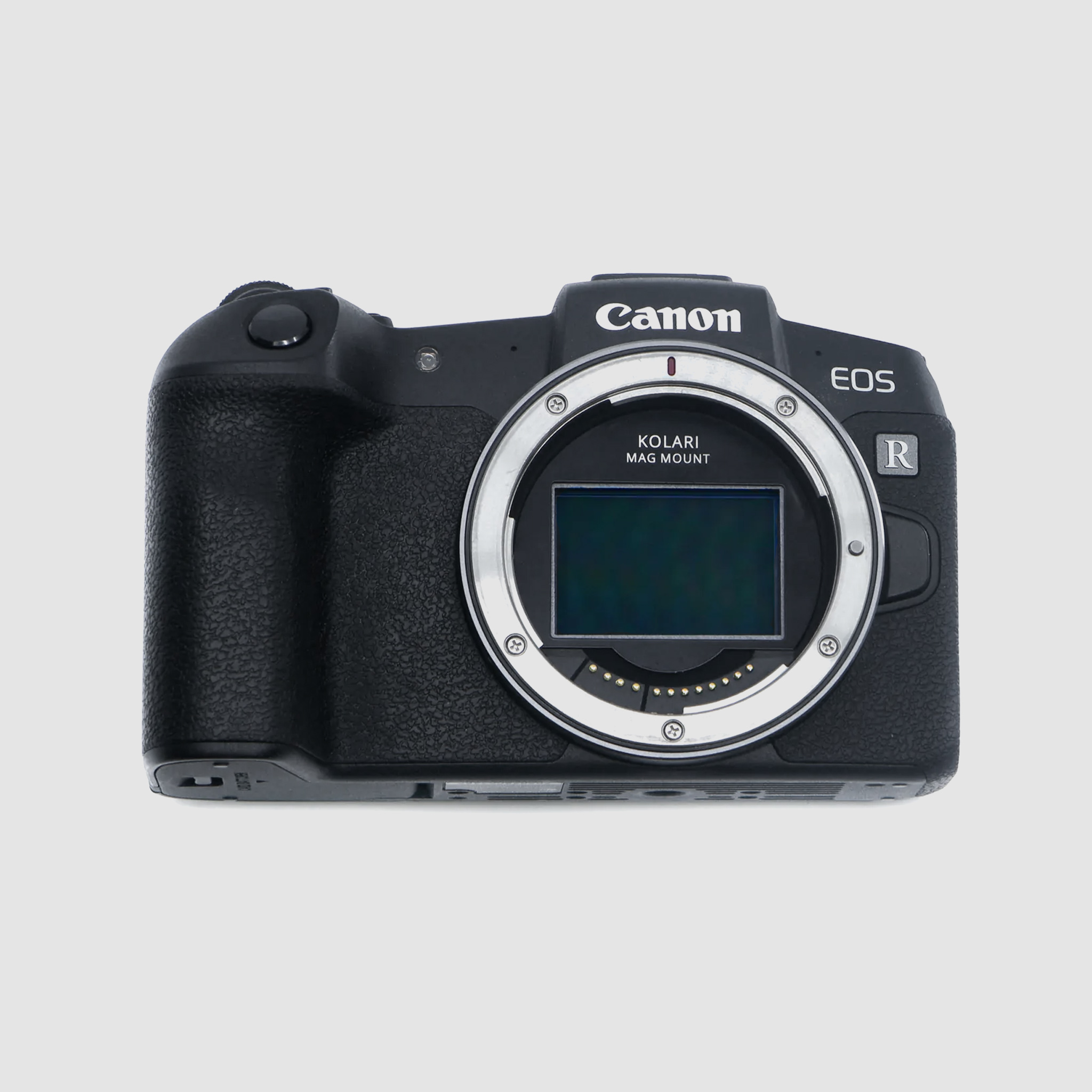

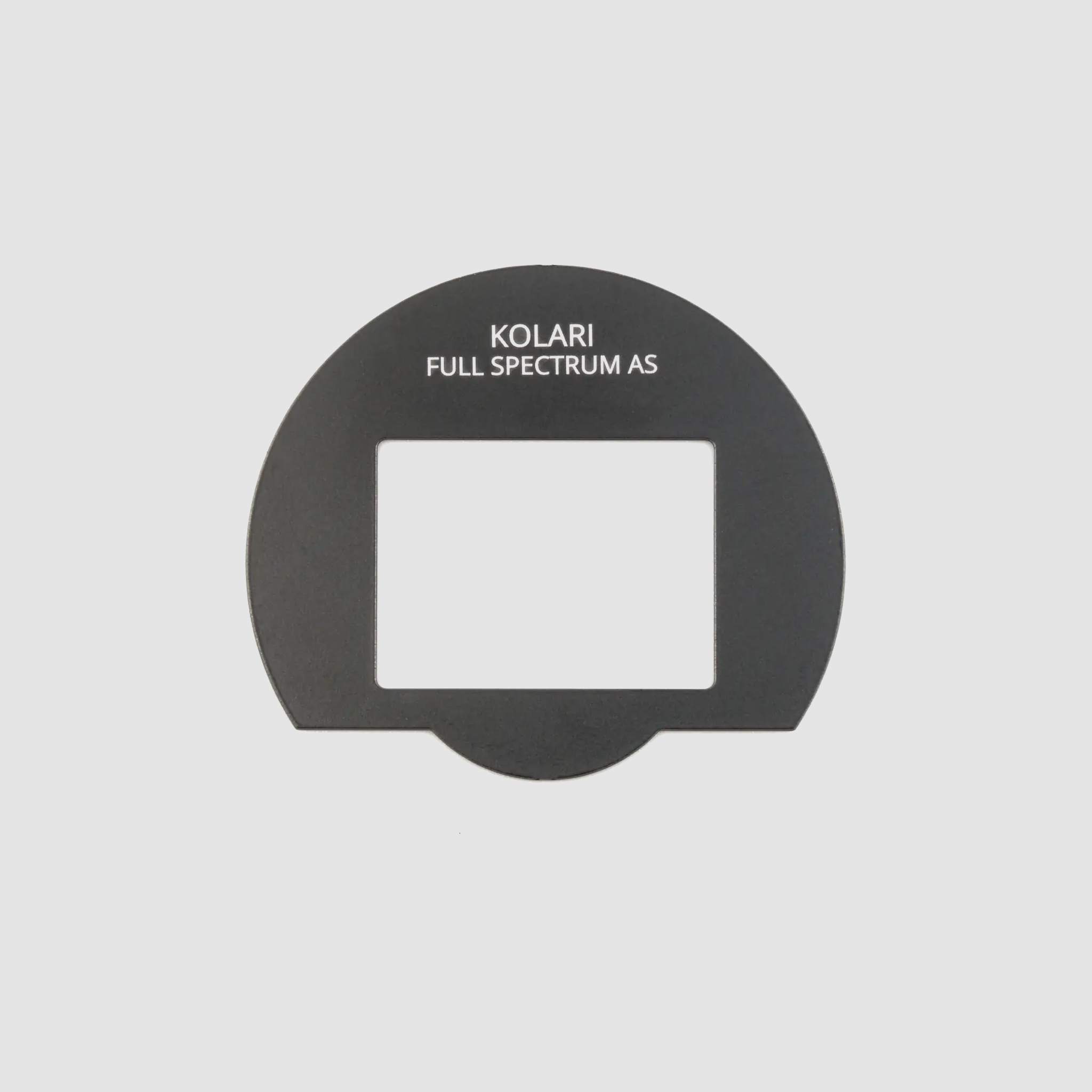

The Canon EOS RP, R8, and crop-sensor models (R7, R10 & R100) have a non-magnetic plastic inner mount but we provide a magnetic mounting plate with our filters that easily convert your RP, R7, R10 & R100 to be compatible with our magnetic clip-in filters.

The R, R3, R5, R6, R6 II are slightly magnetic but a mag mount is highly recommended for best functionality, additional strength, and protecting the baseplate from scratches.

* The R50 is not supported at this time.

* The Canon RF-S 18-150 lens is not compatible with our standard or slim clip-in filters.

*APS-C mount considerations (R50, R100, R7, R10). The APSC RF-S cameras have slightly smaller mounts and have reduced compatibility. The R10 and R7 are compatible with our regular clip ins, but the R50 and R100 are only compatible with the slim and ultra slim version. We highly recommend the ultra-slim frame style to maximize compatibility with these cameras. Please note, stacking is not supported on these cameras.

*The Canon RF 28mm f/2.8 and the Canon RF 28-70mm f/2.8 are not compatible with our standard or slim clip-in filters.

* The Canon RF-S 18-150mm and RF-S 10-20mm lenses are not compatible with our standard or slim clip-in filters.

* Metabones EF to RF Speed Booster Ultra 0.71x is not compatible with our standard, slim, or ultra-slim clip-in filters. Other speed boosters may not be compatible with clip-ins.

Our IR filters are made to work with full-spectrum modified cameras to target a specific wavelength or artistic effect. These filters either completely block visible light while only letting near-infrared pass or offer a mixture of both visible and near IR light. Useful for fine art, forensics, and many other professional applications.

IR Filter Options:

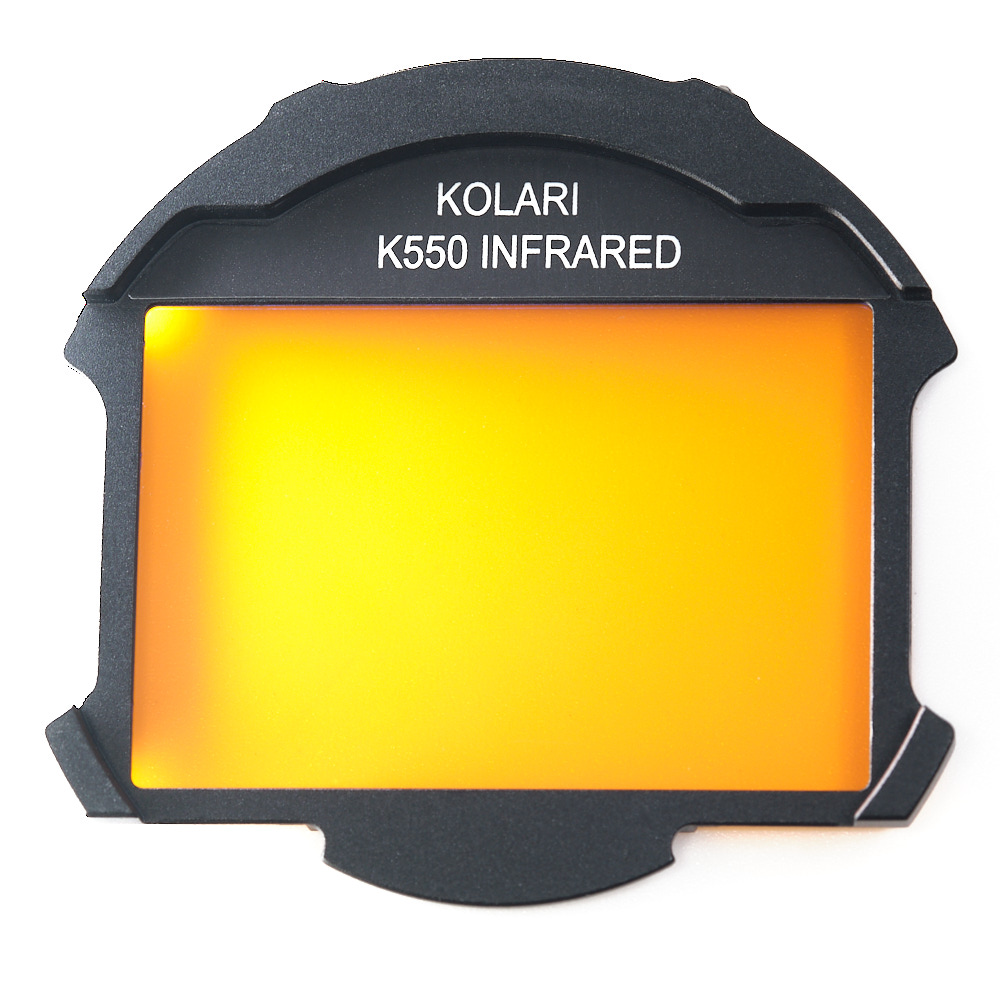

550nm Infrared – Inspired by false-color IR film, the 550nm can produce deep blue skies and pink foliage. This filter lets in more visible light than the 590nm filter and can be used to emulate aerochrome (but not as easily as our IR Chrome Filter) after a channel swap and a few hue adjustments. The unique colors that can be achieved with this filter are perfect for interesting IR landscapes. This filter requires post-processing and is compatible with a full spectrum camera.

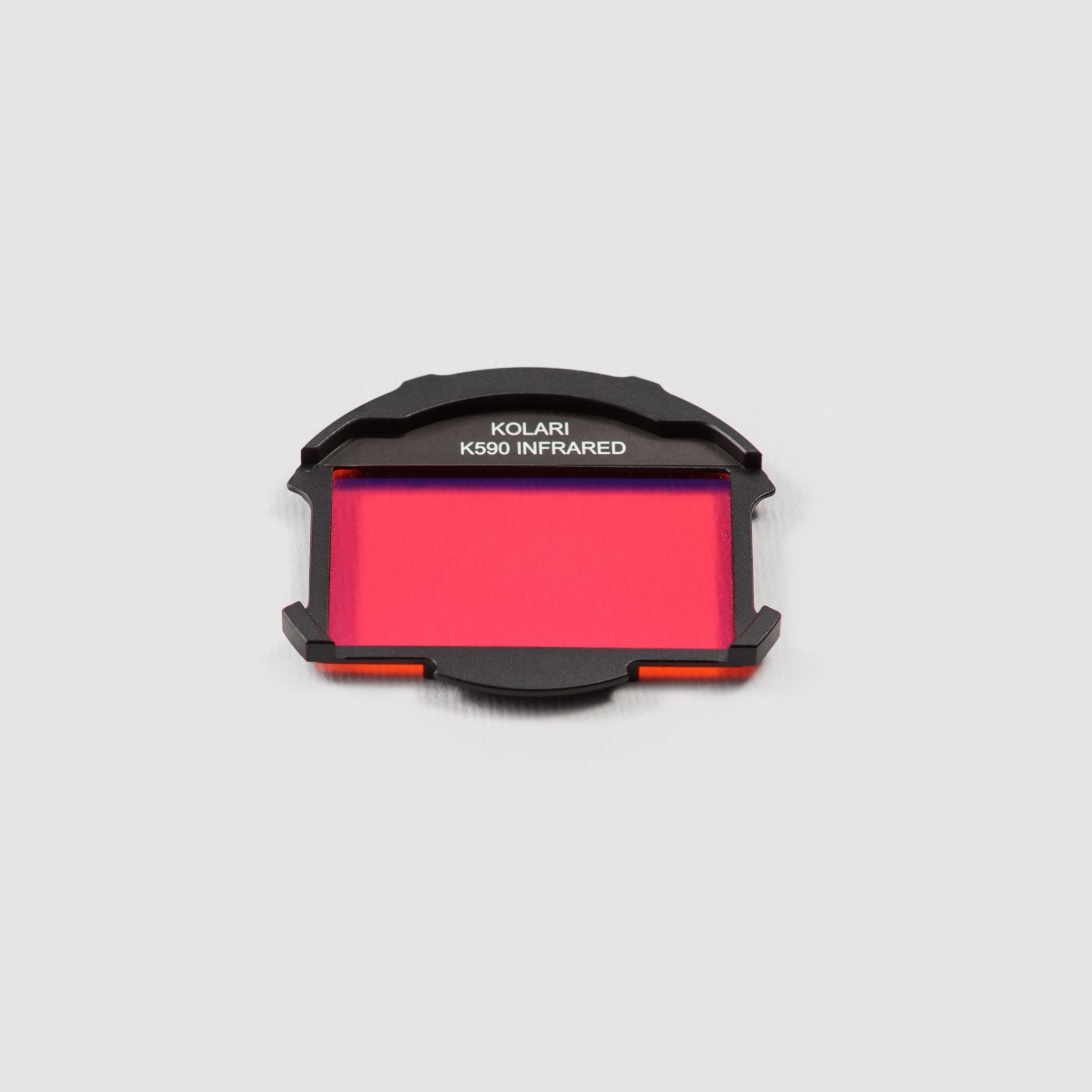

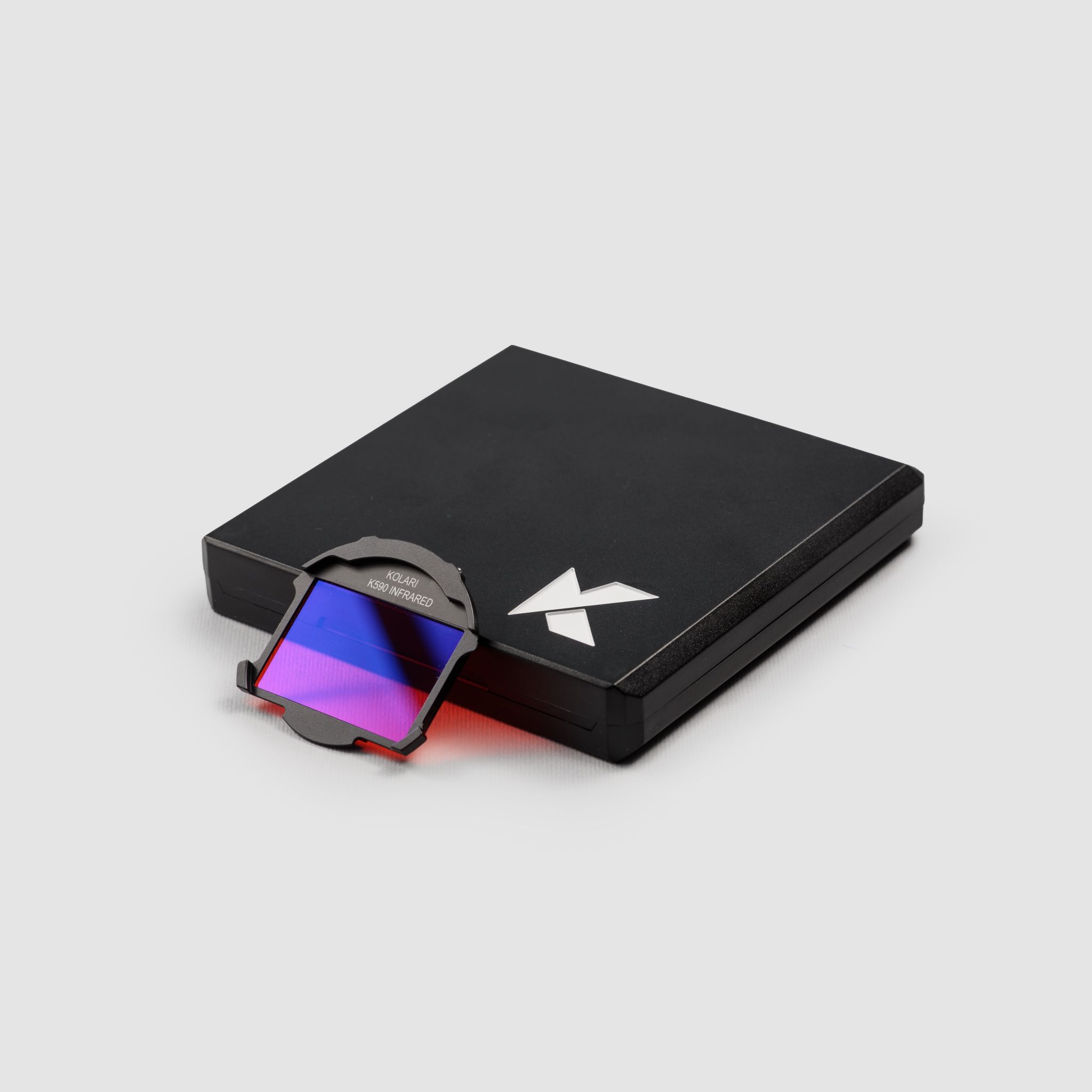

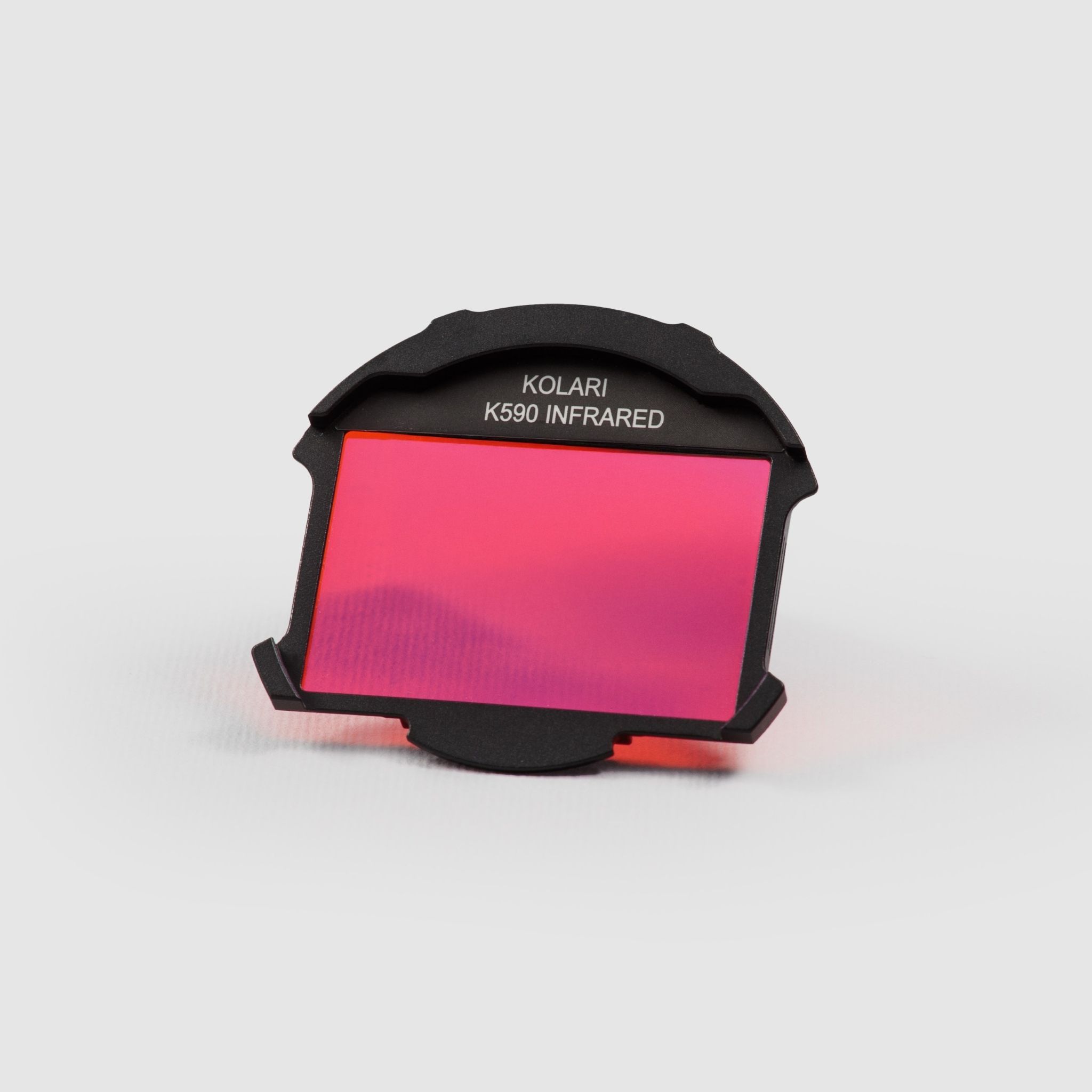

590nm Infrared – The 590nm filter can produce vibrant false colors while allowing for flexibility in post-processing. It’s typically used to produce golden-yellow foliage and bright blue skies. This filter requires post-processing and is compatible with a full spectrum or a lower cutoff IR converted camera.

665nm – The 665nm filter can produce vibrant false colors with good B+W contrast. It’s typically used to produce light yellow leaves or the classic white IR look with blue skies. This filter requires post-processing and is compatible with a full spectrum or a lower cutoff IR converted camera.

720nm Infrared – The classic IR filter, the 720nm filter is great for blue sky false color and provides great contrast and dynamic range for B+W. This filter requires post-processing and is compatible with a full spectrum or lower cutoff IR converted camera.

780nm Infrared – The 780nm IR filter creates the classic high contrast B&W IR effect straight out of camera while letting in more light than a traditional 850nm filter. Perfect for B&W IR photography with minimum post-processing, hotspots are also less severe when using this filter. This filter requires post-processing and is compatible with a full spectrum or lower cutoff IR converted camera.

850nm Infrared – The 850nm IR filter creates the classic high contrast B+W IR effect straight out of camera. This filter is compatible with a full spectrum or lower cutoff IR converted camera. It can also be used with some stock cameras with a long exposure.

IR Chrome Lite – The IR Chrome Lite uses both infrared and visible light to mimic the look of the classic Kodak Aerochrome IR film with little to no editing. This filter is only for use with a full spectrum converted camera. Its thin glass design allows it to work behind the lens and achieves richer color than the original IR Chrome.

Filter Types:

Regular: Our original clip-in filter form factor. This filter allows you to add rear filtration to Canon RF full-frame cameras. In Full Frame cameras, this filter can be stacked on top of our new Ultra-Sim filters when using our Kolari EF-EOS R Drop-In Filter Mount Adapter For Canon RF-Mount, and with RF lenses with flat rear elements.

Slim: Our second iteration of Kolari R Magnetic Clip-In Filter made for Canon RF and RF-S Mounts. The slim filters increase compatibility with RF-S cameras like the R100 and R50 which do not work with the regular style clip in.  Can only be stacked on top of an ultra-slim filter in full frame cameras when using our drop in adapter, or RF lenses with flat rear elements. You can not stack two slim filters.

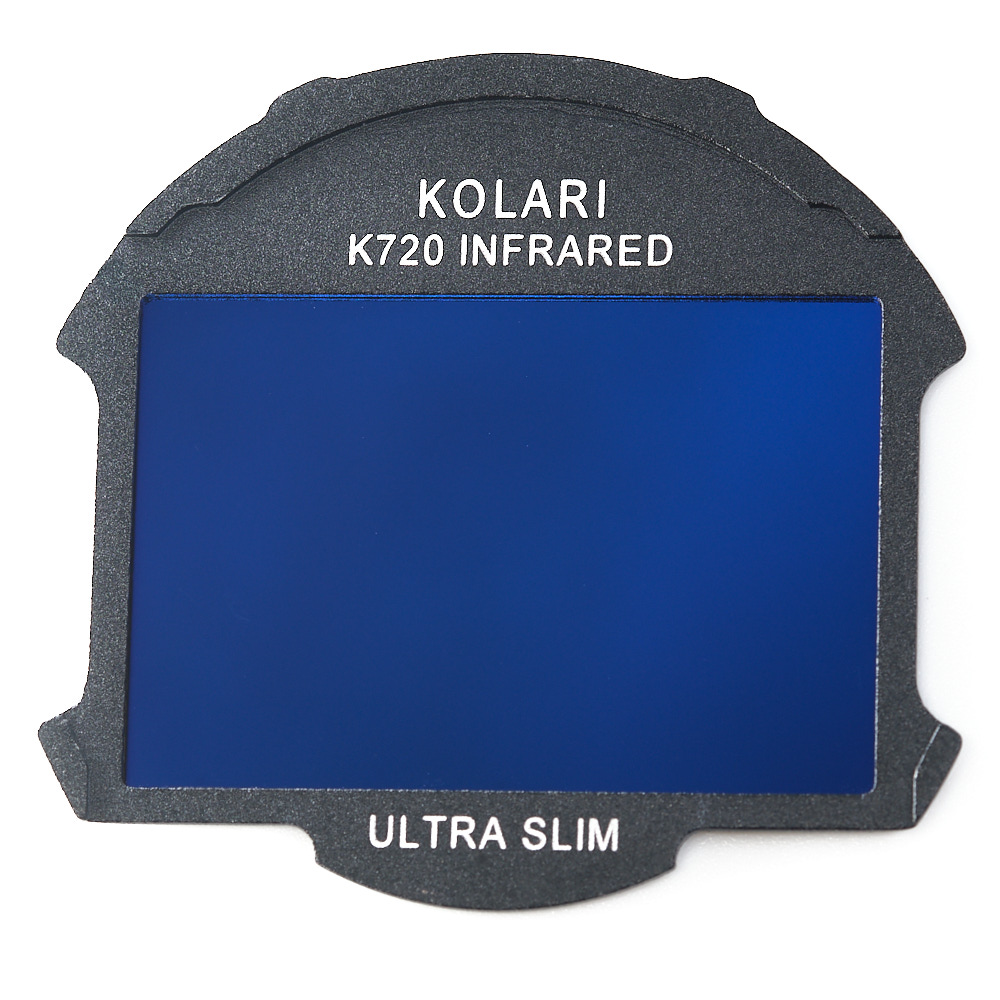

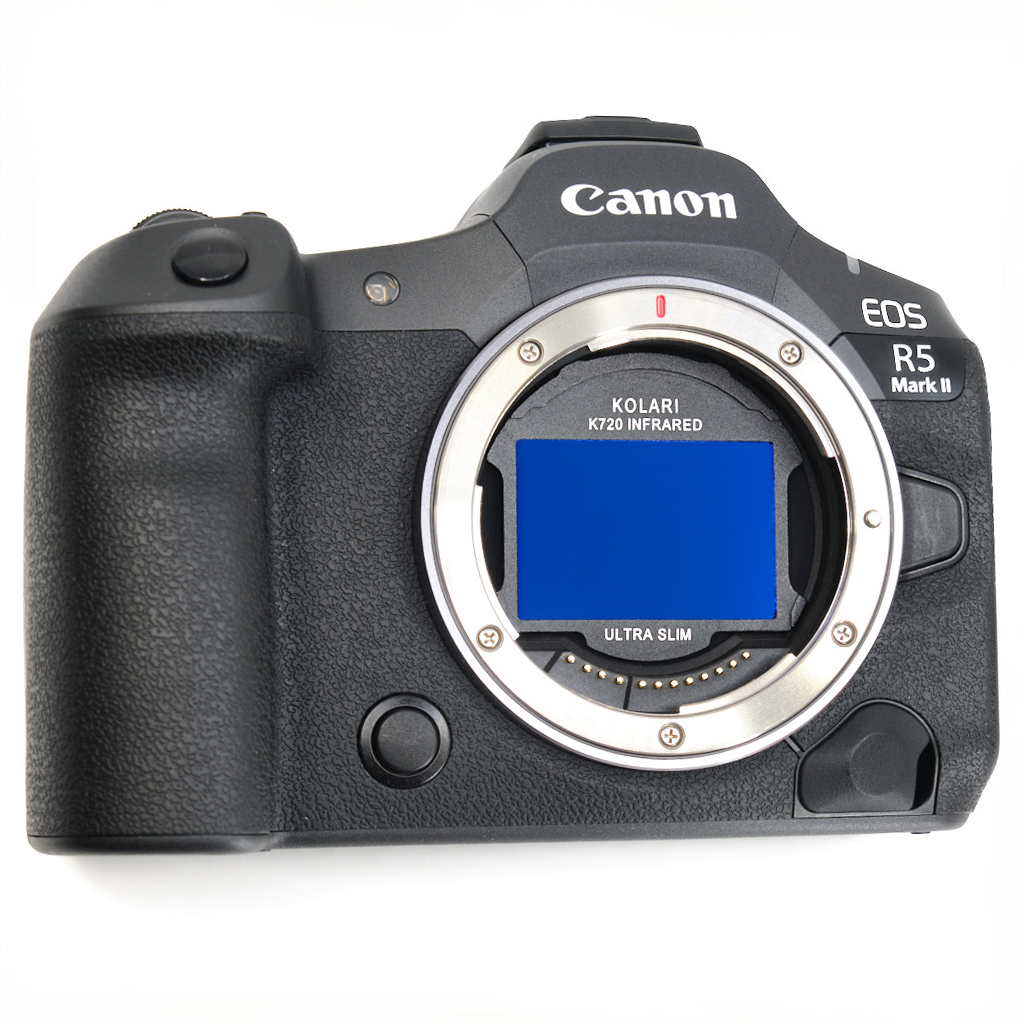

Ultra-Slim: Our latest clip-in filter form factor. This filter type features an ultra-slim frame that allows you to stack another ultra-slim, slim, or regular filter on top to get two layers of rear filtration when using full frame cameras. For example, you can stack a 1/8 mist diffusion filter on top of a 3-Stop ultra-slim filter and take advantage of both effects. When stacking filters, the ultra-slim filter must always be the first filter within the stack, closest to the mount. This filter is highly recommended if you are using RF-S cameras to maximize lens compatibility.

We understand that post-processing IR images can be challenging at first but don’t worry, we have many resources and tutorials available for IR photographers. Here are a few of our most popular IR post-processing resources below:

Custom DNG Tutorial for setting a white balance for infrared photography – https://kolarivision.com/post-infrared-photo-editing/custom-dng-tutorial-setting-white-balance-infrared-photography/
INFRARED PHOTOGRAPHY FALSE COLOR TUTORIAL – https://kolarivision.com/post-infrared-photo-editing/infrared-photography-false-color-tutorial/
ADVANCED COLOR PROCESSING TECHNIQUES – https://kolarivision.com/post-infrared-photo-editing/enhanced-color-processing-techniques/
CLiR Infrared Photography Mastery – Complete IR Course and Software – https://kolarivision.com/product/clir-infrared-photography-mastery-complete-ir-course-and-software/
Infrared LUT Pack by Pierre-Louis Ferrer – https://kolarivision.com/product/infrared-lut-pack/

Vendor: Kolari Vision EU
Type: Lens Filter
Options: IRND 3 -stop, IRND 6-stop, IRND 10-stop, Iridium Color Enhancing, Light Pollution, Mist Diffusion 1/2, Mist Diffusion 1/2 + 3 Stop, Mist Diffusion 1/2 + 6 Stop, Mist Diffusion 1/4, Mist Diffusion 1/4 + 3 Stop, Mist Diffusion 1/4 + 6 Stop, Mist Diffusion 1/8, Mist Diffusion 1/8 + 3 Stop, Mist Diffusion 1/8 + 6 Stop, 550nm, 590nm, 665nm, 720nm, 780nm, 850nm, Hot Mirror 2, UVIR Ha, Irchrome Lite, Clear Quartz – Dust Protective, HSK (IR Hotspot Killer), UV/IR Cut Hot Mirror, Blue IR/NDVI, OEM Hot Mirror
SKU: RclipIRND3Pro
Barcode: 786032887658
Weight: 6g
