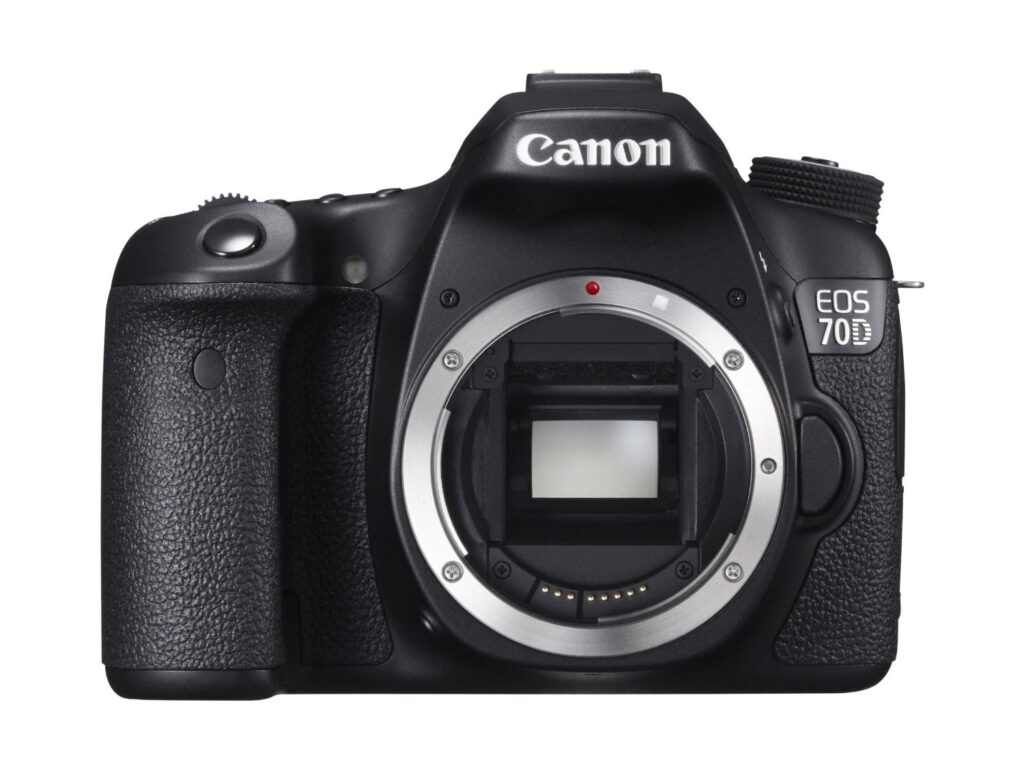

Infrared Conversion Canon 70D Infrared Converted DSLR Camera Body

CONVERSION TYPE *

Hotspot Reducing AR Coating

Description

  • Brand new camera with original accessories, has been taken out of the box to convert to infrared, will be black color.

    The Canon 70D features live view, an indispensable feature for focusing and composing directly in infrared.

    Cameras are made to order, allow up to a week for order shipment.



    Package contents include:

  • Canon EOS 70D Digital Camera (converted)
  • Rechargeable battery
  • Charger
  • Wriststrap
  • USB Cable
  • Software CD

Why Choose Us?

  • Professional dust free infrared conversion in an ISO Class 5 clean bench using high quality glass and fused quartz
  • Anti-reflective coated filters to reduce hotspots and glare
  • The ONLY company that uses optically engineered IR filters for optimal performance
  • Free and quick 5 day average turnaround
  • Over 650 supported models for infrared conversion
  • 590nm, 665nm, 720nm, 850nm, NDVI/Blue IR, Full Spectrum, and Two Spectrum infrared filters all one low price!
  • Free custom lens calibration
  • Free domestic return shipping
  • 1 year warranty on new infrared converted cameras, 30 day warranty on all infrared conversions
  • Authorized repair shop partner for long term service of your infrared converted camera

Warranty

All of our conversions 100% warrantied. Conversions on mail-in cameras come with a 30 day warranty. Our already converted cameras come with a 1 year warranty.

Filter Choices

Direct from Camera, Custom White Balance
Channel Swapped Black & White Direct from Camera, Auto White Balance
590nm Filter 590CWB (Medium) (Small) 590CWB-FC H (Medium) (Small) 590CWB-BW (Medium) (Small) 590AWB (Medium) (Small)
665nm Filter 665CWB (Medium) (Small) 665CWB-FC H (Medium) (Small) 665CWB-BW (Medium) (Small) 665AWB (Medium) (Small)
720nm Filter 720CWB (Medium) (Small) 720CWB-FC H (Medium) (Small) 720CWB-BW (Medium) (Small) 720AWB (Medium) (Small)
850nm Filter 850CWB H (Medium) (Small) N/A 850CWB H (Medium) (Small) 850AWB (Medium) (Small)
Blue IR NDVI BlueIRCWB H (Medium) (Small) BlueIRCWB BW (Medium) (Small)
Full Spectrum/ Two Spectrum

Processing Time

Our conversion processing time is about 5 business days. Our already converted cameras are made to order, please allow around 5 business days from ordering until they mail out.

AR Coating

What is the AR coating and what does it do? The AR coating option adds an IR centered anti-reflective coating onto the filter we install when we convert the camera. It reduces hotspot artifacts that some lenses are prone to, and can reduce other stray reflections. The coating does not reduce optical performance in any way and is highly recommended.

Background:

Uncoated glass has a reflection of around 4-5% at all wavelengths, and we found that this reflection off the sensor filter was bouncing off the glass and reflecting back from the lens housing and aperture blades to cause IR hotspots.  We developed this anti-reflective coating that is centered around the IR wavelengths that cause hotspots, and reduced the 5% reflection down to <0.5%

Reflectance curve

Conversion AR Coating

When applied to our internal conversion filters, we find that hotspots are significantly reduced. Below is a sample from a Nikon 50mm 1.8 which has a strong hotspot at small apertures. Independent tests also available from Mark Hilliard here and Edd Noble here.

Hotspot AR

Specifications

Body type
Body type Mid-size SLR
Sensor
Max resolution 5472 x 3648
Other resolutions 3468×2432, 2736×1824, 1920×1280, 720×480, 4864×3648, 3248×2432, 2432×1824, 1696×1280, 640×480,5472×3072, 3468×2048, 2736×1536, 1920×1080, 720×408, 3648×3648, 2432×2432, 1824×1824, 1280×1280, 480×480
Image ratio w:h 1:1, 4:3, 3:2, 16:9
Effective pixels 20 megapixels
Sensor photo detectors 21 megapixels
Sensor size APS-C (22.5 x 15 mm)
Sensor type CMOS
Processor Digic 5+
ISO Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (25600 with boost)
Boosted ISO (maximum) 25600
White balance presets 6
Custom white balance Yes
Image stabilization No
Uncompressed format RAW
JPEG quality levels Fine, Normal
Optics & Focus
Autofocus
  • Contrast Detect (sensor)
  • Phase Detect
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View

What's In The Box?

  • Package contents include:

  • Canon EOS 70D Digital Camera (converted)
  • Rechargeable battery
  • Charger
  • Wriststrap
  • USB Cable
  • Software CD
