GoPro Hero 7 DIY Full-Spectrum Conversion Lens

Loading...
SKU: KGoProDIYLens Category: Tag:

$99.99

Camera Model *

CONVERSION TYPE *

Lens *

Filter Set *

Loading...

Description

We are now happy to provide a DIY full spectrum conversion lens for the GoPro Hero 7. By installing this infrared capable lens you can convert your GoPro Hero 7 to full-spectrum, allowing it to capture a wide range of infrared wavelengths when combined with our dedicated Hero 7 IR filters. We have several filter options to choose from to be used in conjunction with your full-spectrum modified GoPro Hero 7! These lenses are brand new and match the the optical parameters of the original lens.

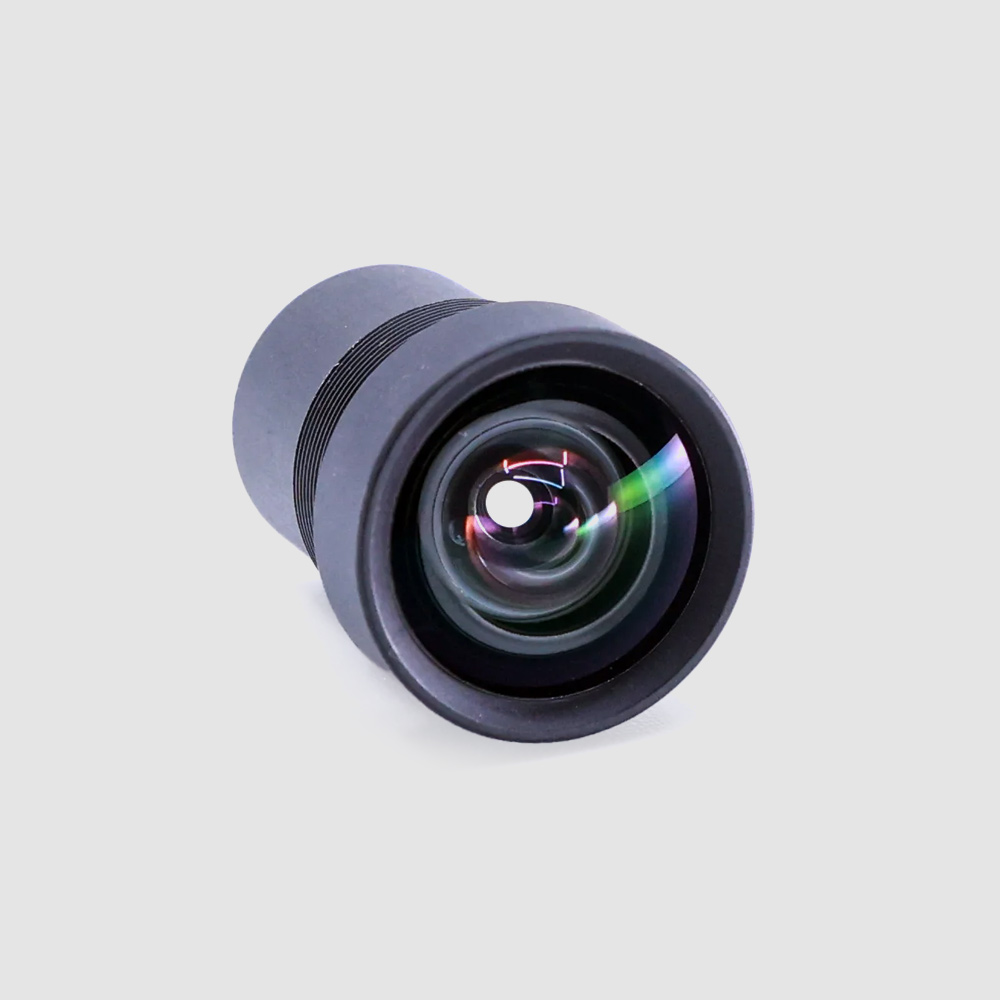

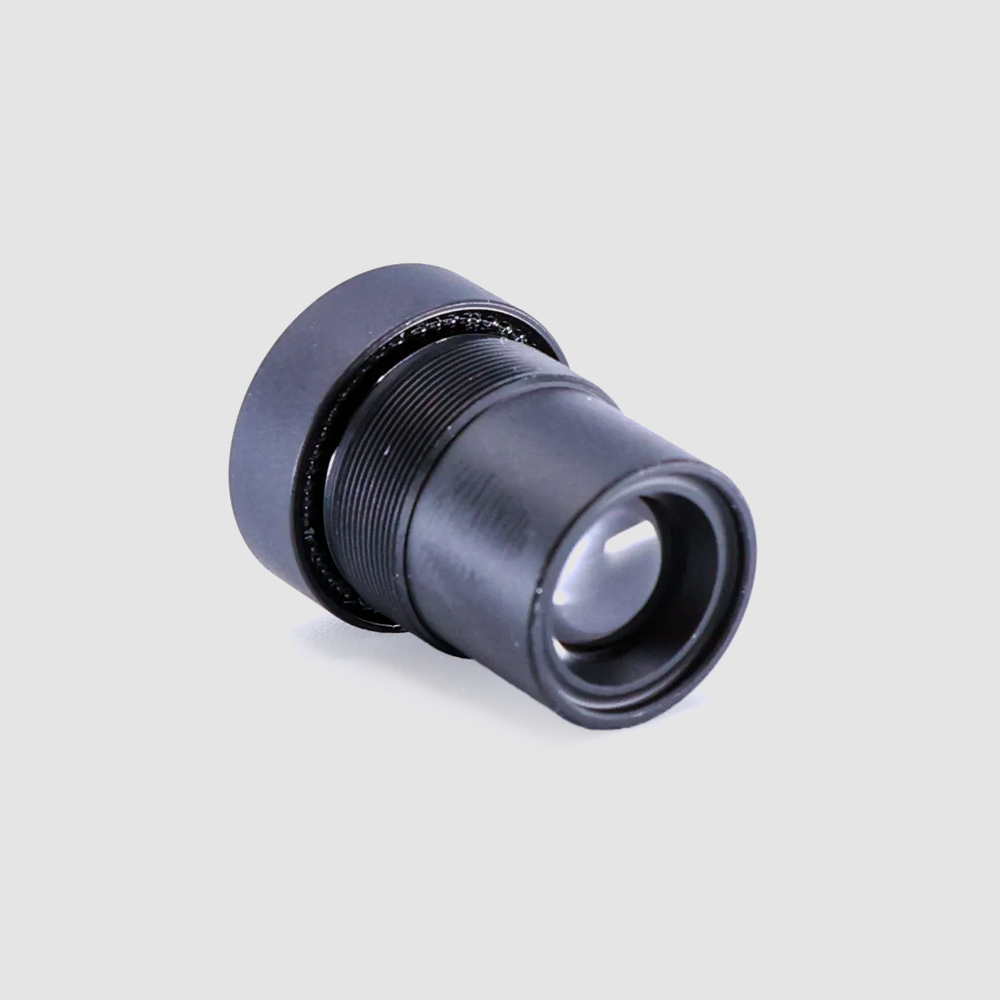

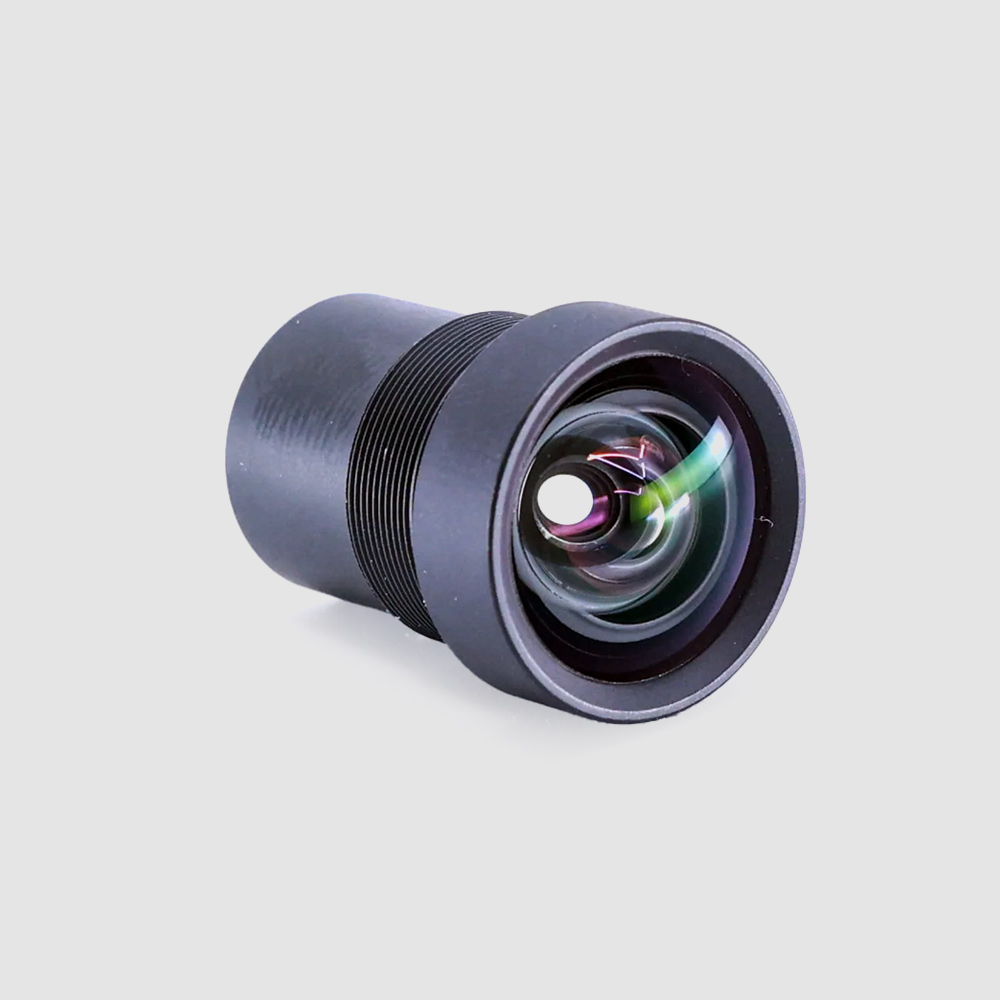

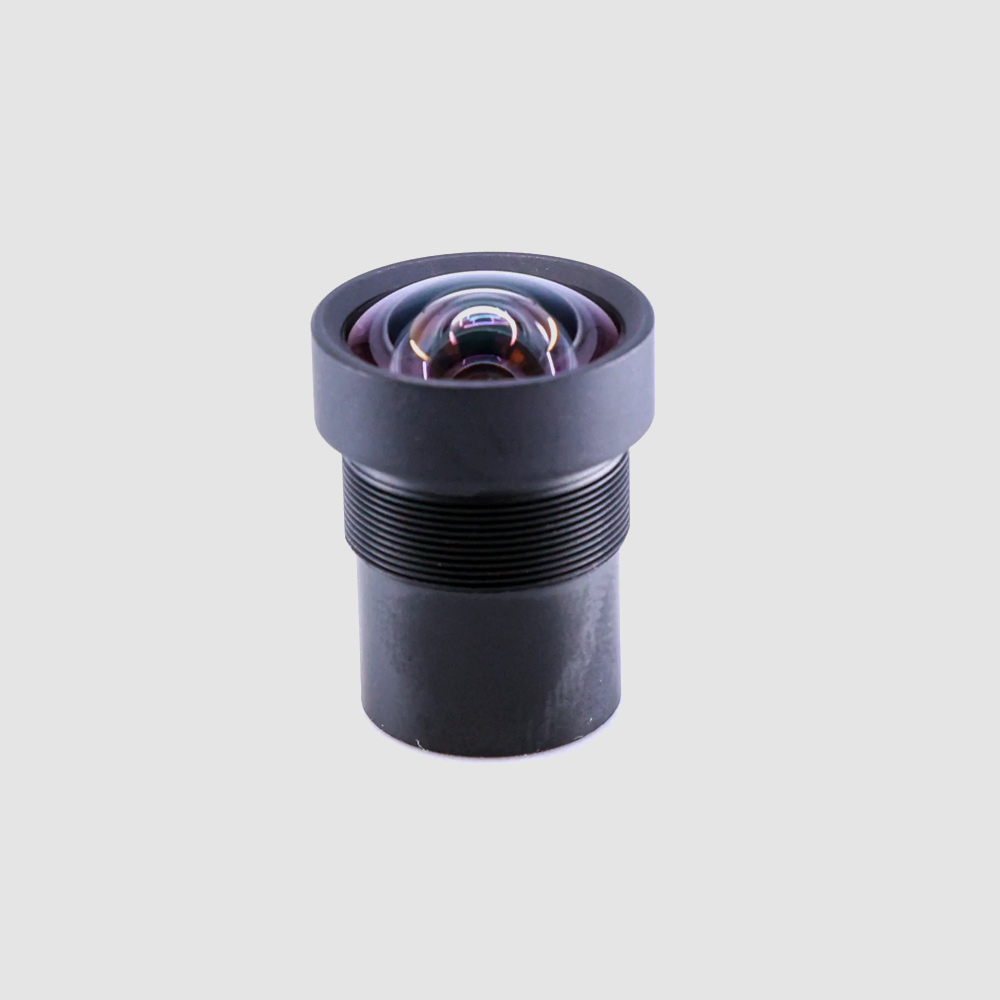

IR Lens Details:

  • 3.9mm, f/2.8 90D DFOV (no distortion) 20MP

Installation:

  • Remove the lens protector by rotating it counter-clockwise, and then pulling it away from the GoPro body
  • Unscrew the original lens with pliers
  • Screw the infrared/full spectrum lens into place

Focus Calibration:

  • You will need to recalibrate the lens to infinity once installed. This can be done by simply adjusting the rotation of the lens once in place
  • We recommend tethering the live feed to a large screen to aid in accurate focusing.
  • You can lay the GoPro on it’s back facing a ceiling, then adjust the lens rotation to calibrate infinity focus until the ceiling is sharply in focus.




By purchasing you agree to our Terms of Purchase.
