Fujifilm X-H2 Teardown

By Phillip Andrew Iglesias

The Fujifilm X-H2 was announced in September 2022 as a much-needed update to the original Fujifilm X-H1, released in 2018. Currently, the X-H2 is among Fujifilm’s most powerful video-centric cameras with the X-H2s. Before we get into the teardown, let’s talk about technical specifications.

The Fujifilm X-H2 houses a whopping 40.2MP APS-C sensor, which is impressive for the form factor. Fujifilm’s website says the camera is “the world’s first APS-C camera to enable 8K/30P Apple ProRes internal recording.” It can internally record 8K/30P video in 4:2:2 10-bit color, either with an SD or Cfexpress Type B memory card.

Other features include a Fujifilm X-mount, 5.76 million dot electronic viewfinder, 3-inch vary-angle touch screen color LCD monitor, and CFexpress Type B card/SD memory card slots.

Let’s dive in.

1 fuji
2 fuji

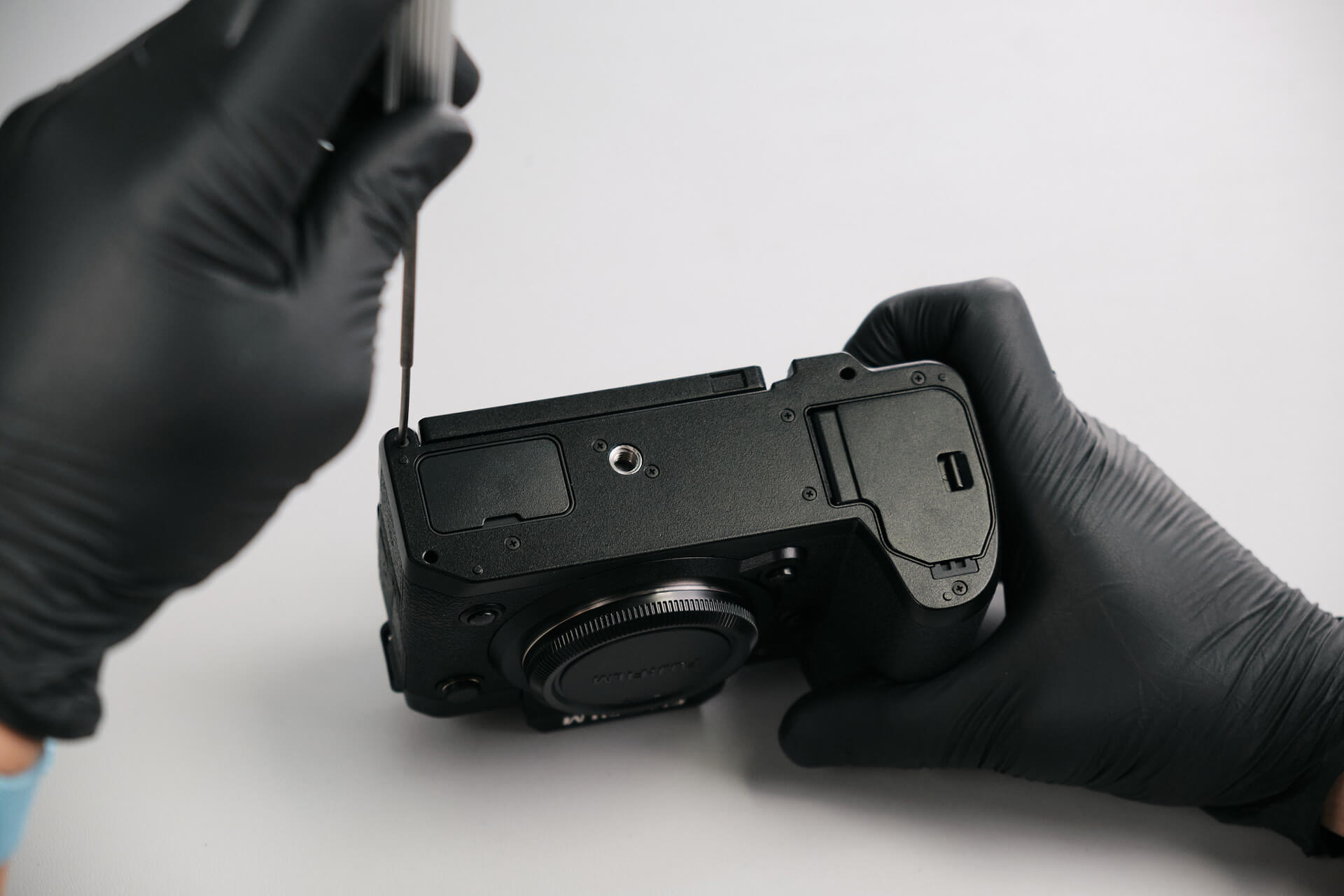

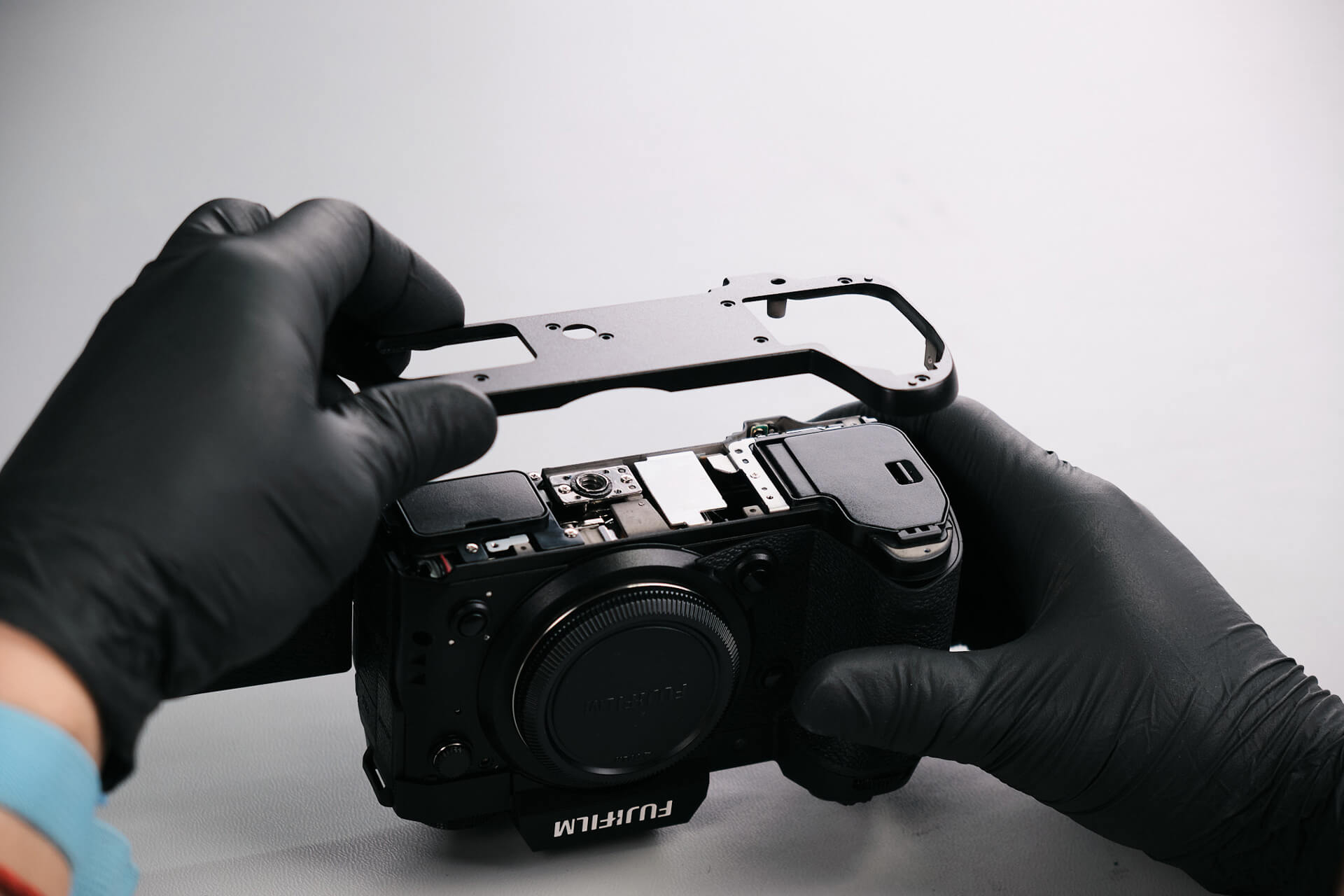

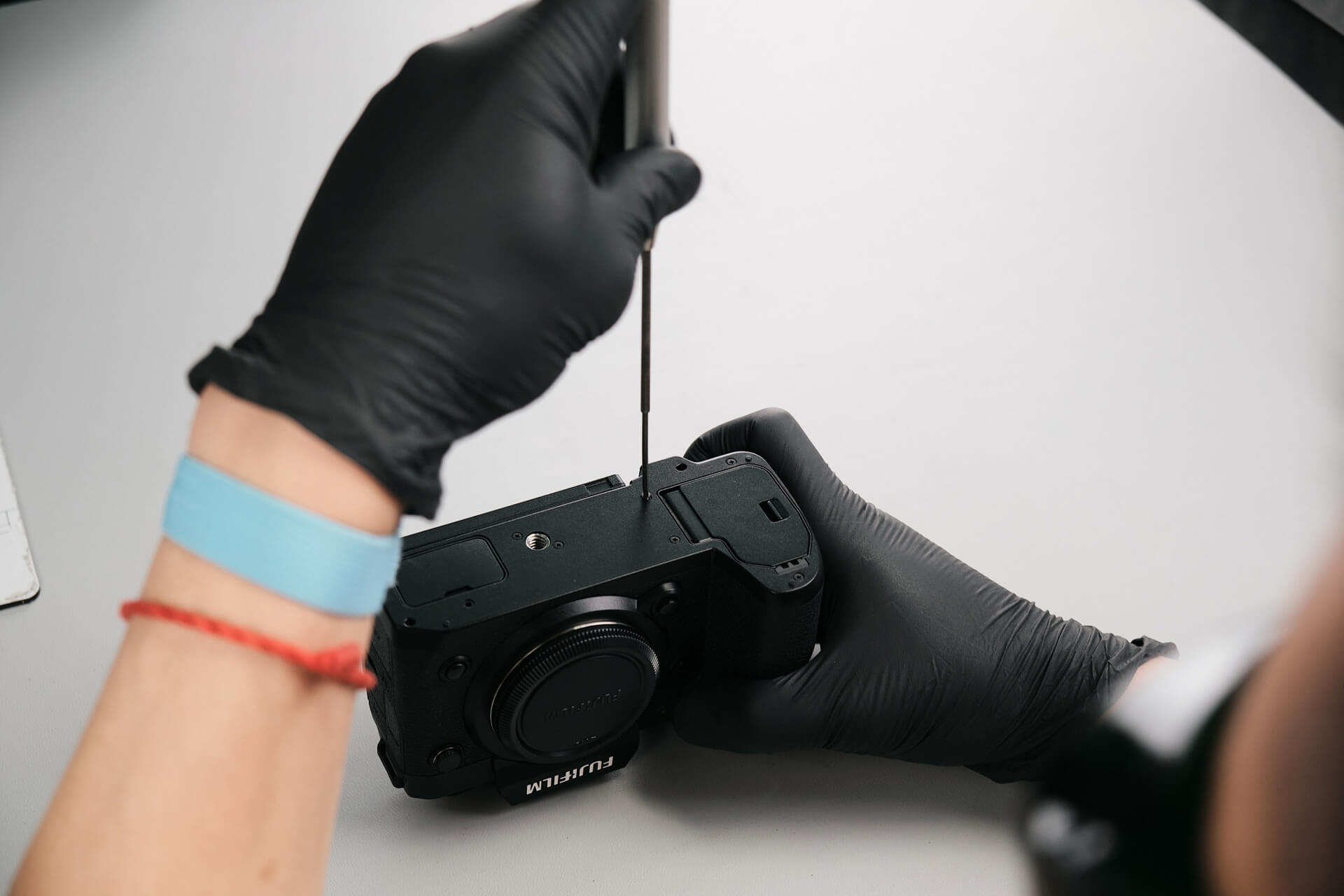

First, we targeted the camera’s baseplate and removed eight screws. The baseplate is usually the first access point to get inside the camera.

3 fuji

On the port side of the camera, we only found one screw by the battery port. The other ports didn’t have any screws underneath them.

4 fuji
5 fuji

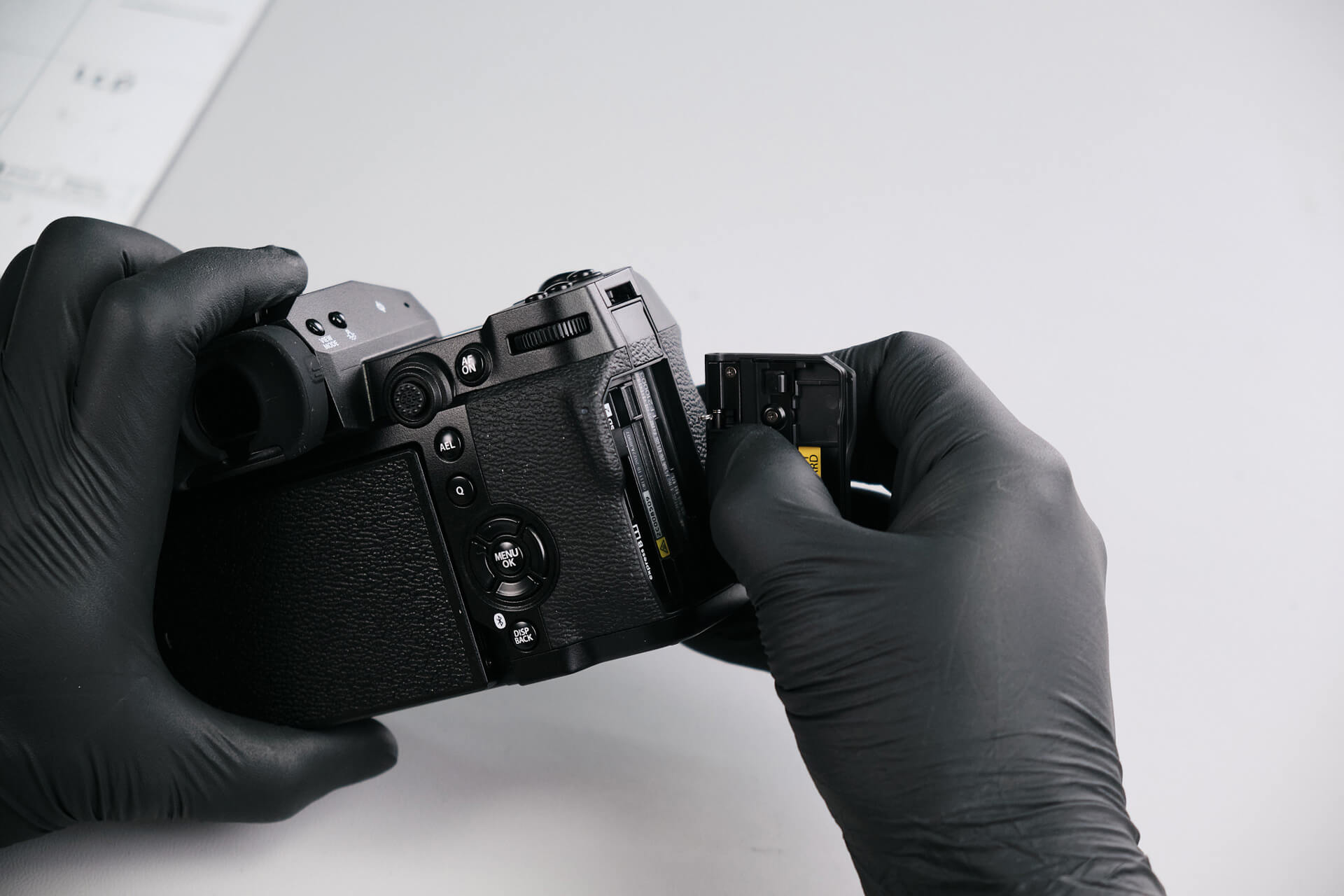

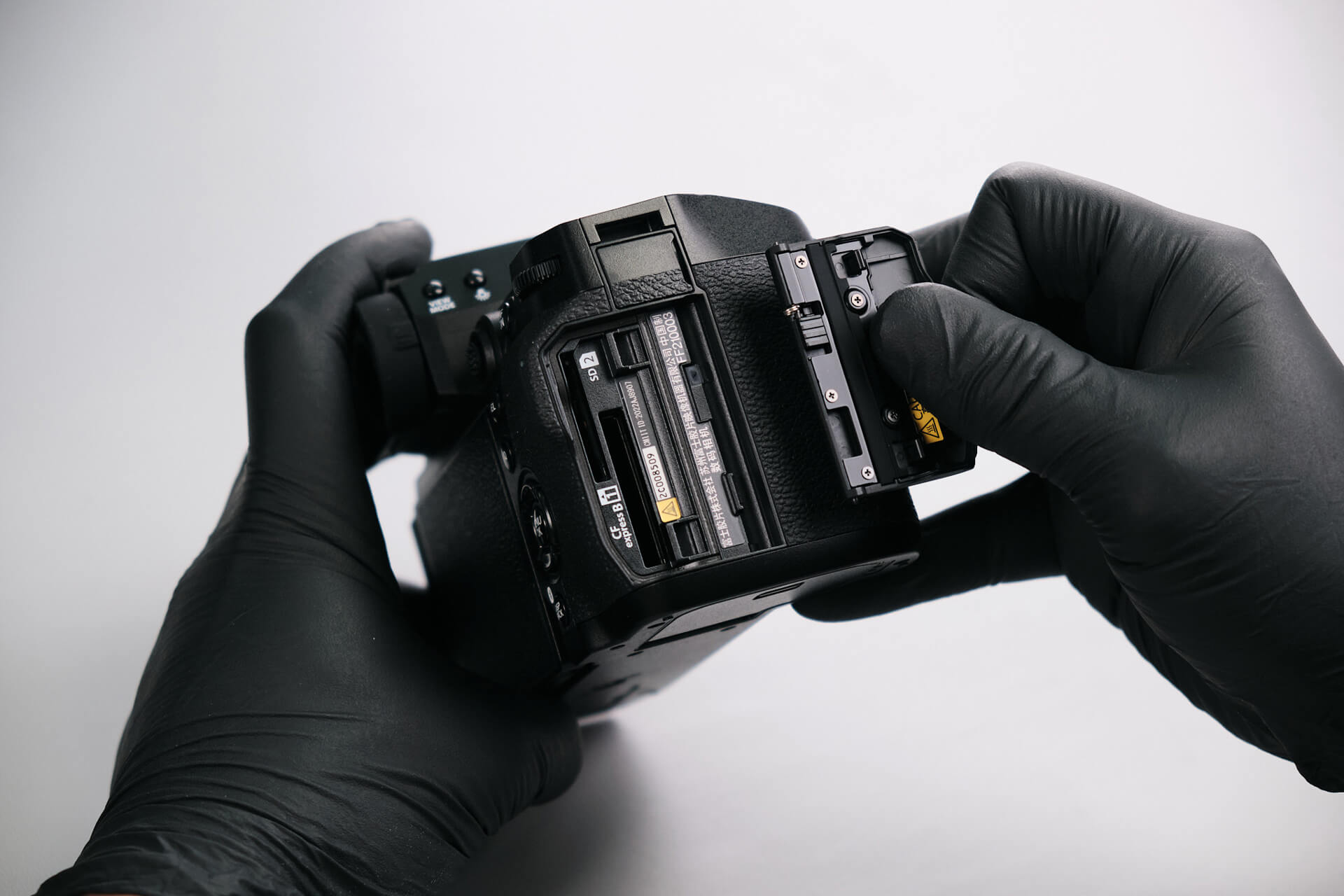

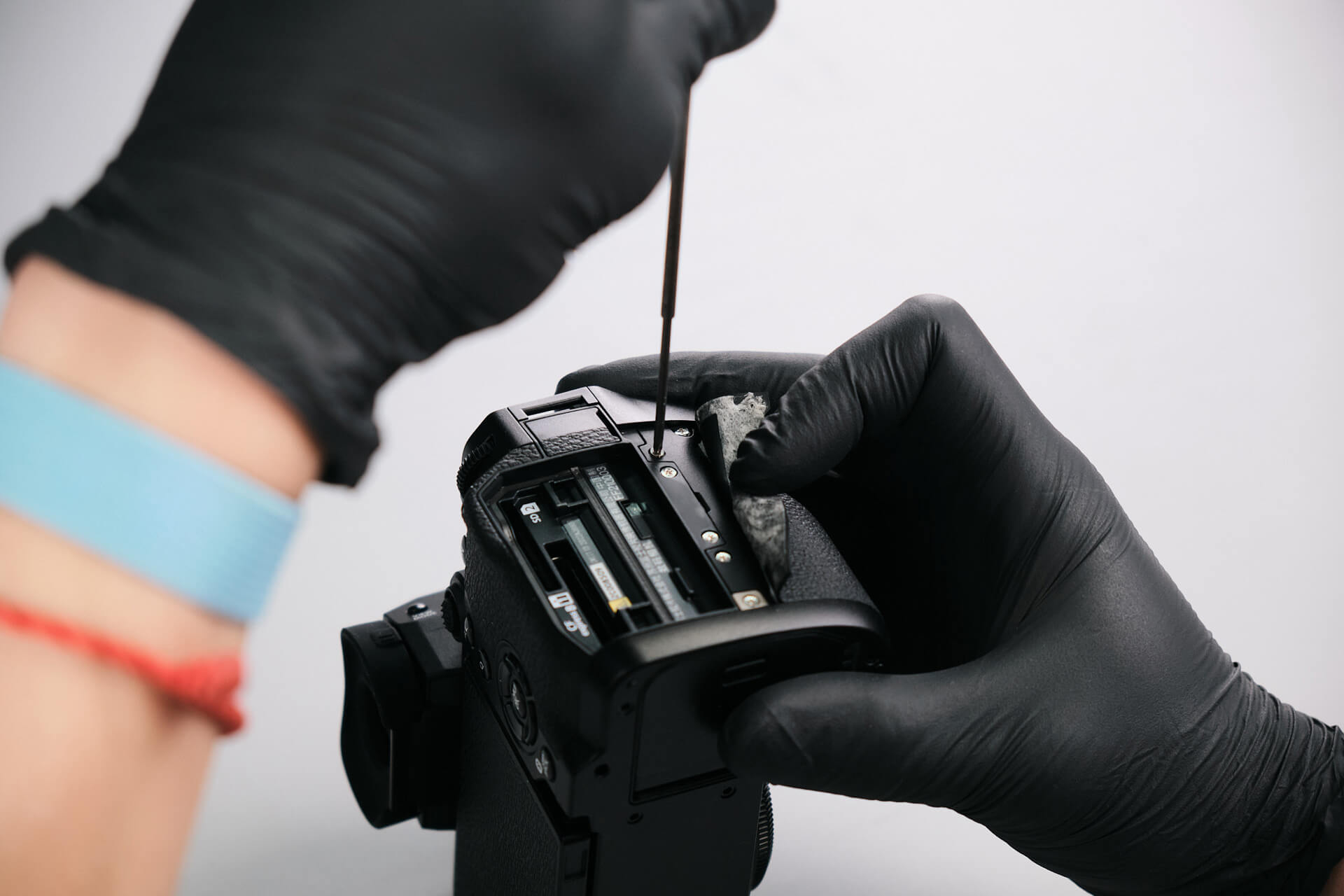

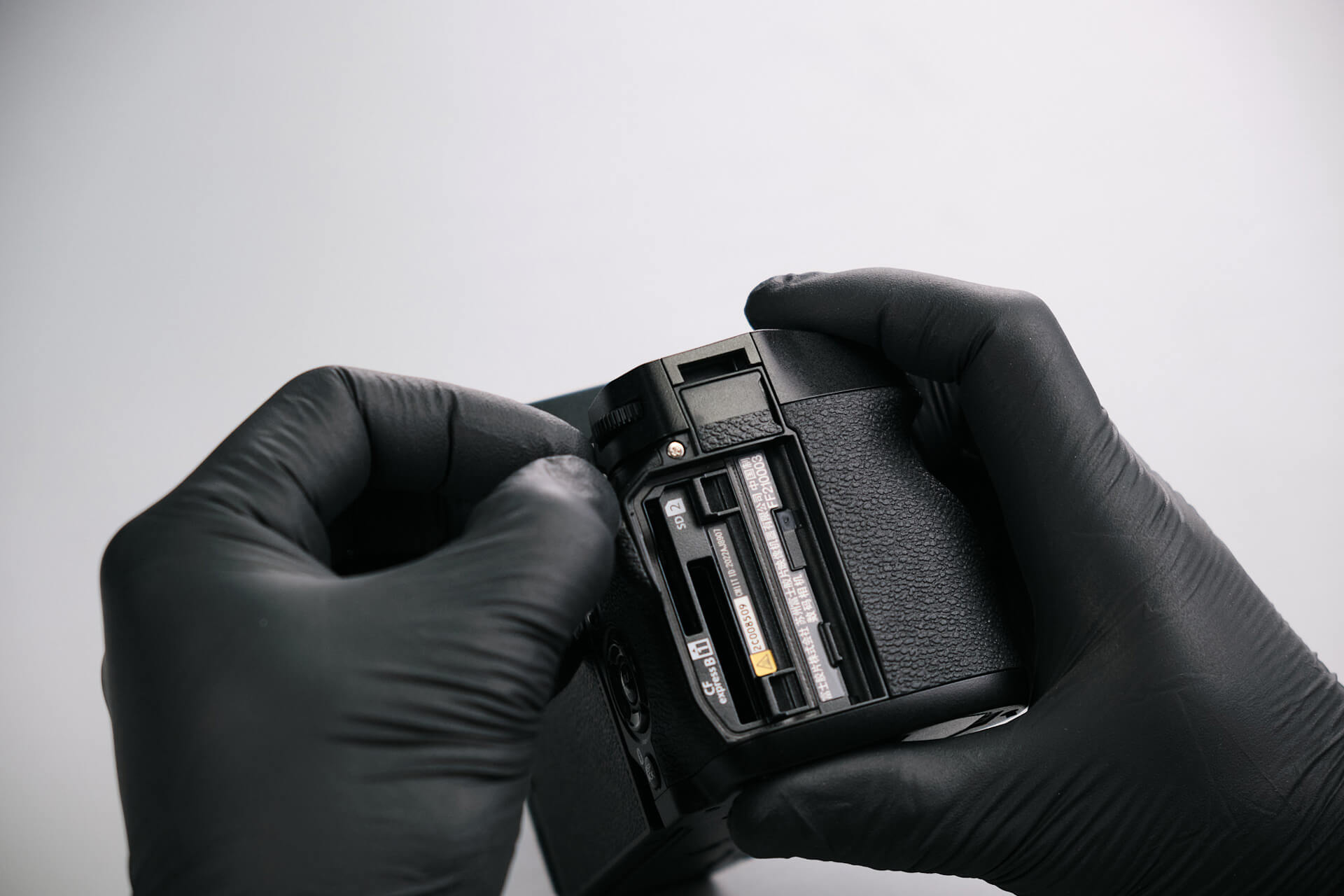

We removed the memory card door to access other screws. Typically, there are screws to remove there, but the X-H2 didn’t have any.

6 fuji
7 fuji

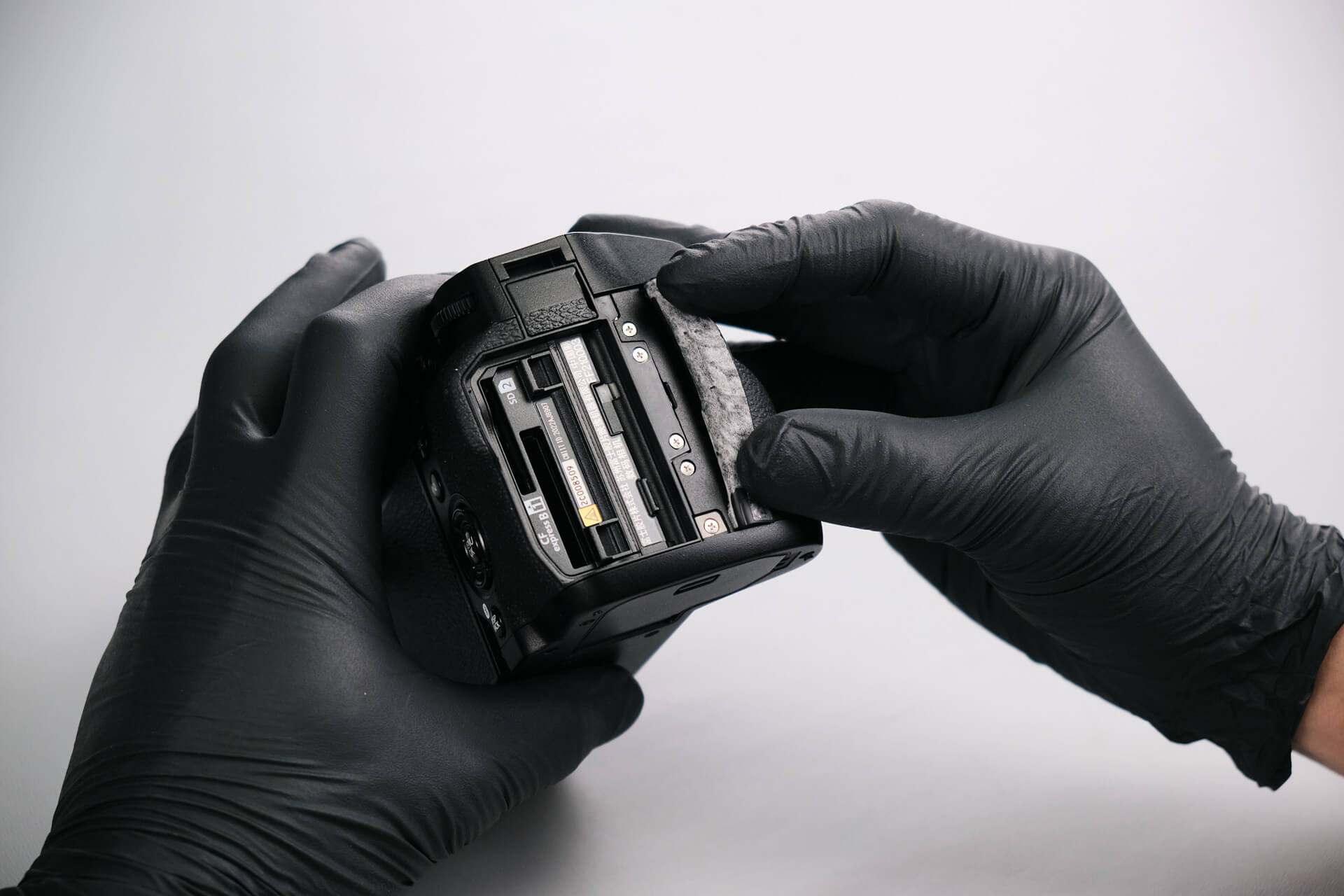

While there weren’t any screws under the memory card door, we found five screws under the rubber grip after peeling it back.

8 fuji

There was also a hidden screw further up the grip side of the camera.

9 fuji
10 fuji
11 fuji

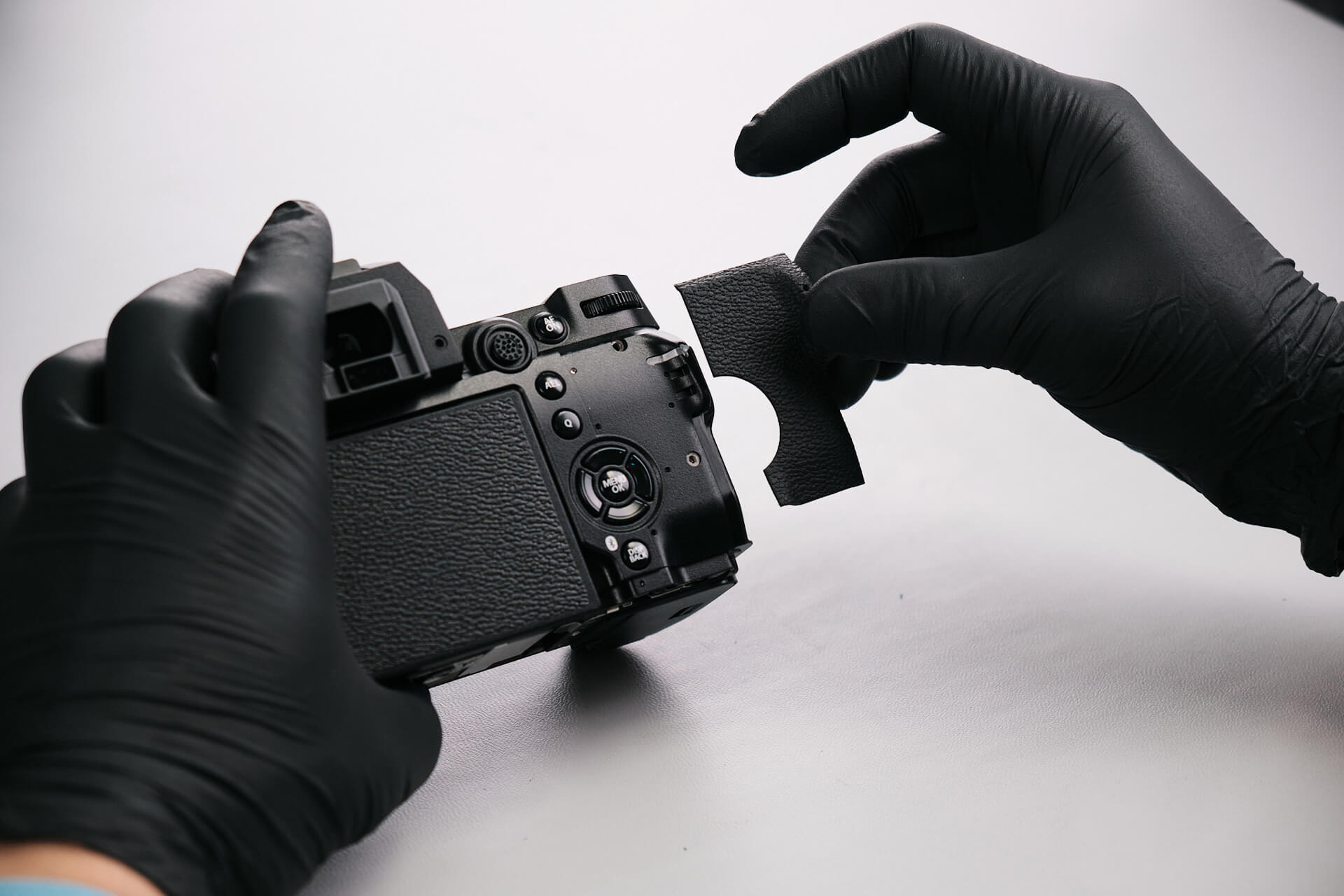

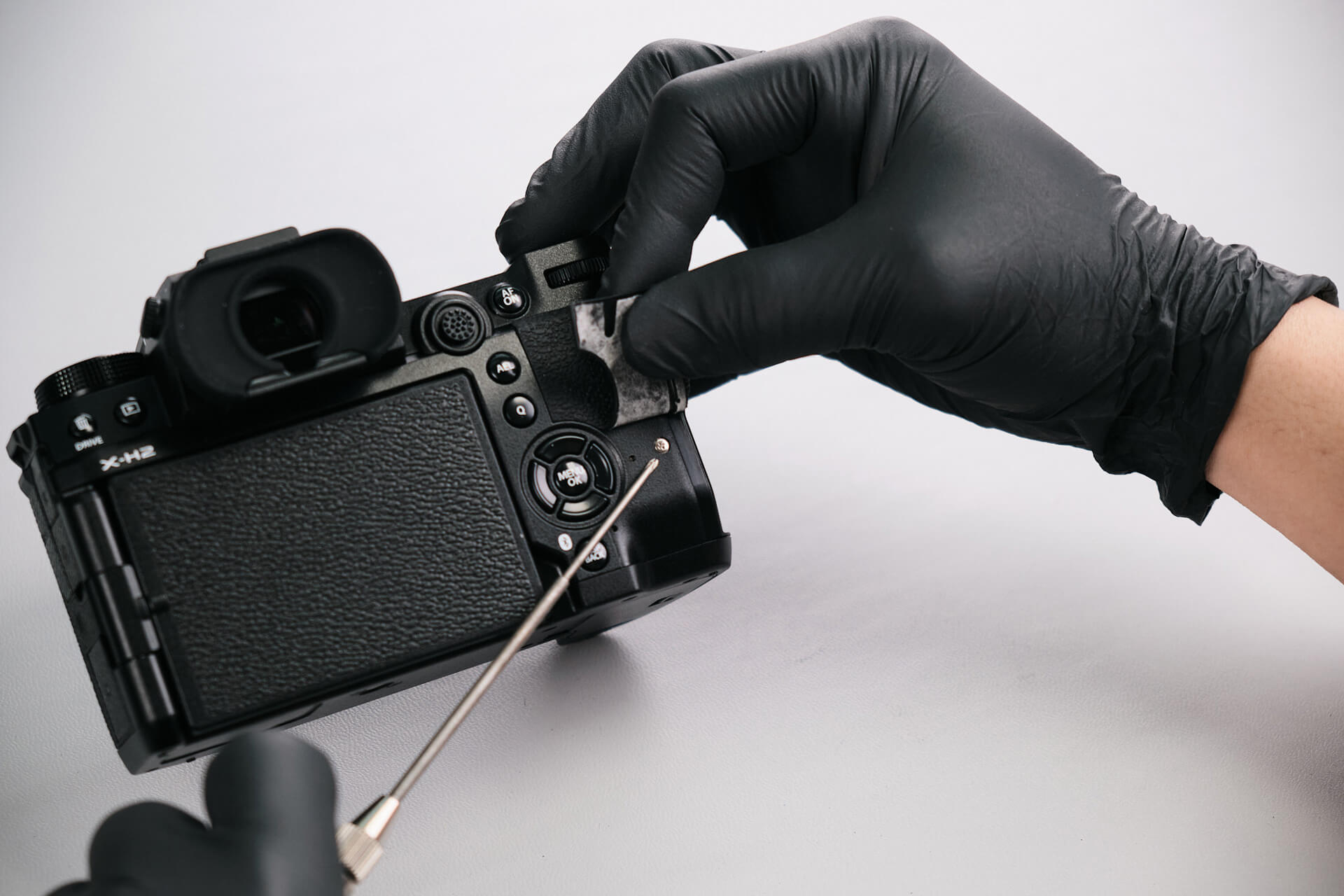

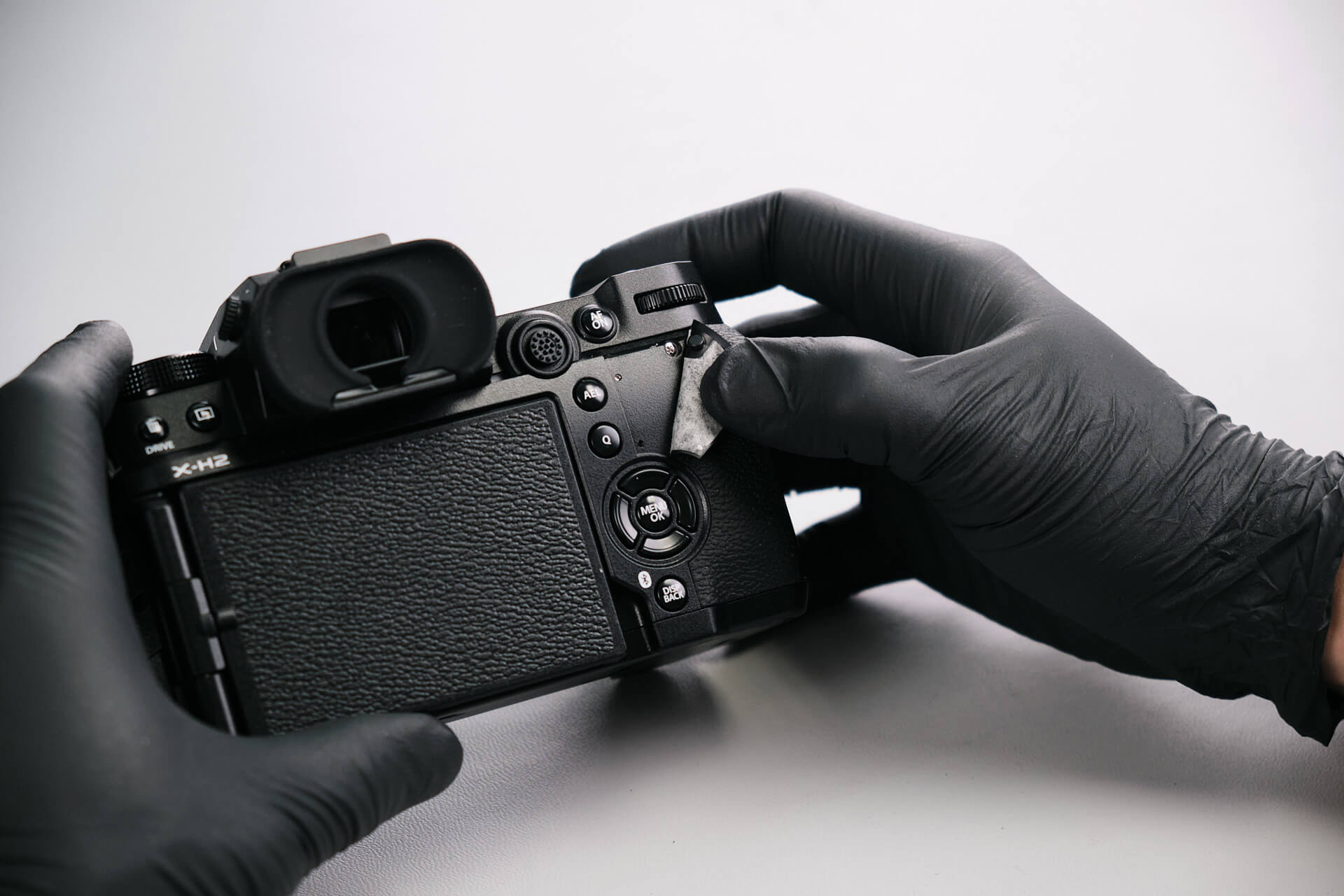

We peeled back more of the rubber grip on the rear panel to remove three silver screws.

12 fuji
14 fuji

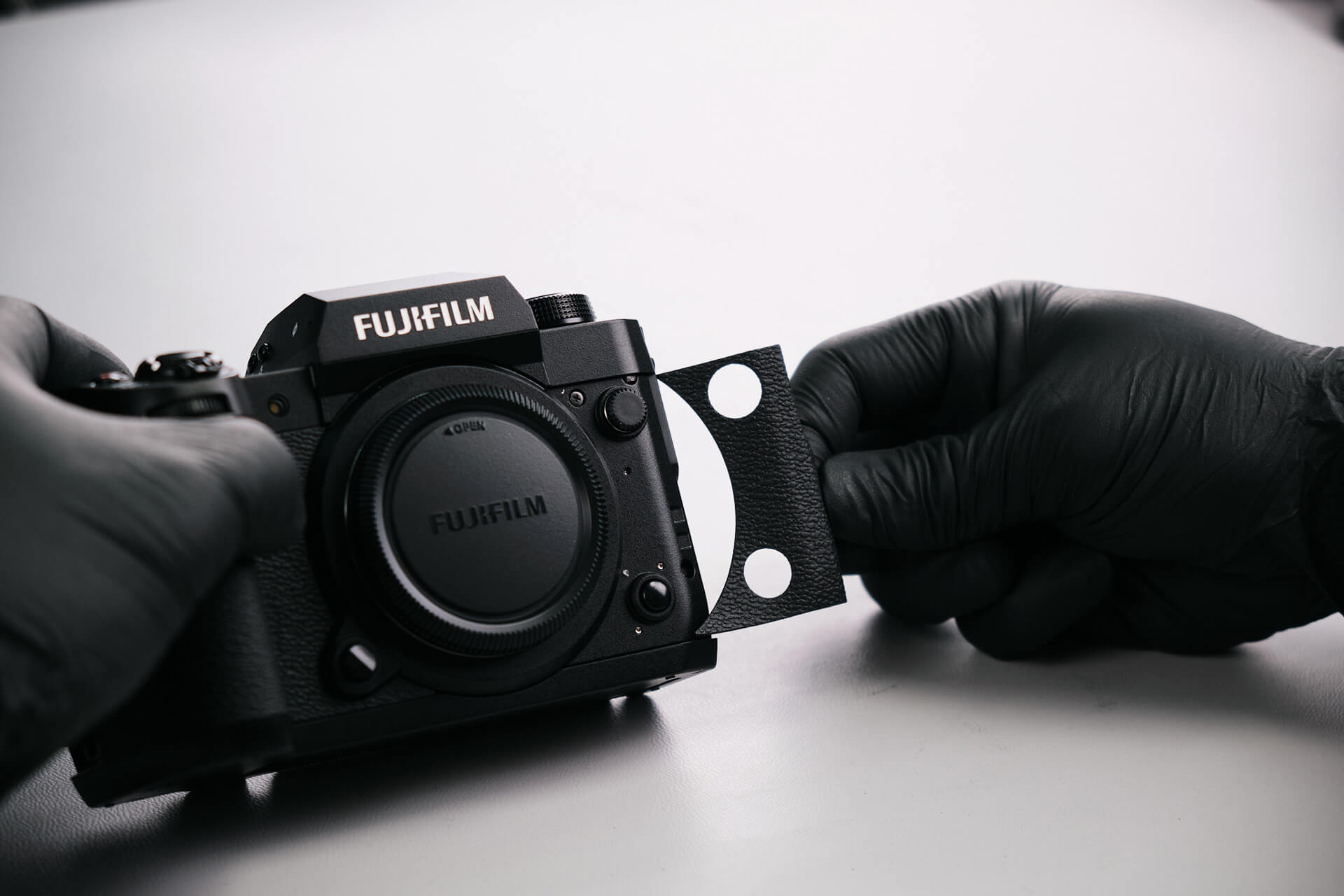

The front of the camera only had two silver screws underneath the rubber grip.

15 fuji
15.1 fuji
16 fuji

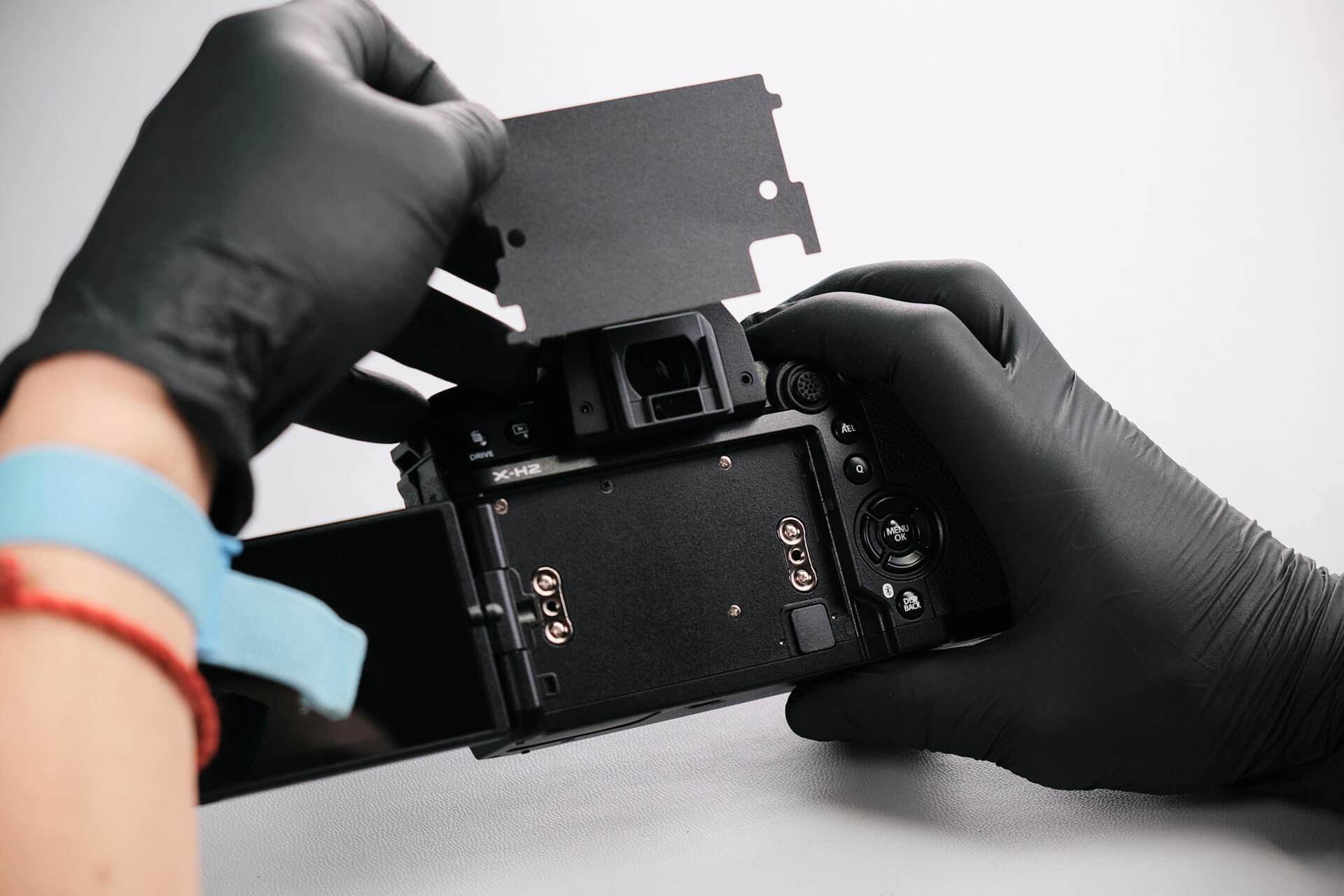

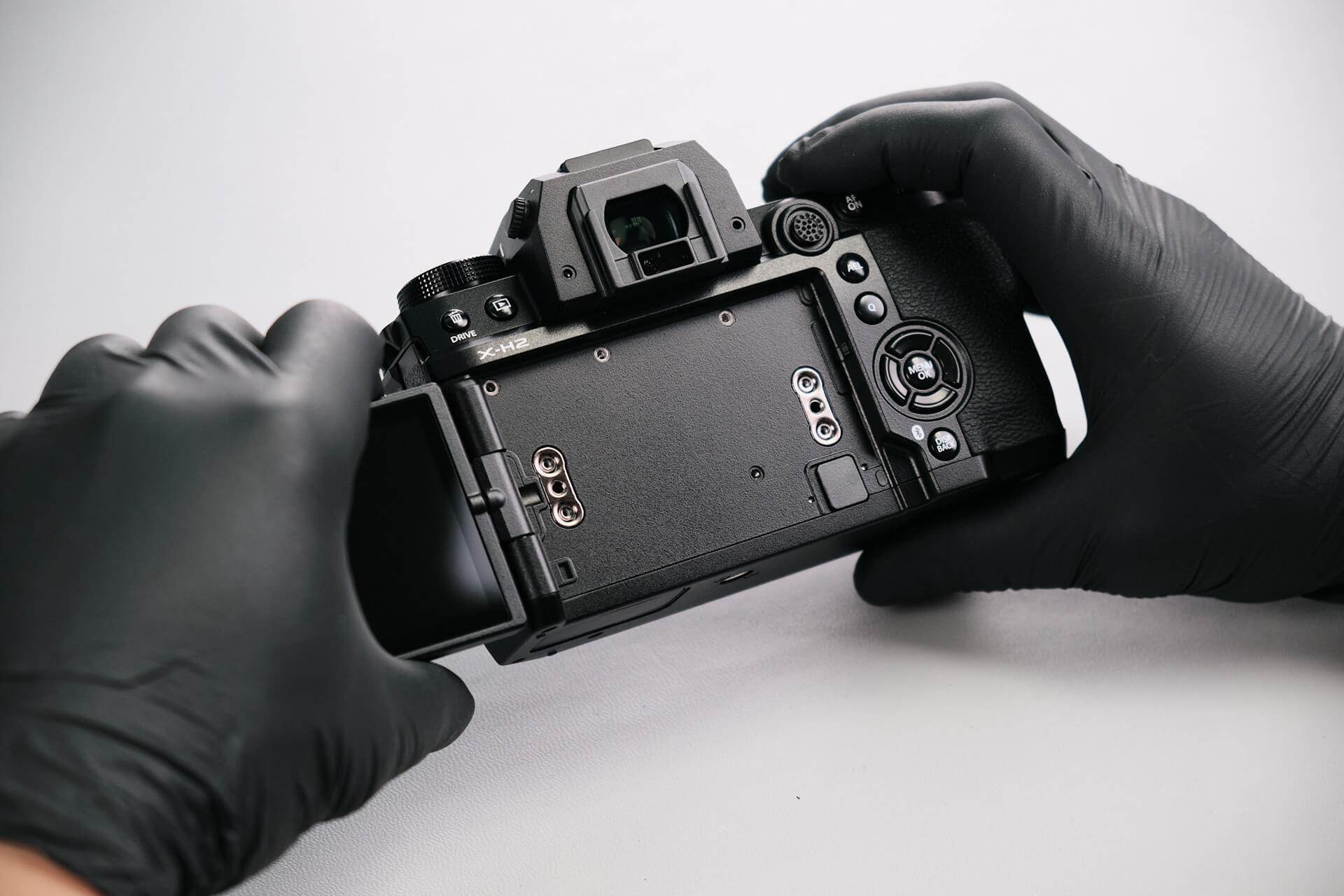

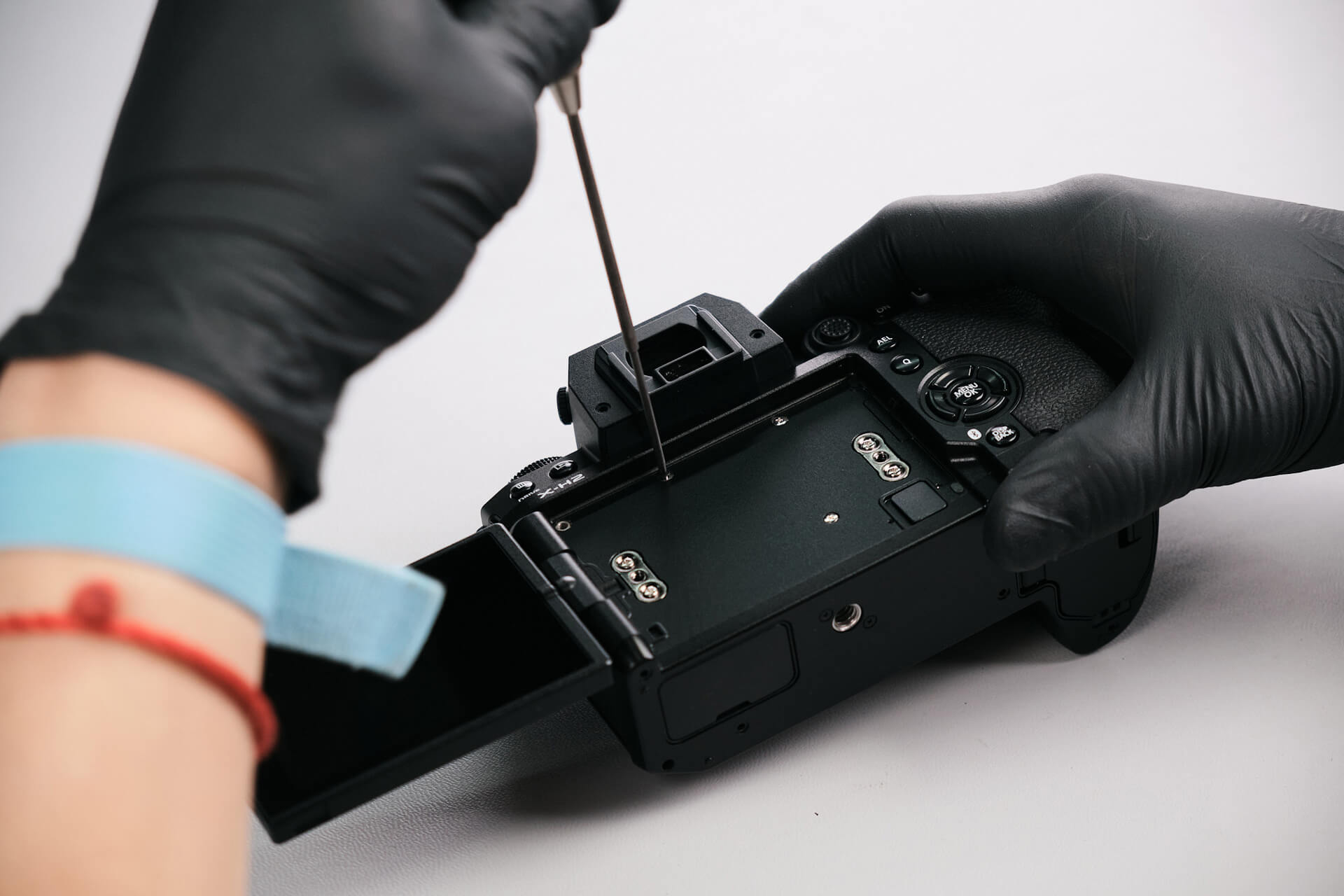

Interestingly, the back of the camera was covered with a thin plastic cover that almost seemed to be part of the camera. There were more screws under there. We also removed screws underneath the rubber padding of the viewfinder.

17 fuji
18 fuji

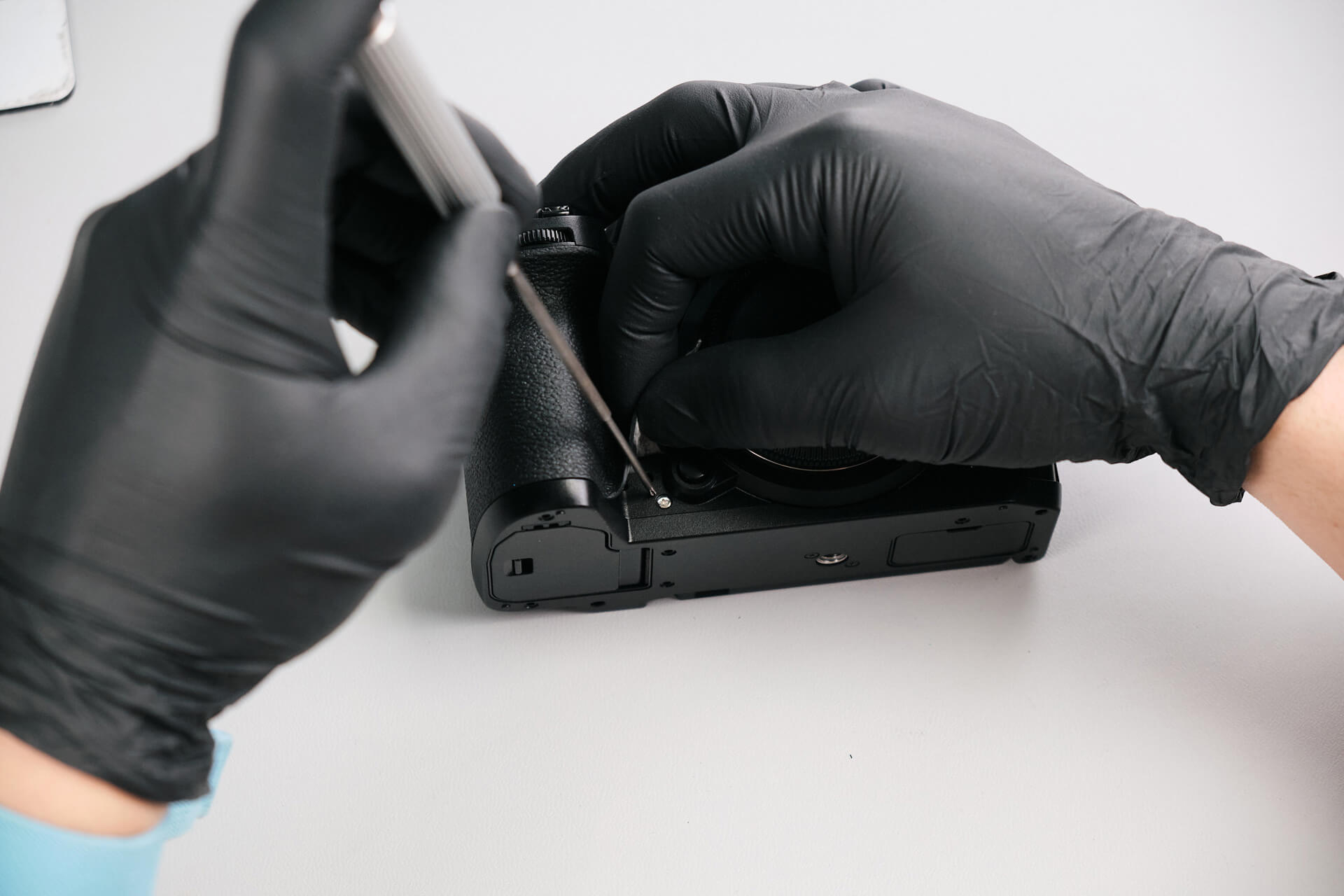

Next, we normally would be able to take off the rear panel and bottom cover entirely. However, it wasn’t coming off. Turns out there was a hidden screw under the rubber grip near the lens release button. Removing it let us remove the baseplate.

19 fuji
20 fuji

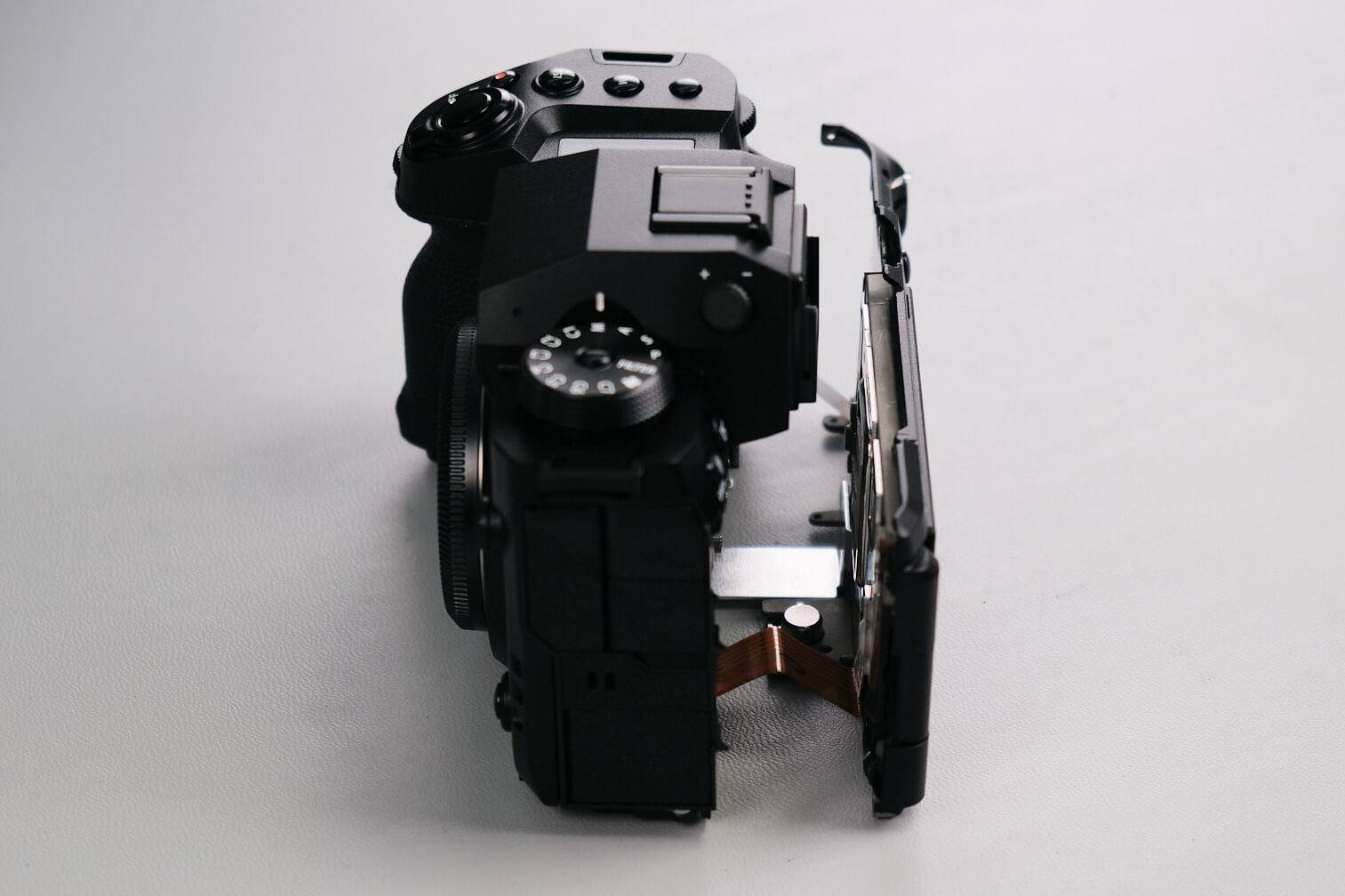

The rear panel was still attached. Taking off the rubber grip allowed us to detach the rear panel.

21 fuji
23 fuji
22 fuji
24 fuji

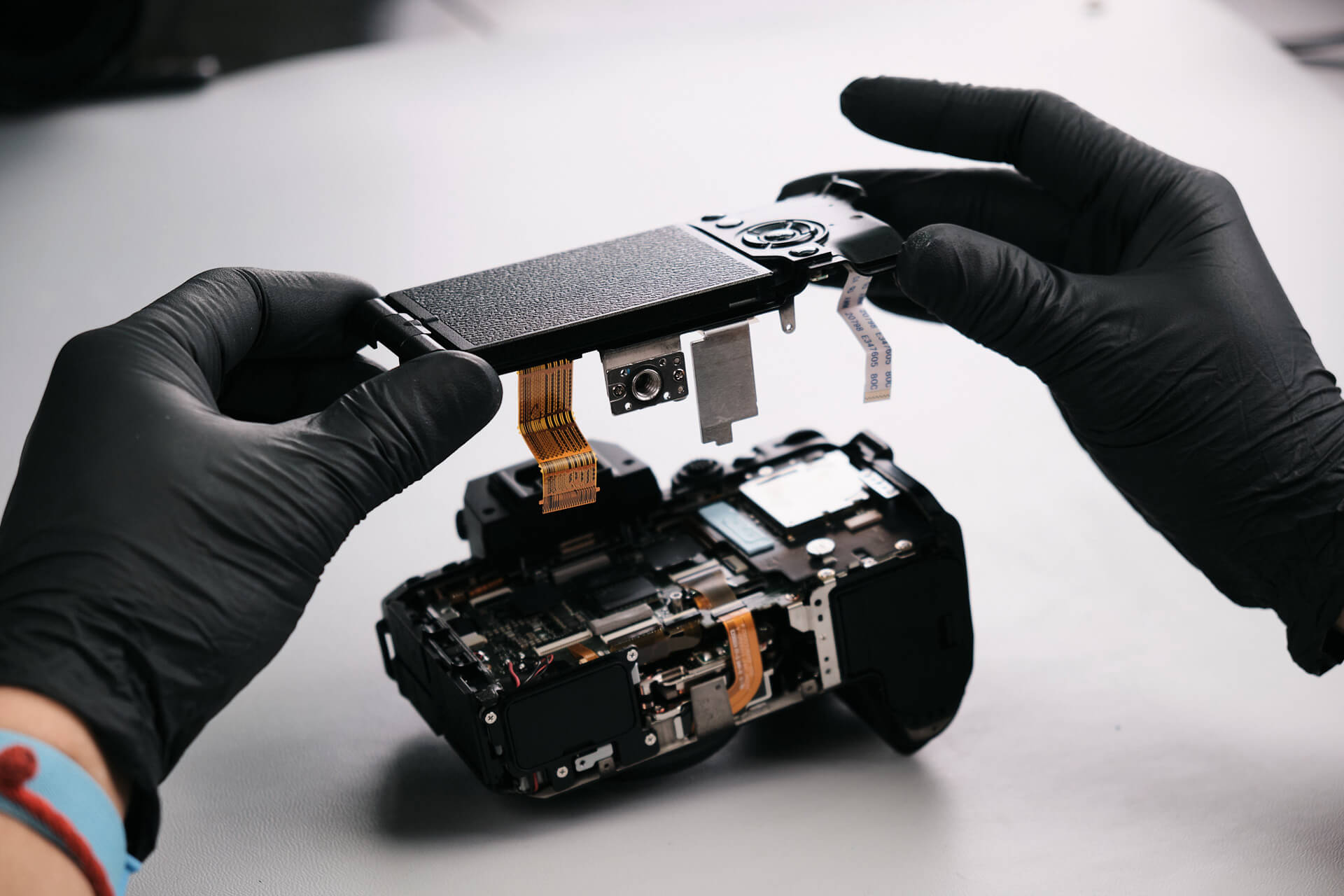

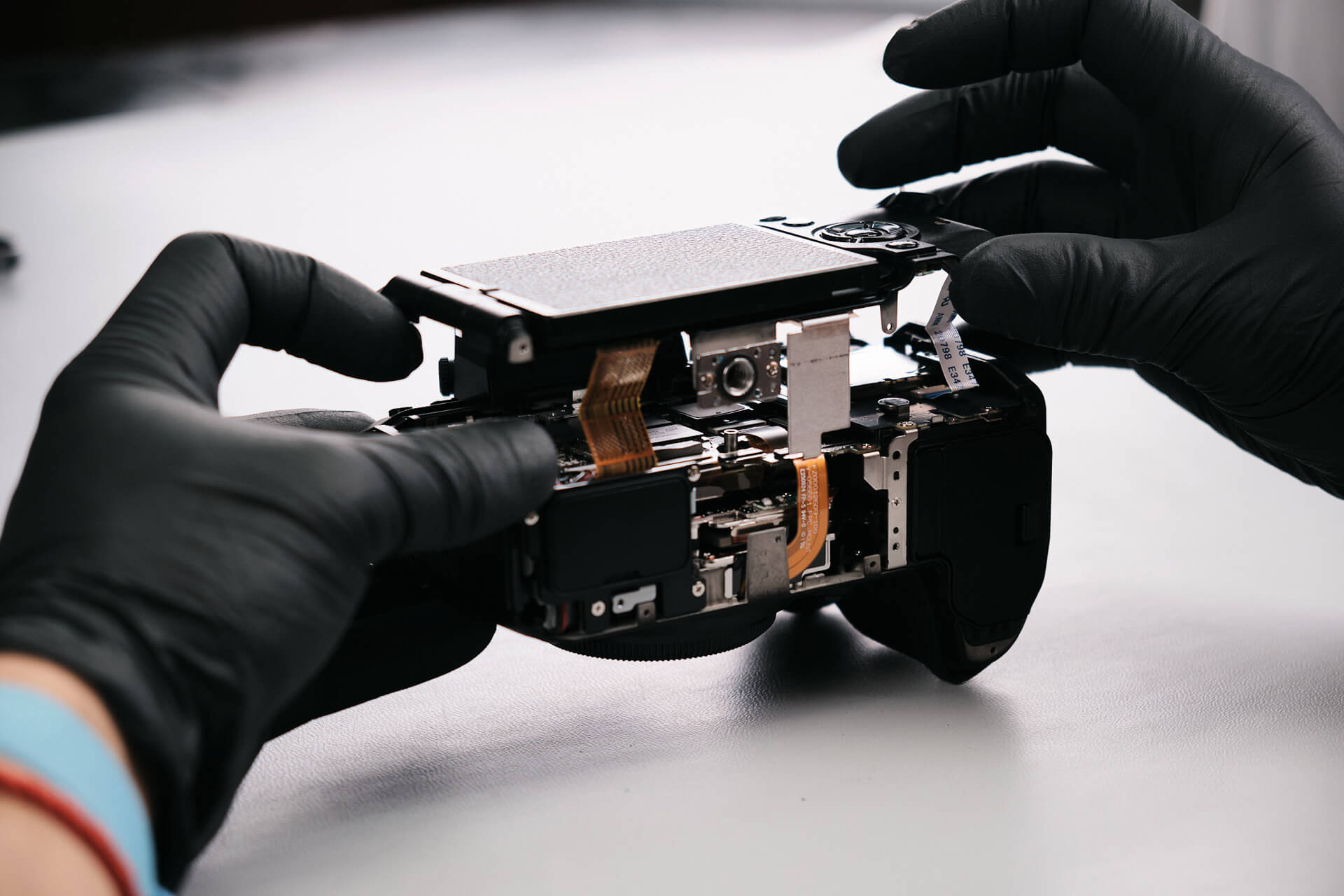

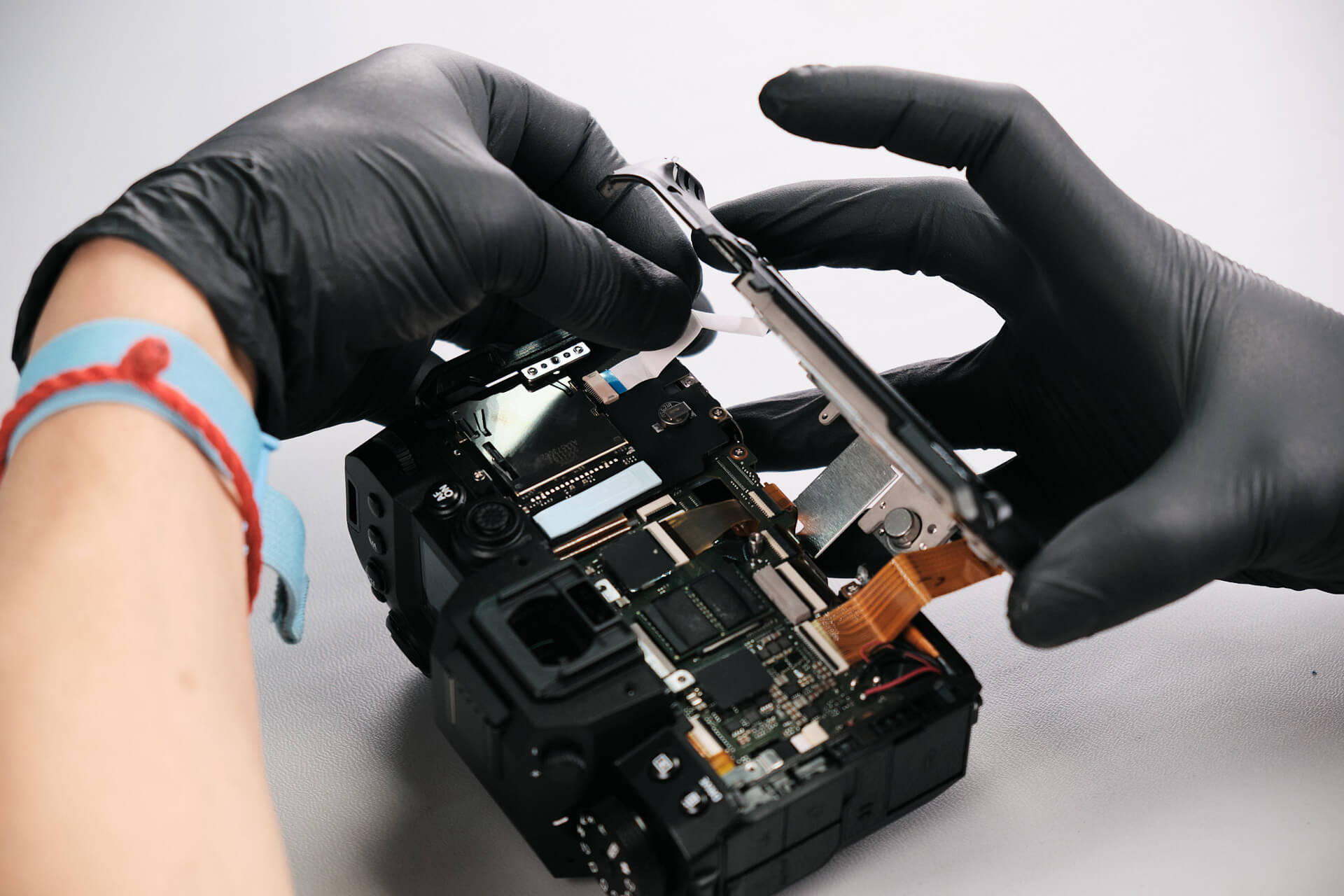

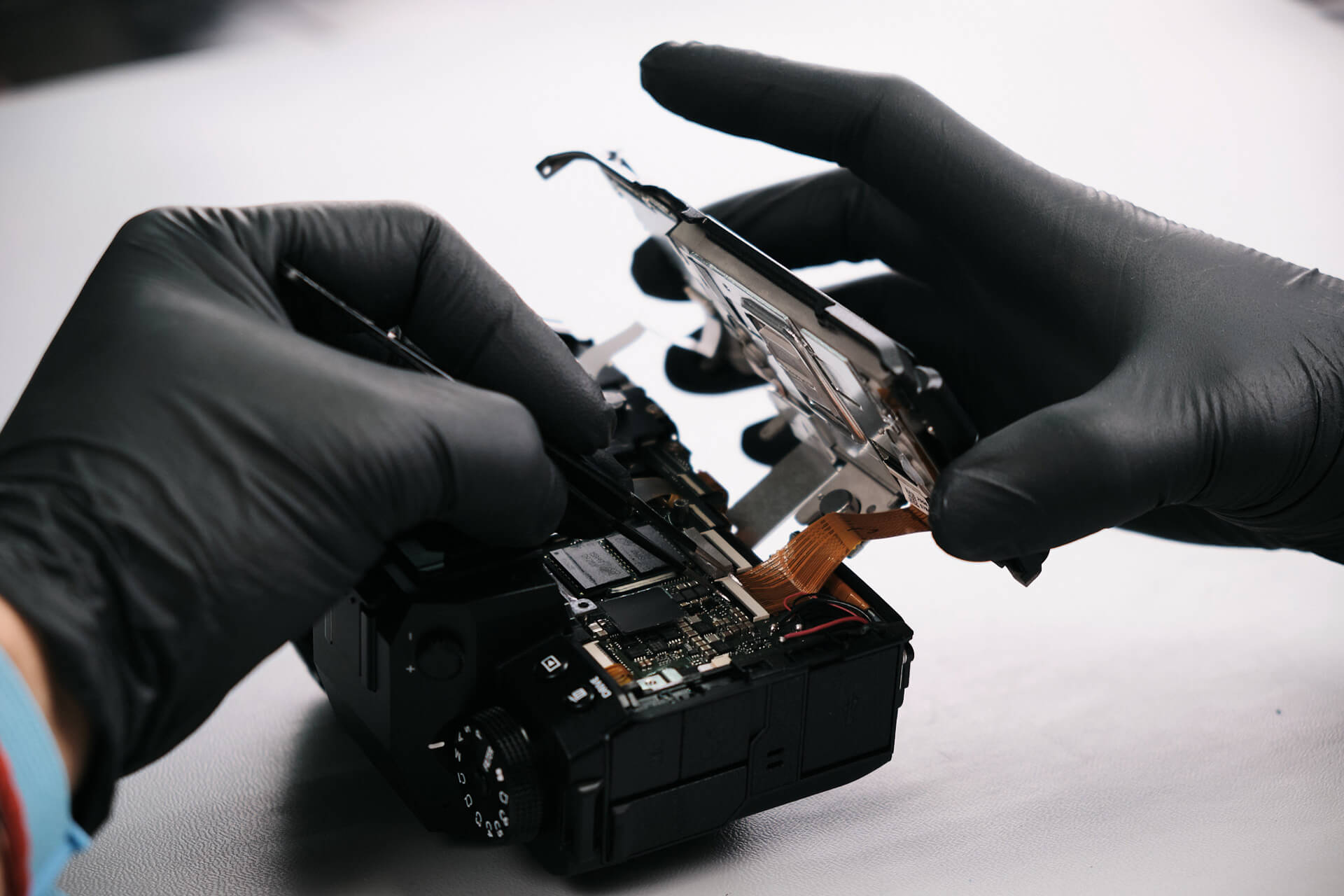

Once the rear panel was detached, we had to unlatch the ribbon cable that connected it to the circuit board.

25 fuji

We removed a black screw above the HDMI port.

26 fuji
27 fuji

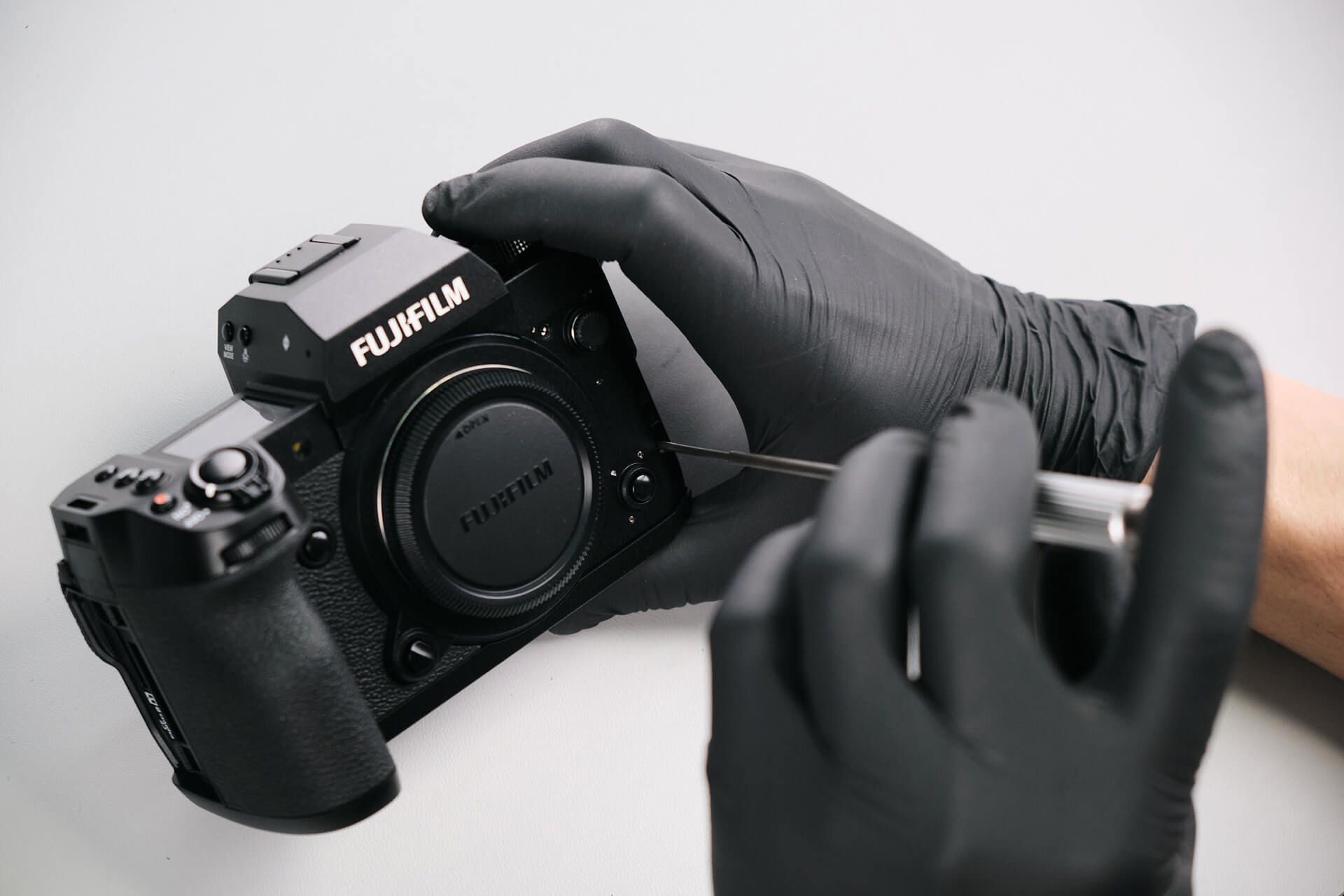

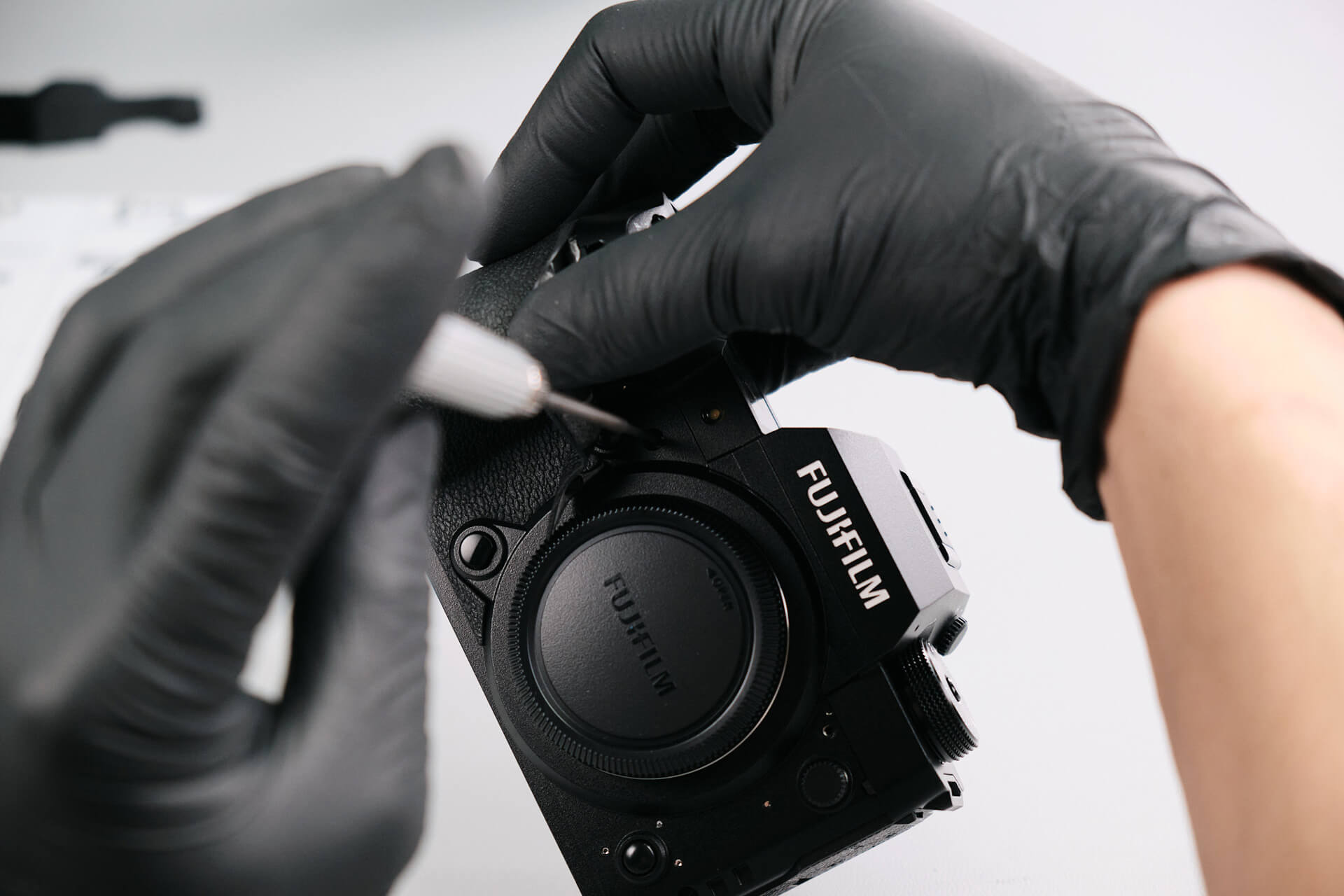

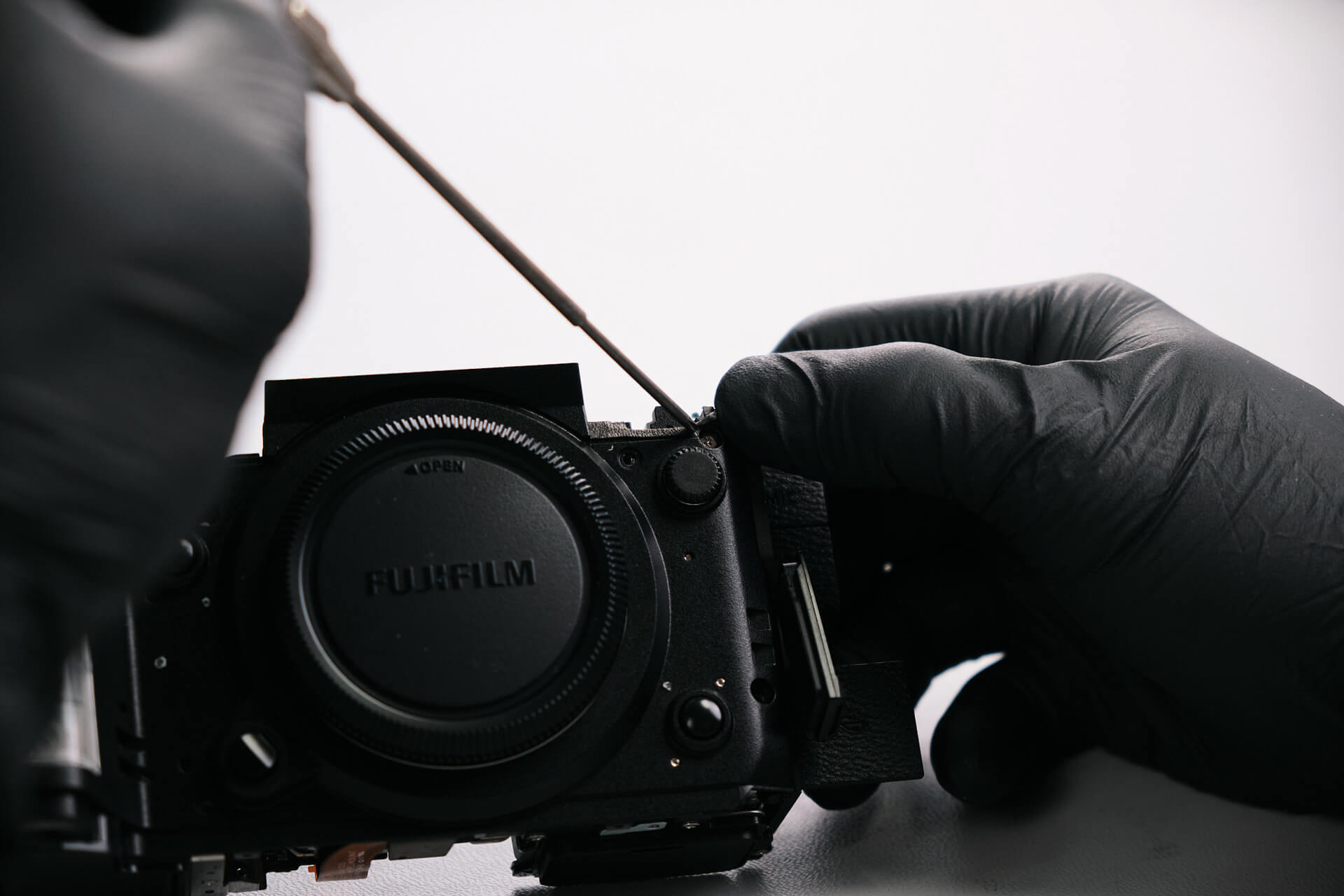

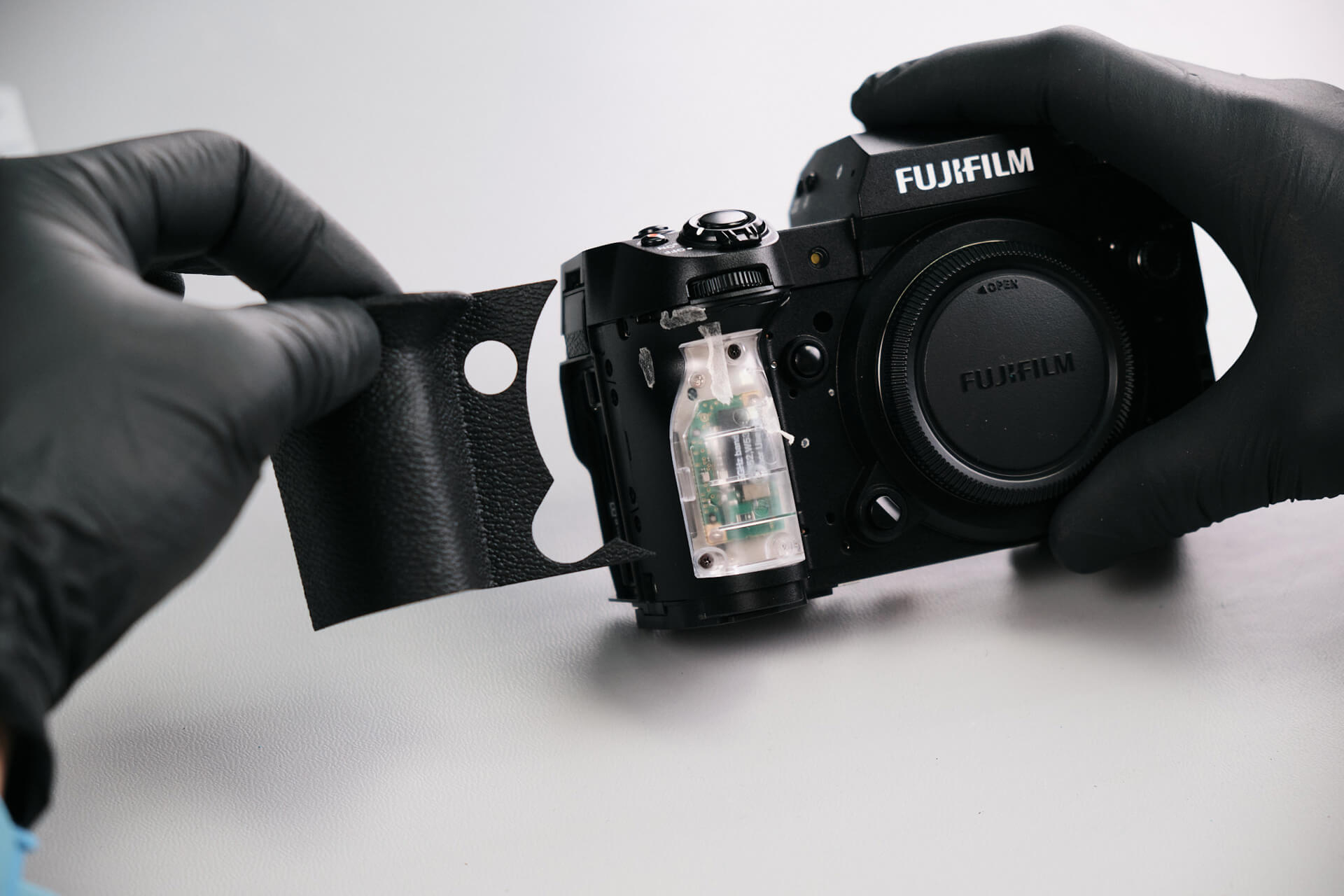

The top panel didn’t come off despite removing the noticeable screws, so we peeled back more of the rubber grip, revealing one silver screw.

28 fuji
29 fuji

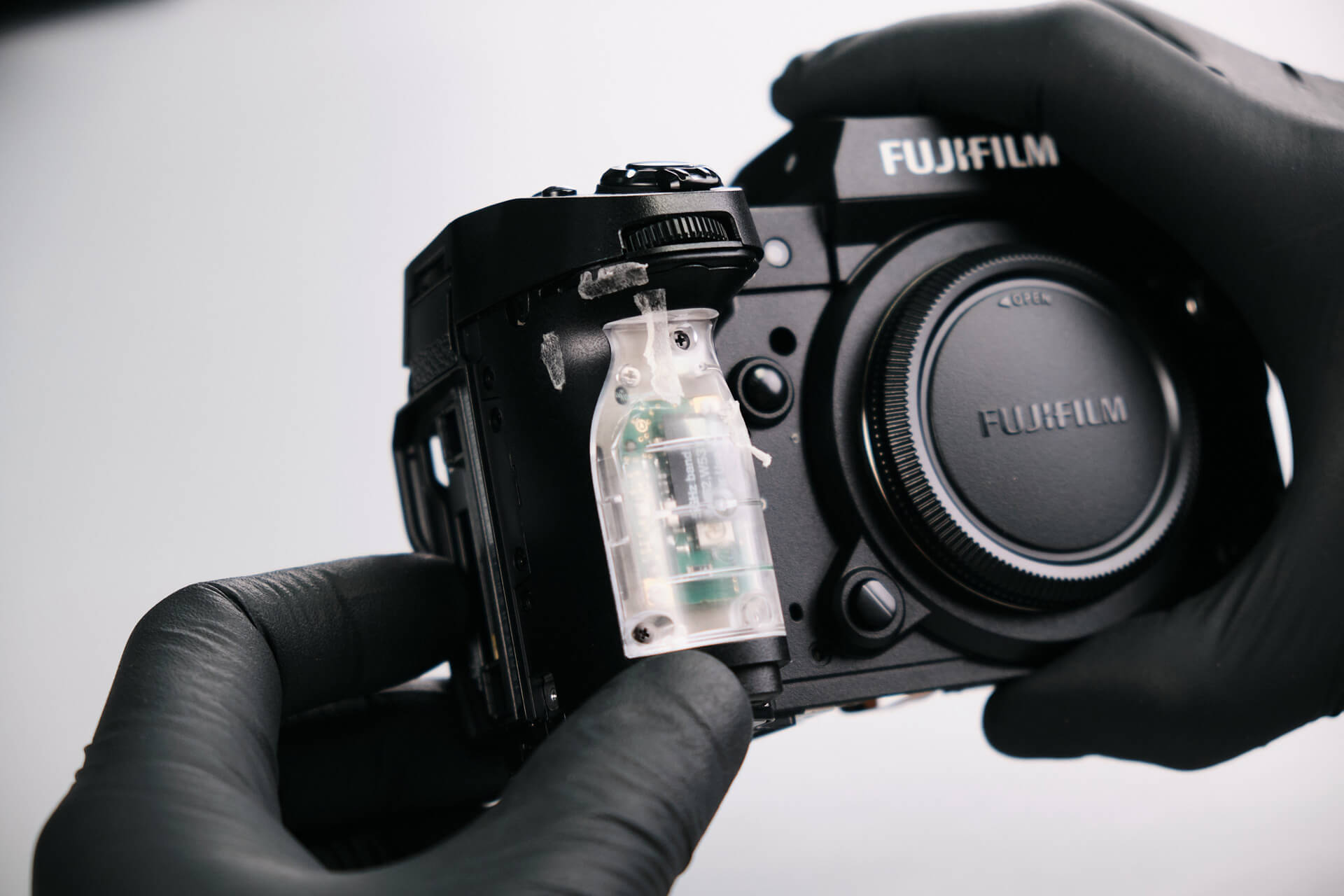

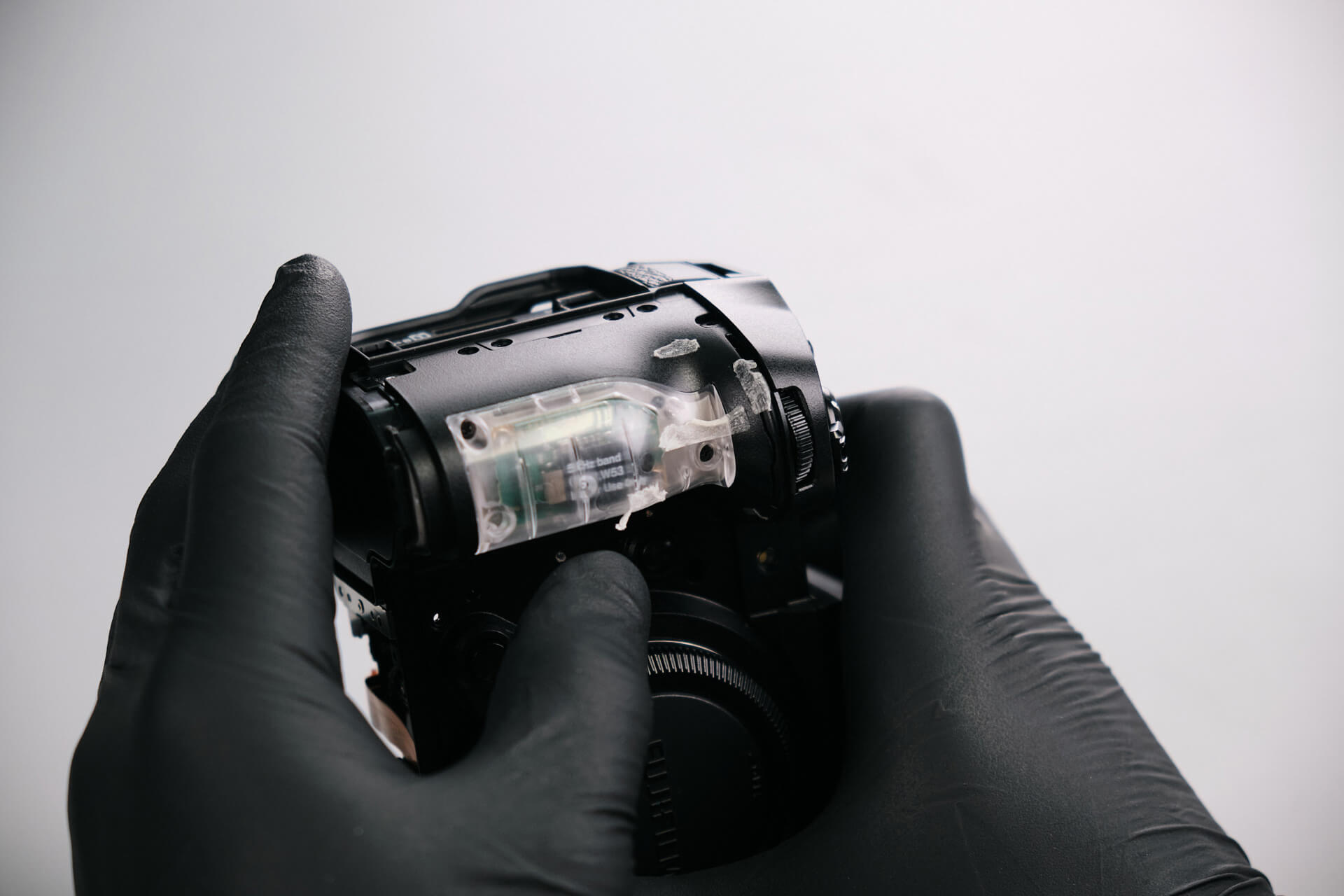

Interestingly, we discovered that the handle grip plastic is made from a different material than the rest of the body. Our guess is that it increases Bluetooth/Wifi connectivity to the receiver within the camera.

31 fuji
32 fuji
33 fuji

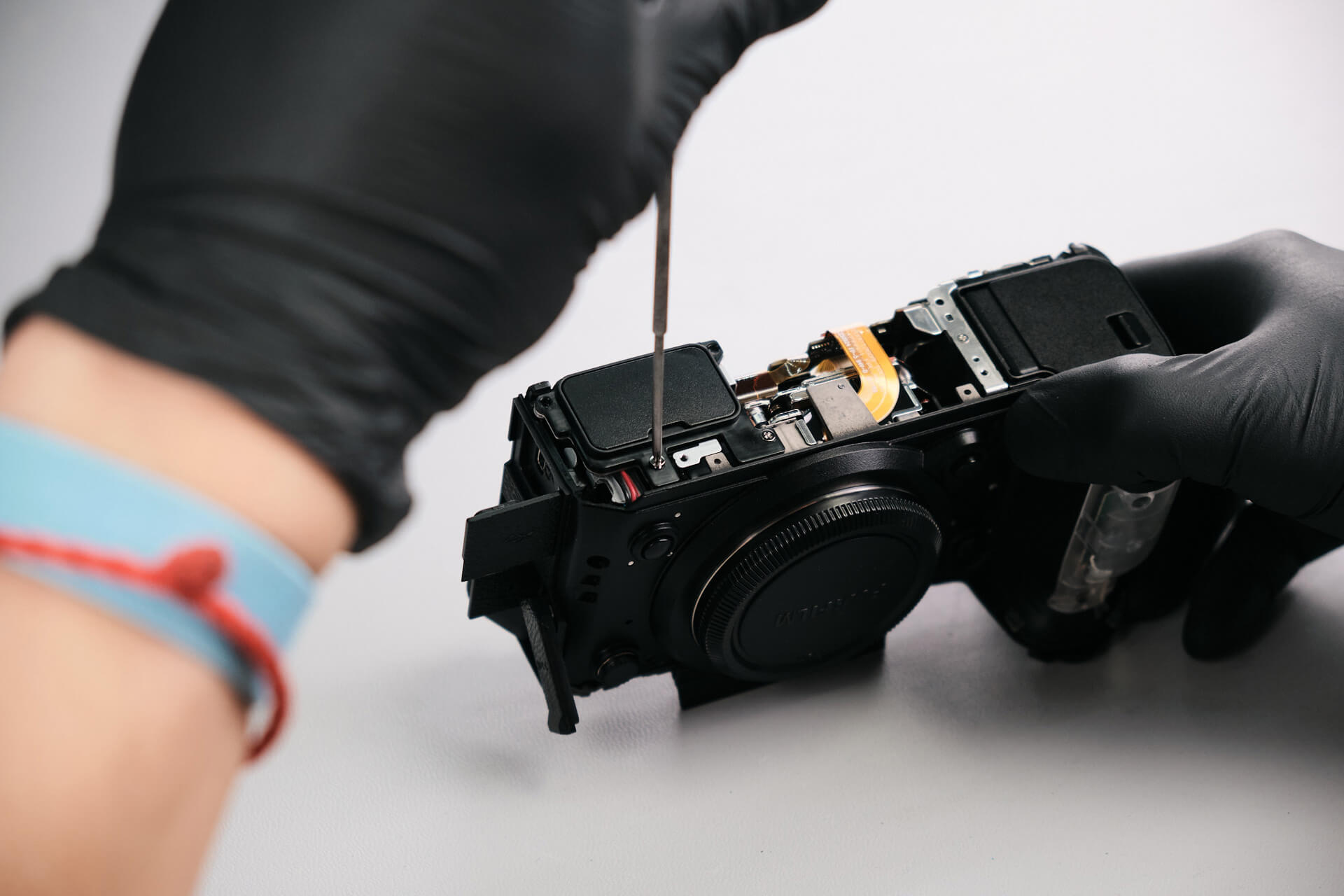

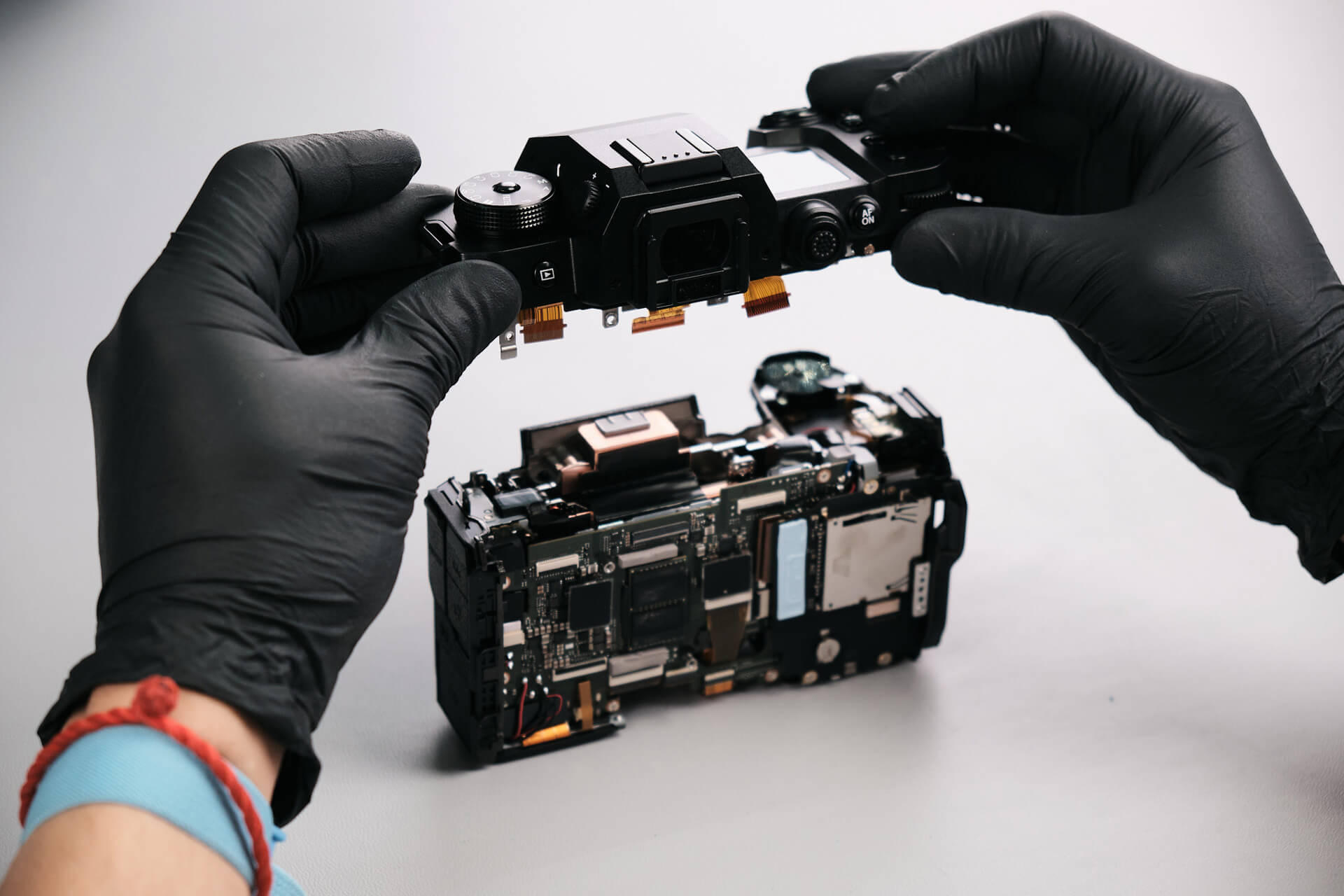

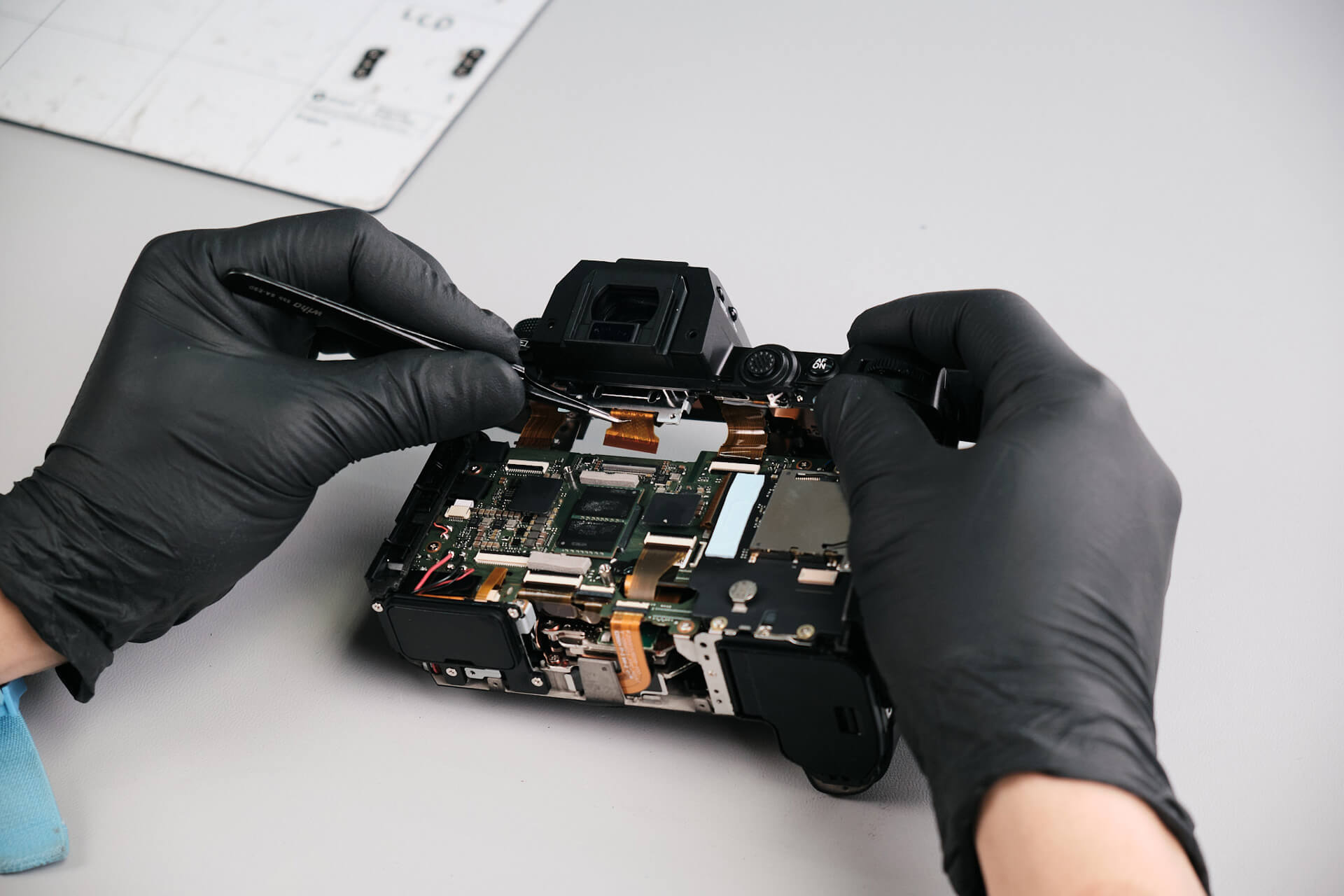

After removing the screws, we were able to remove the top panel. Three ribbon cables needed to be disconnected to fully remove it.

34 fuji

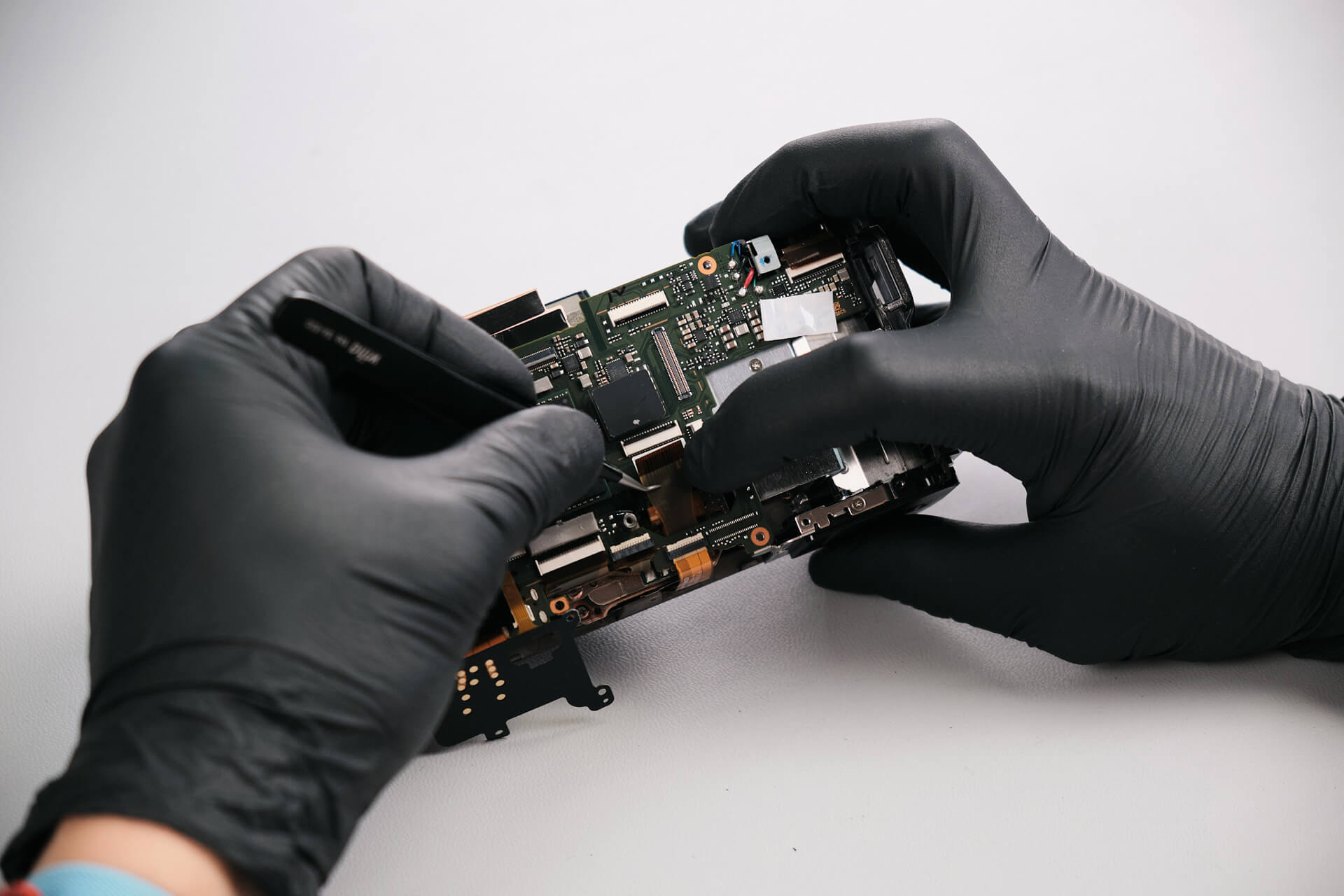

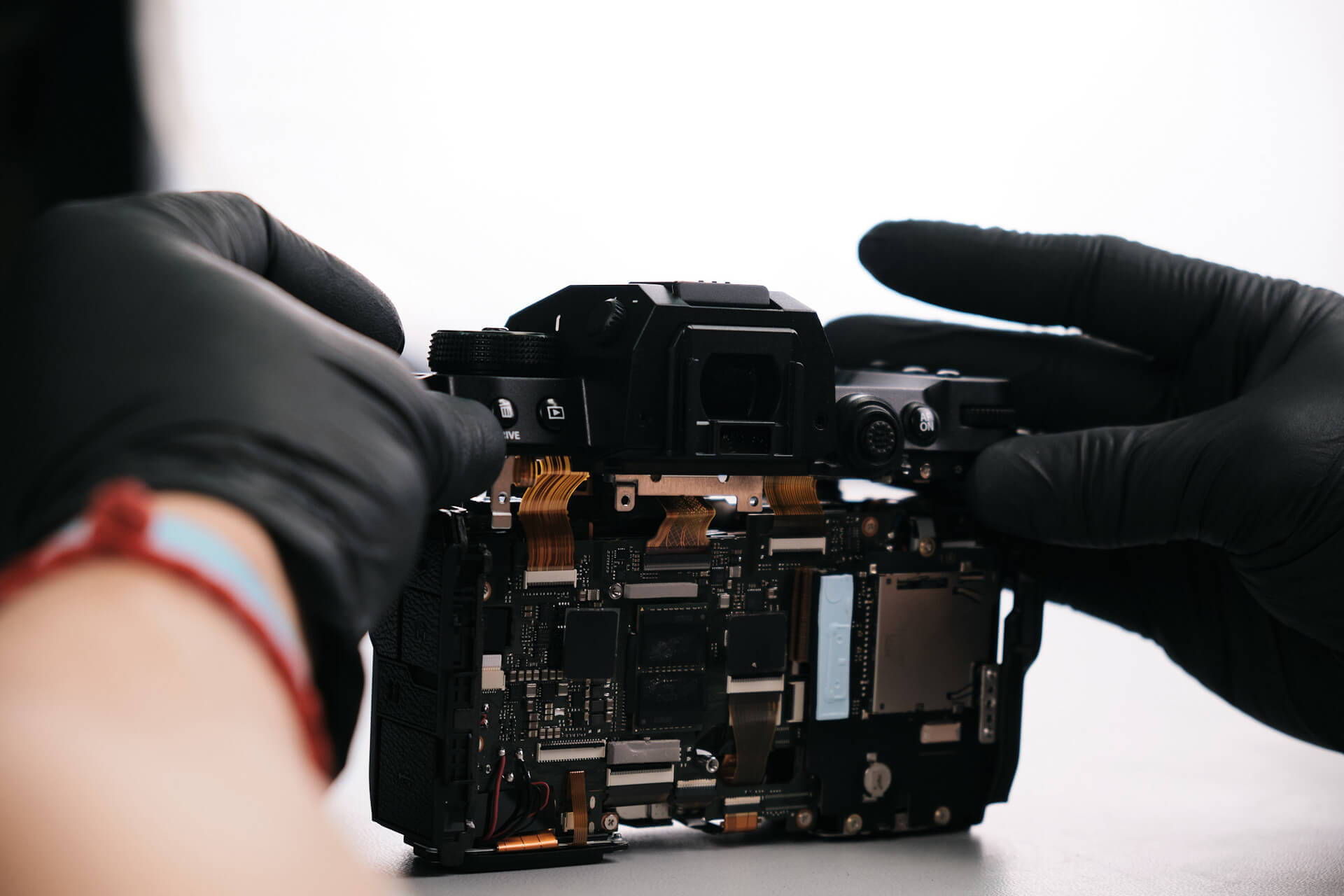

Next, we had to tackle the circuit board, so we started with this ribbon cable.

35 fuji
36 fuji

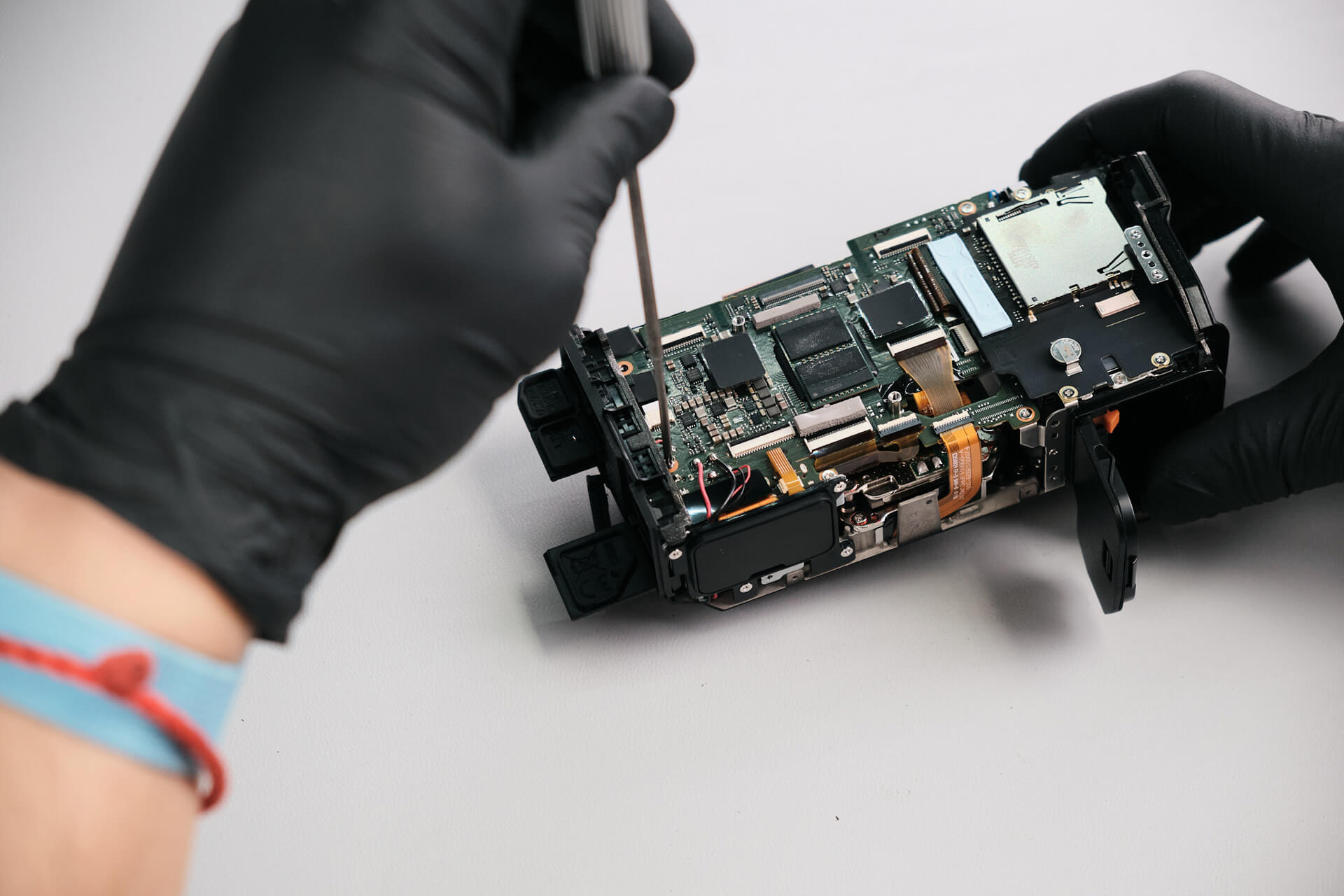

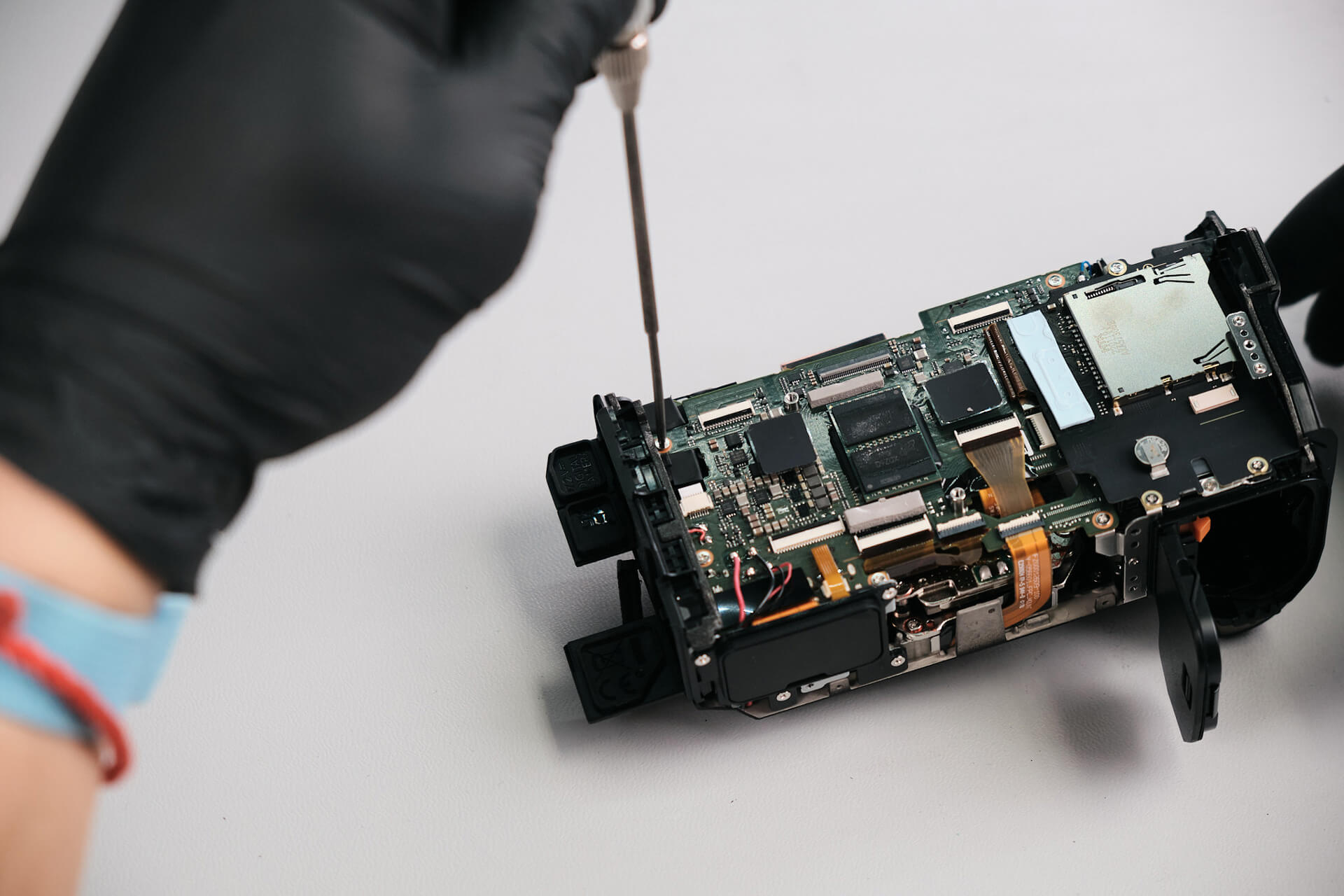

Here, we removed two silver screws from the circuit board.

37 fuji
38 fuji
39 fuji

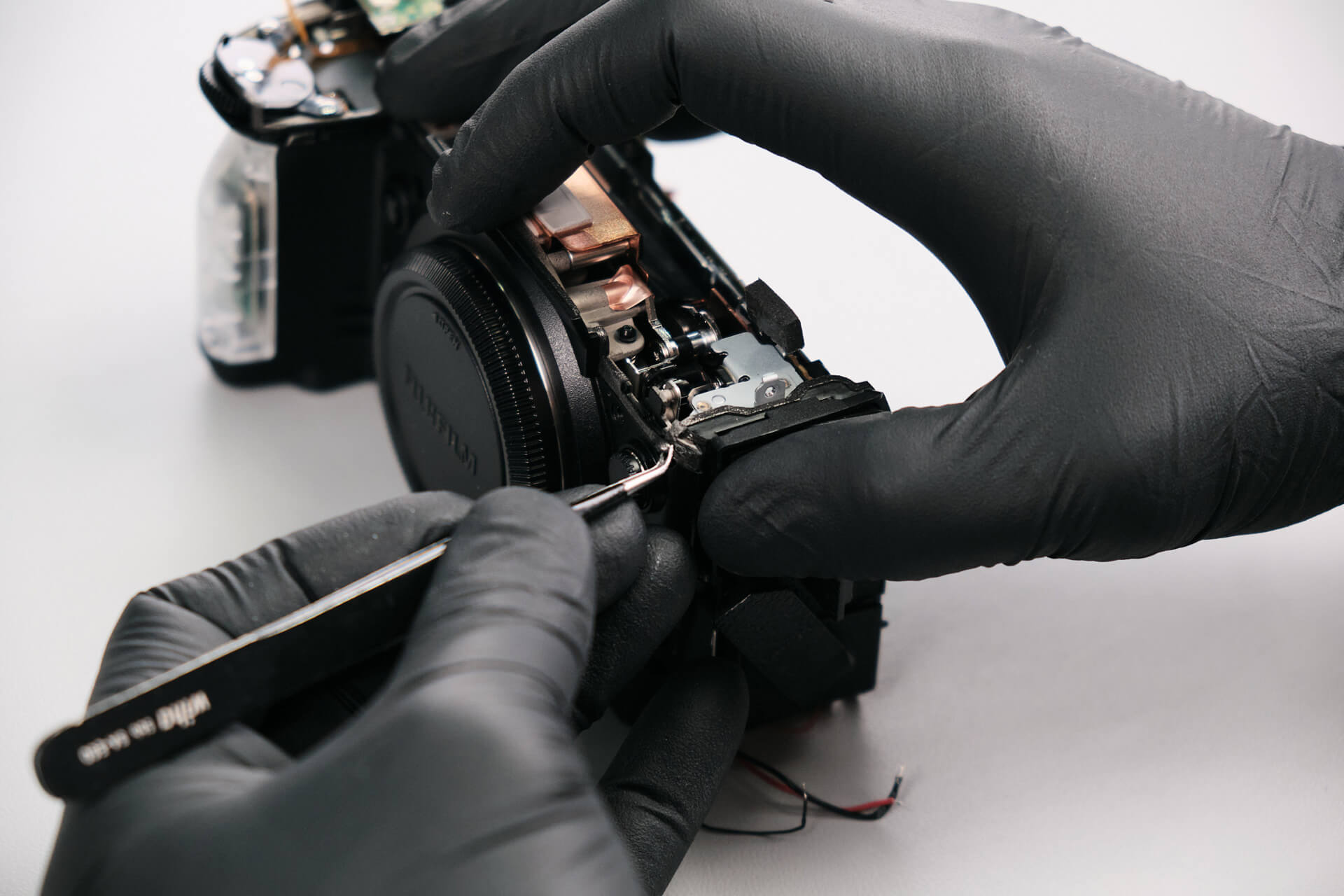

Other parts connected to the circuit board prevented us from removing the file transmitter trim and side panels. We decided to turn the body around and found another hidden screw in the front of the camera, along with three silver screws that connected the trims.

40 fuji

After removing the file transmitter trim, we removed a silver screw underneath it.

41 fuji
42 fuji
43 fuji
44 fuji
45 fuji
46 fuji
47 fuji

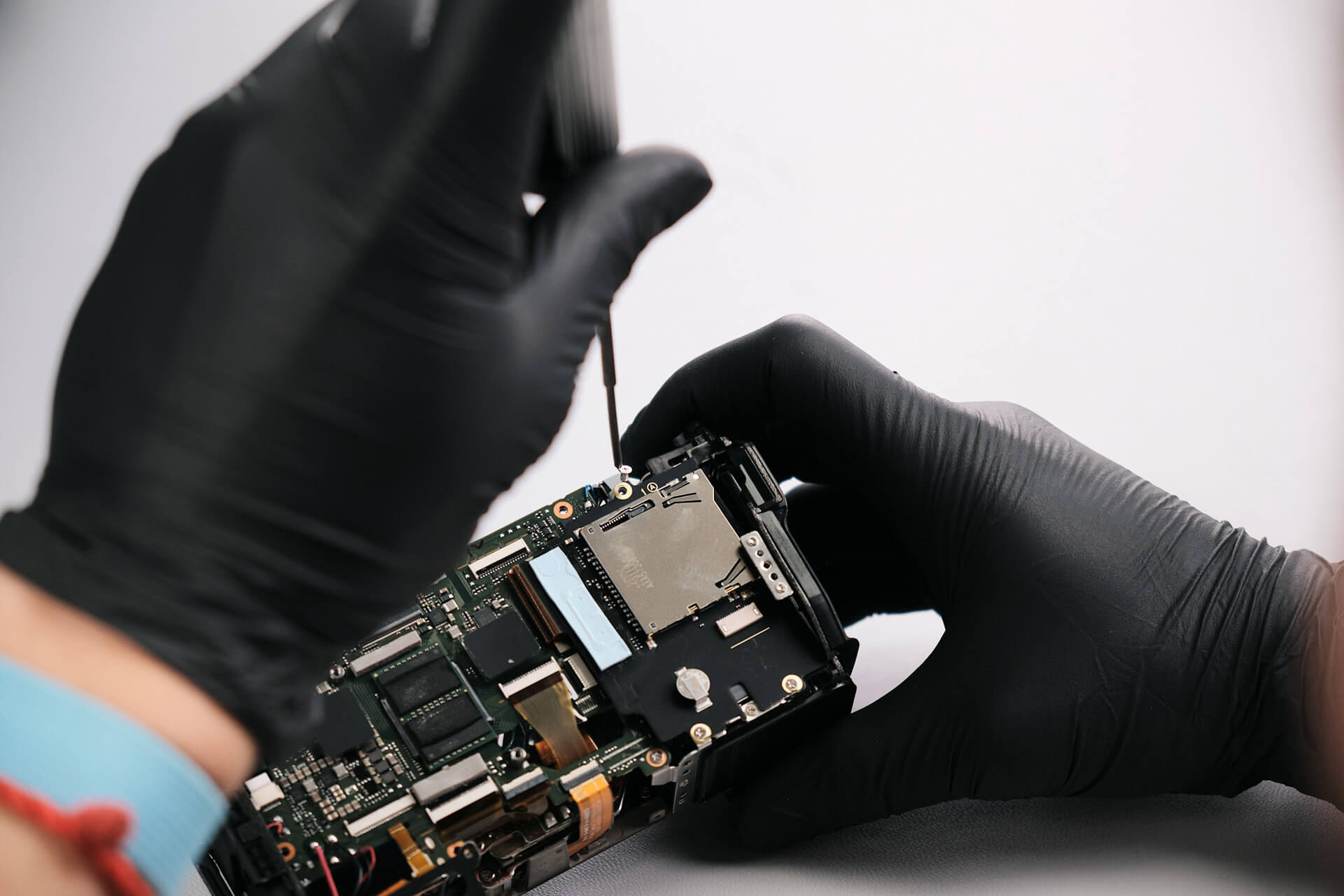

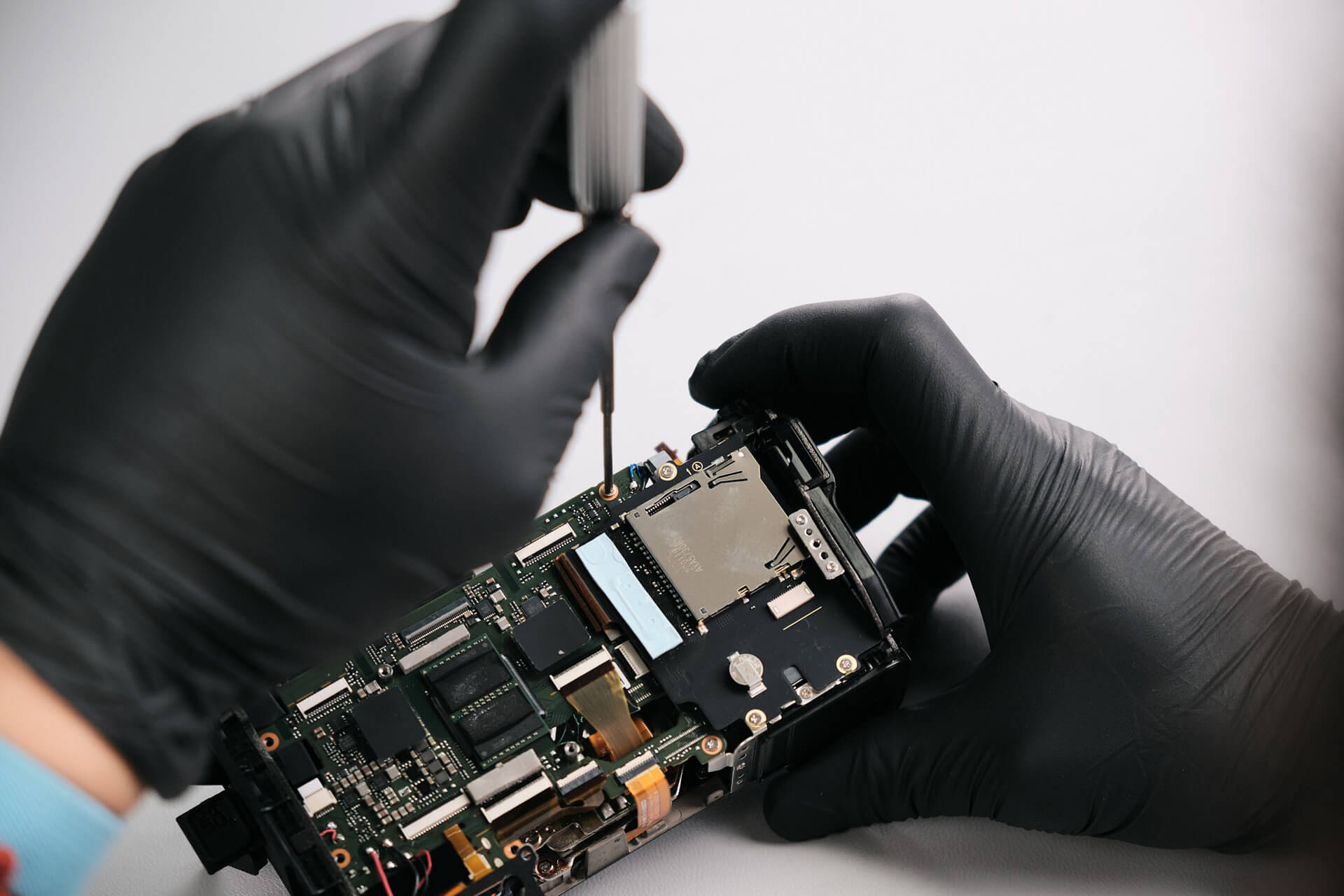

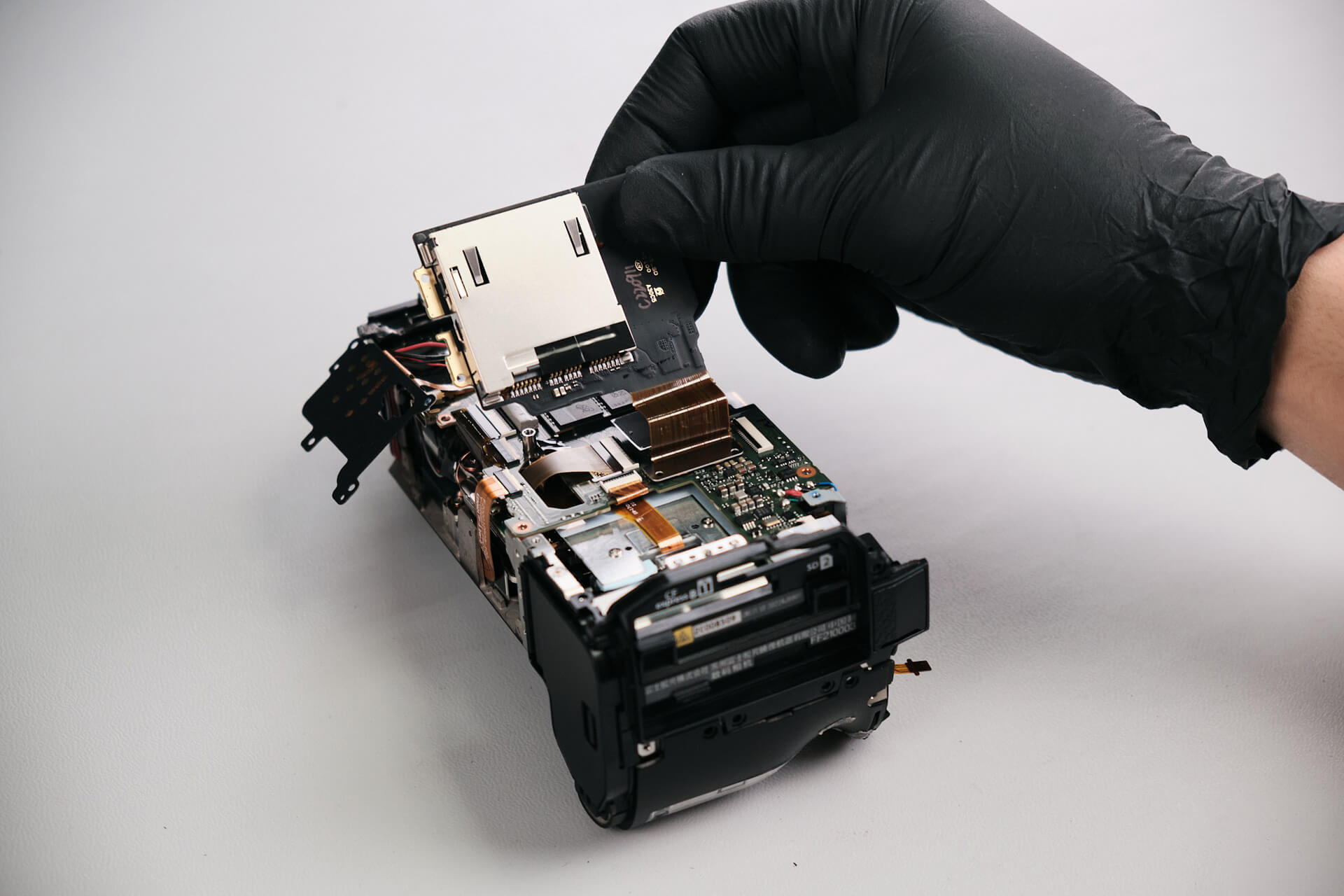

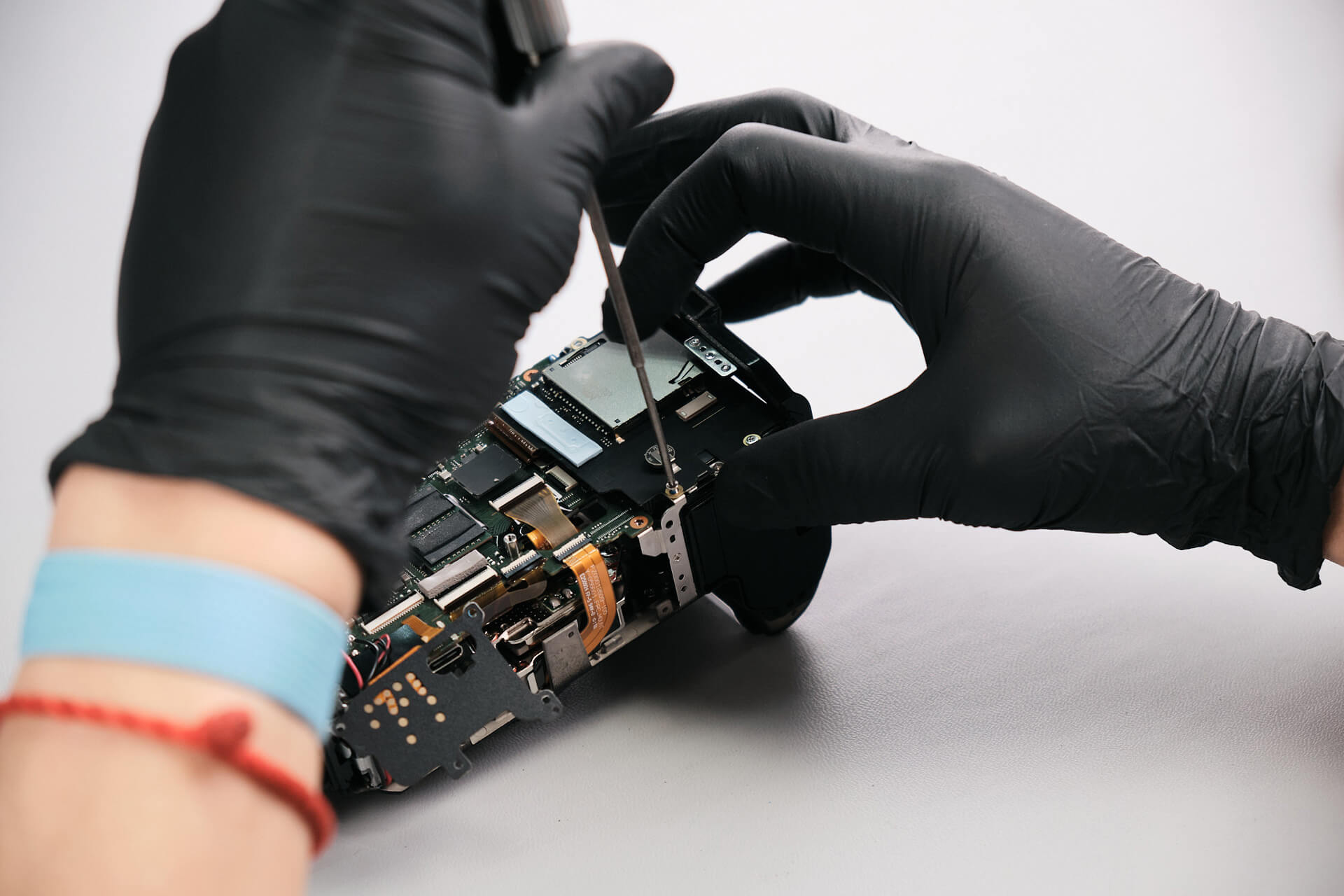

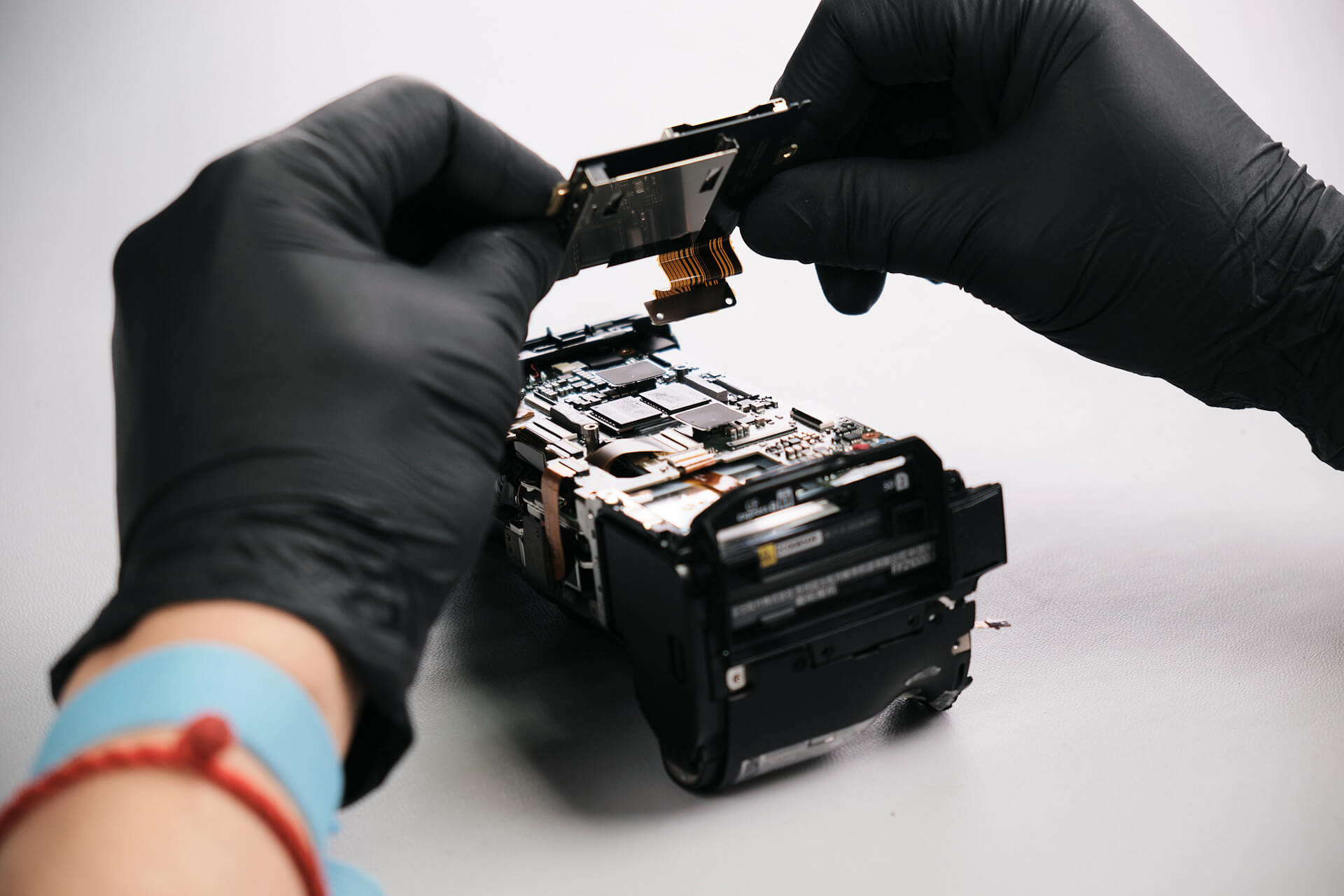

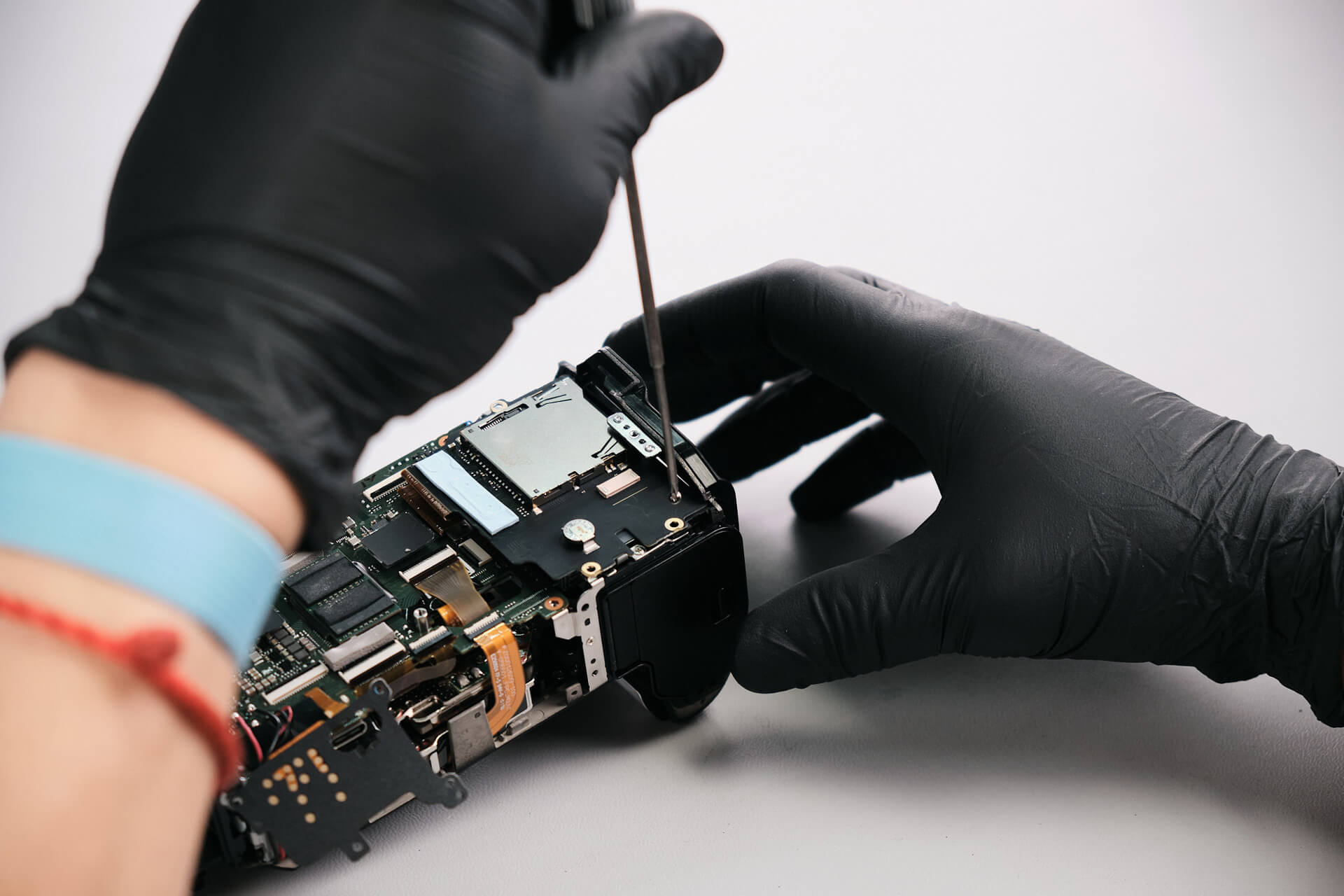

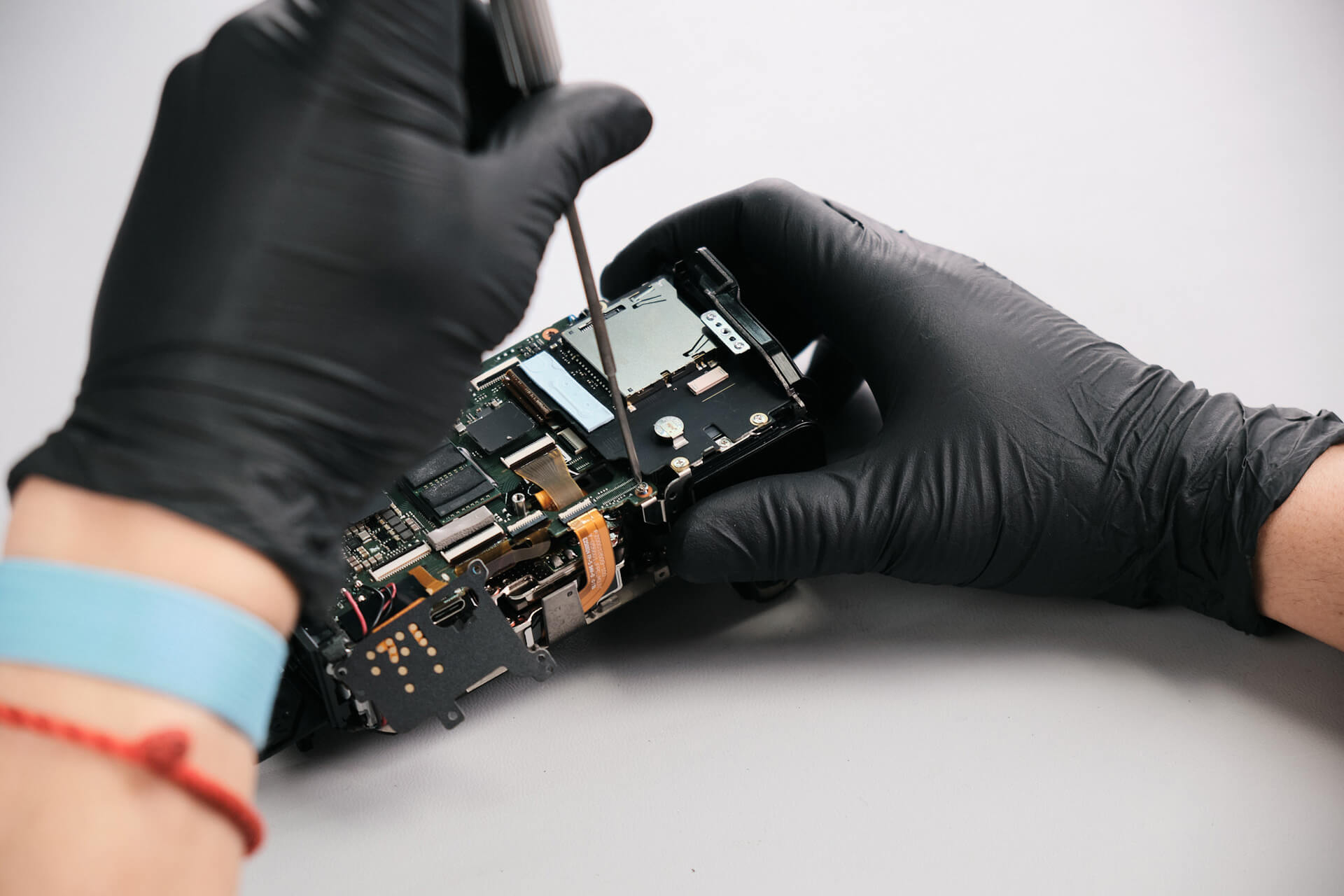

Five silver screws needed to be removed here. This allowed us to detach the memory card slot. In our opinion, this is a great design choice: if the memory card slot does get damaged, this would be the only piece that needs to be replaced. In most cameras, the memory card slot is embedded into the circuit board.

48 fuji
49 fuji

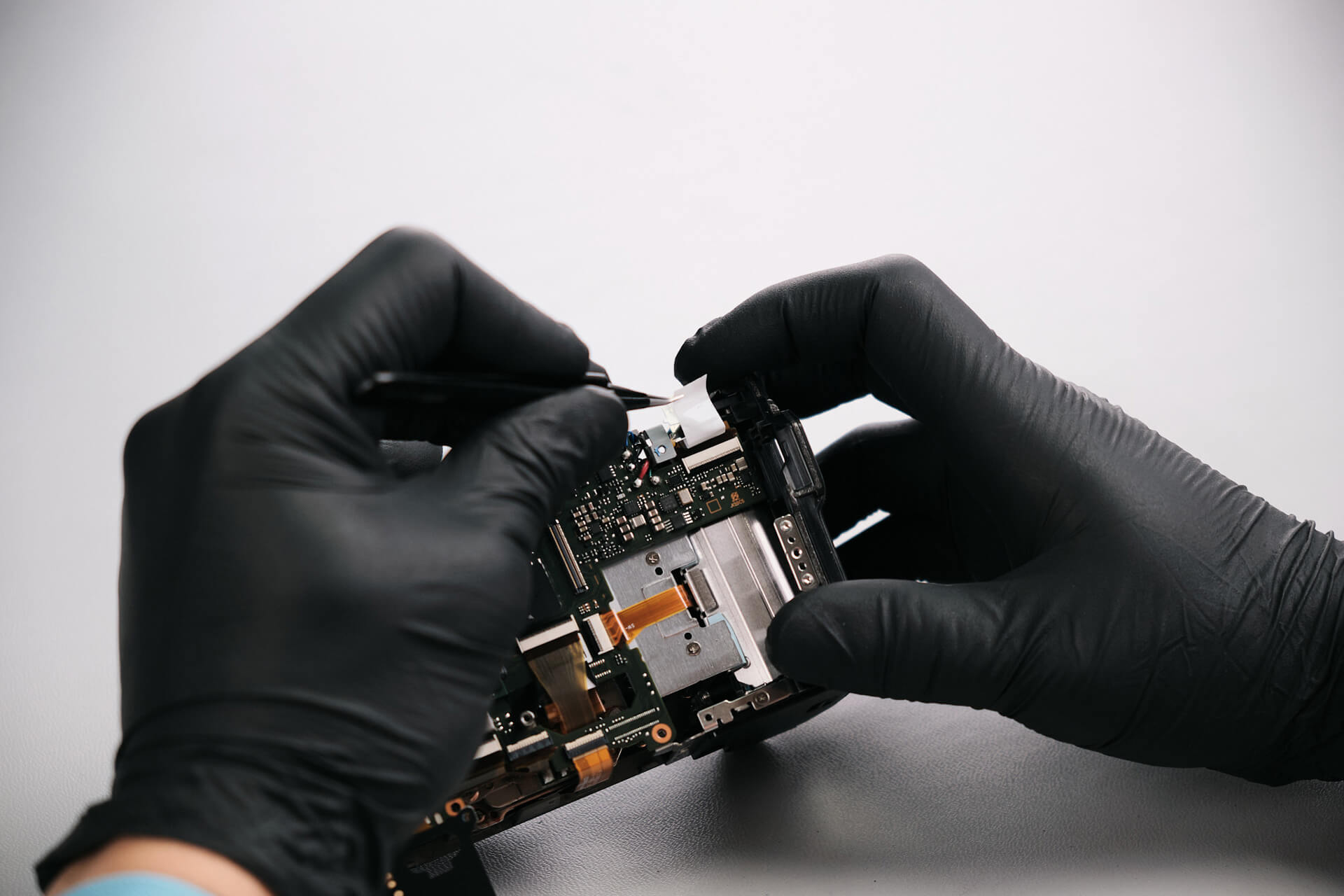

Under the memory card slot, we removed two ribbon cables.

50 fuji
51 fuji
52 fuji
53 fuji 04 13
54 fuji

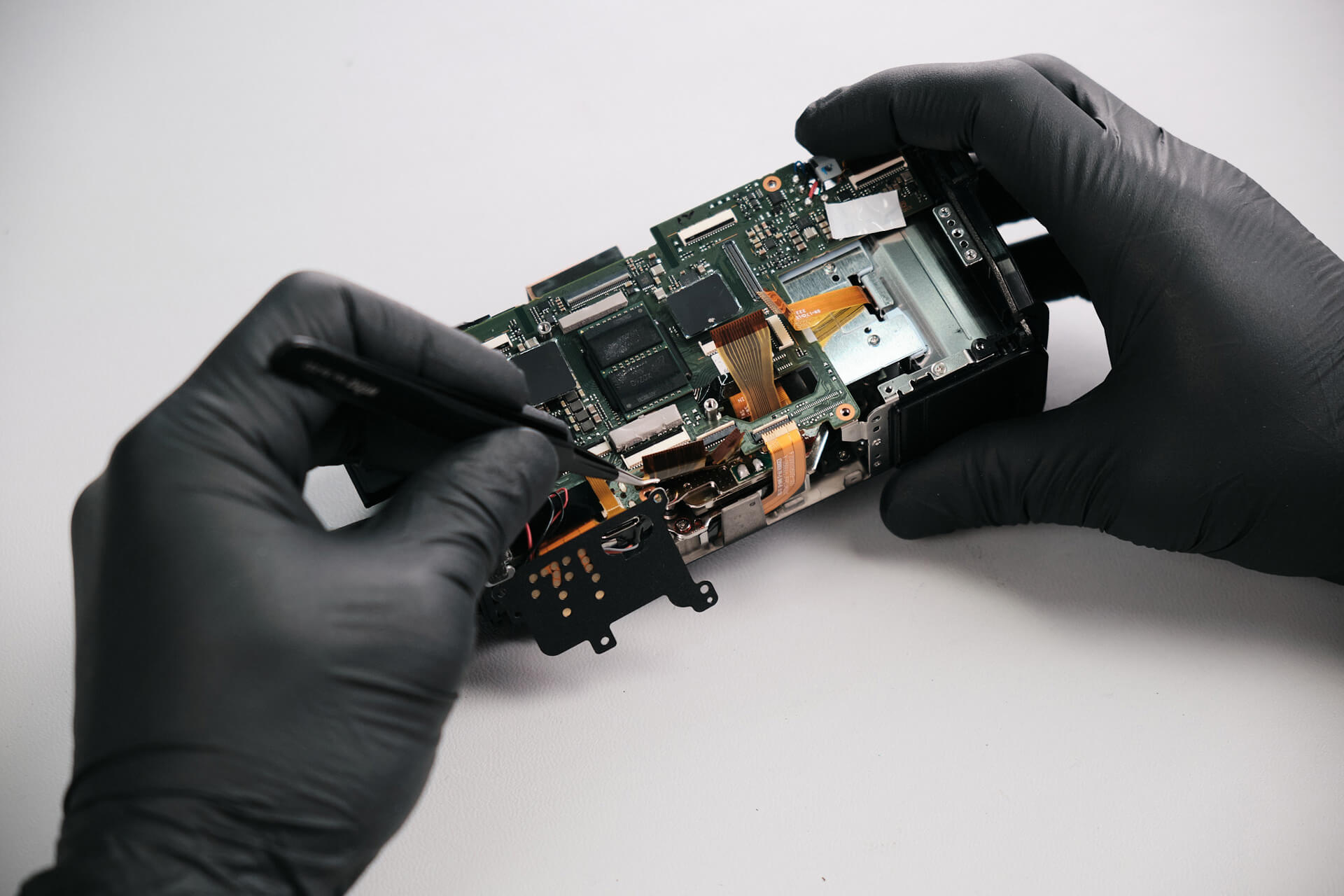

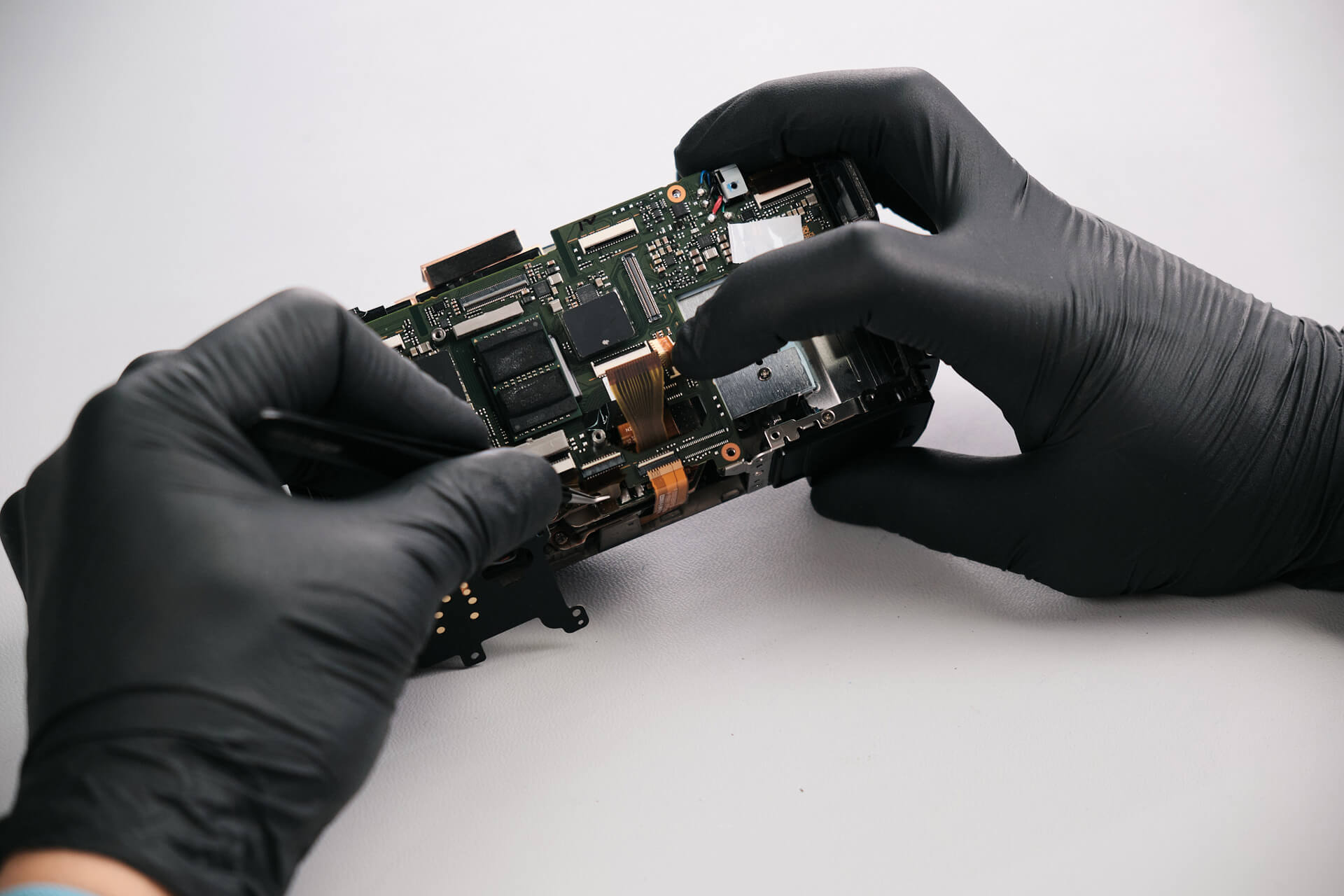

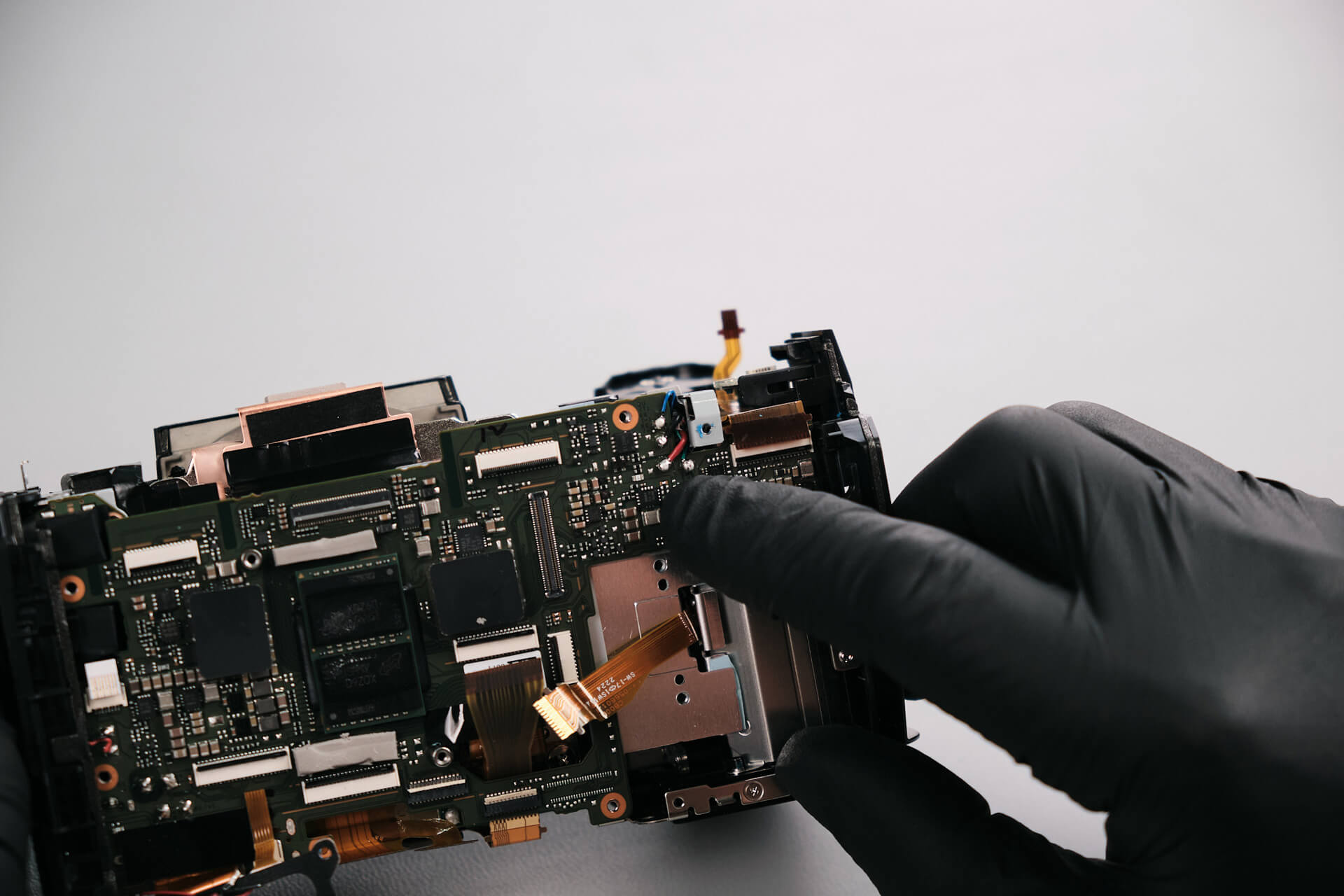

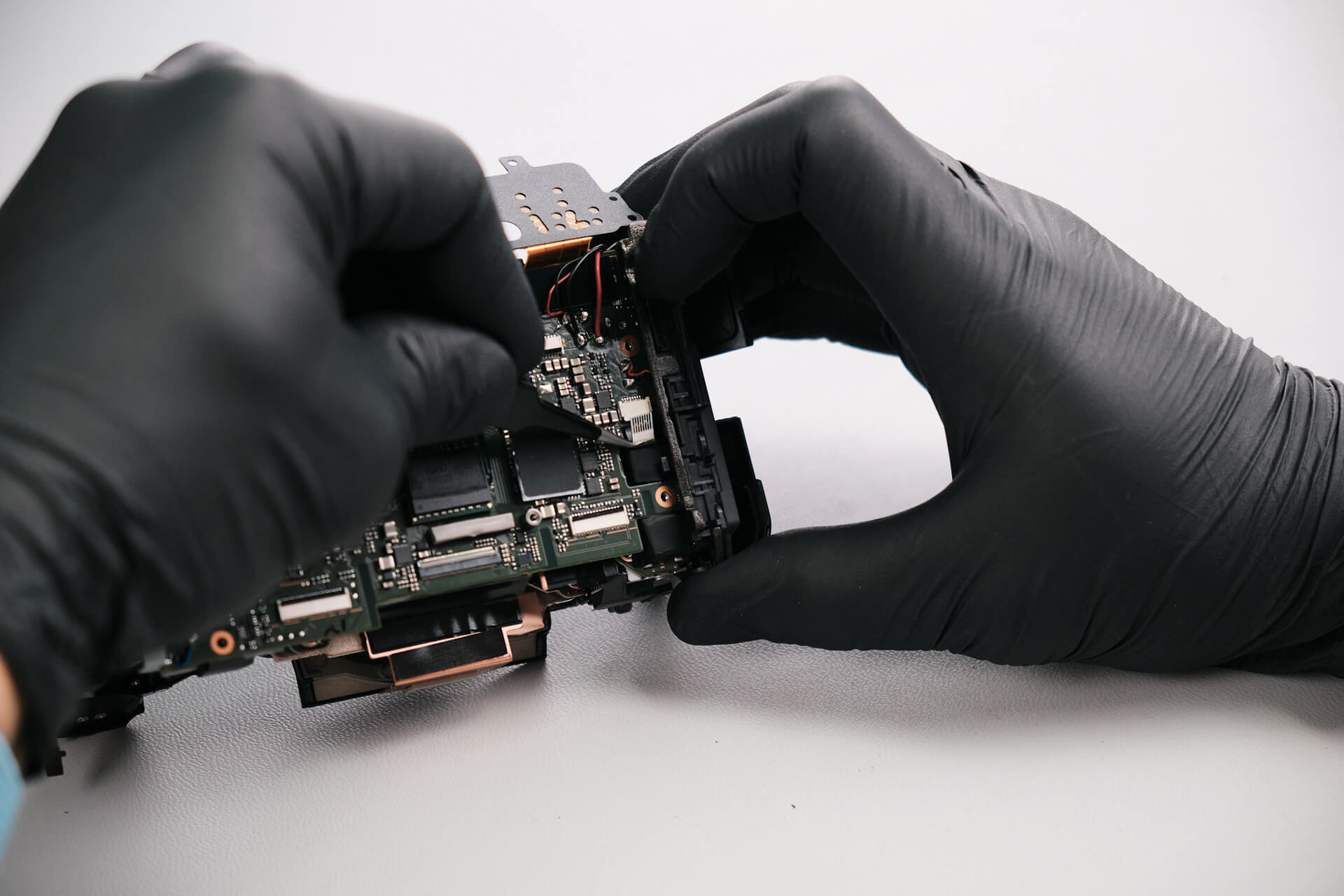

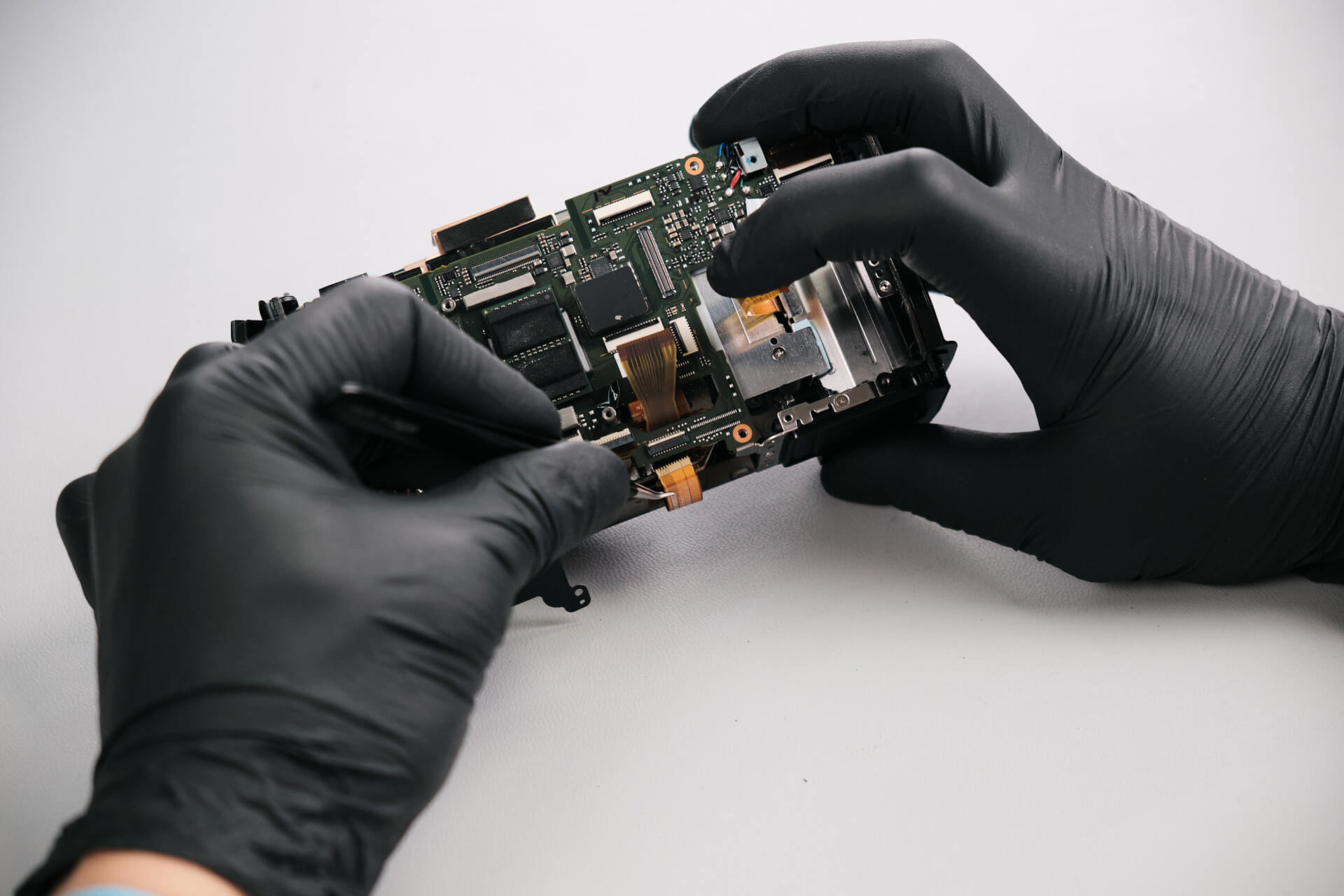

Here we removed five ribbon cables from the circuit board.

55 fuji

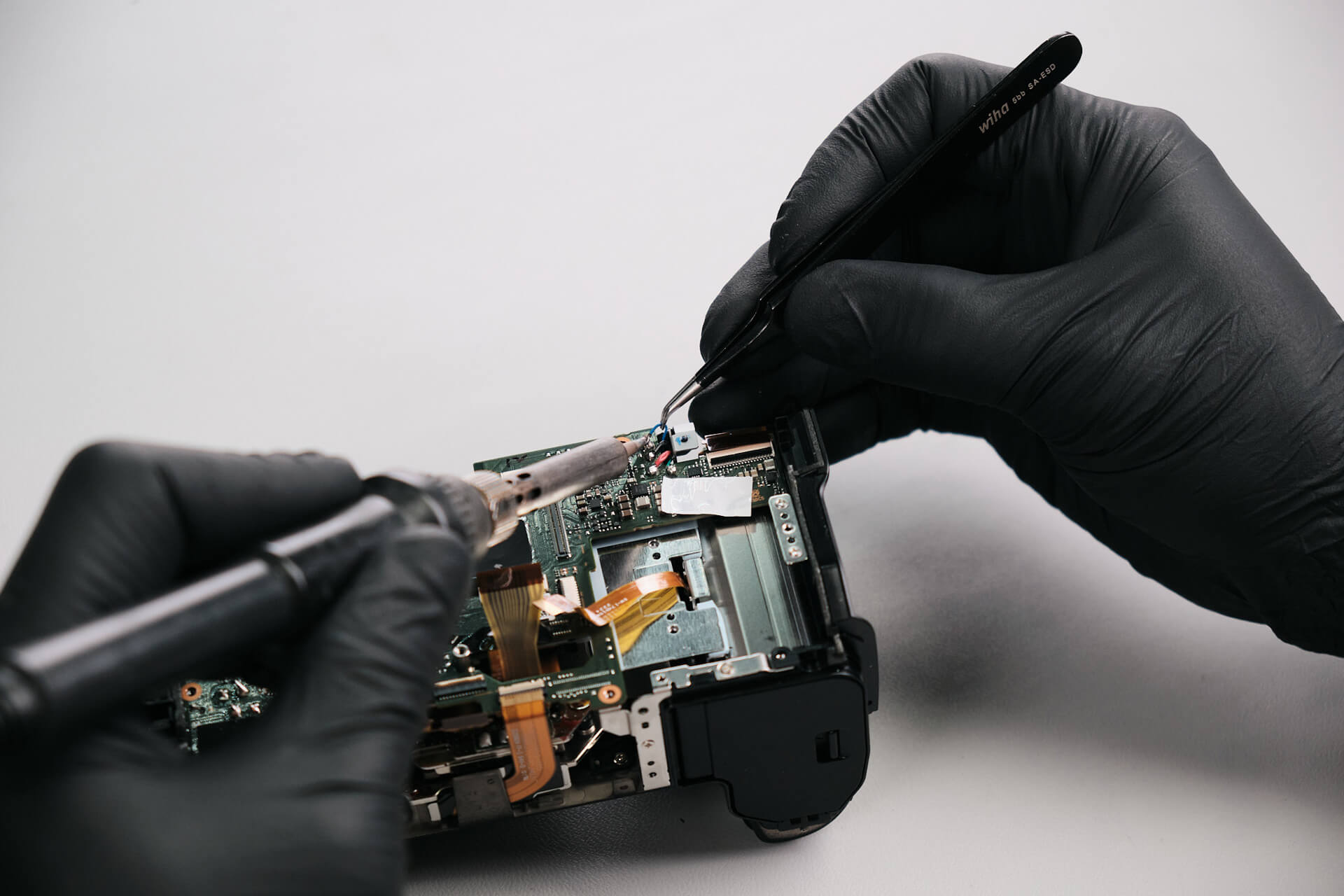

Interestingly, the Fujifilm X-H2 has several soldered wires connected to the circuit board. We removed wires from the bottom using a soldering iron.

56 fuji

We removed two silver screws here. It seems like the metal panel was part of the circuit board.

57 fuji
58 fuji

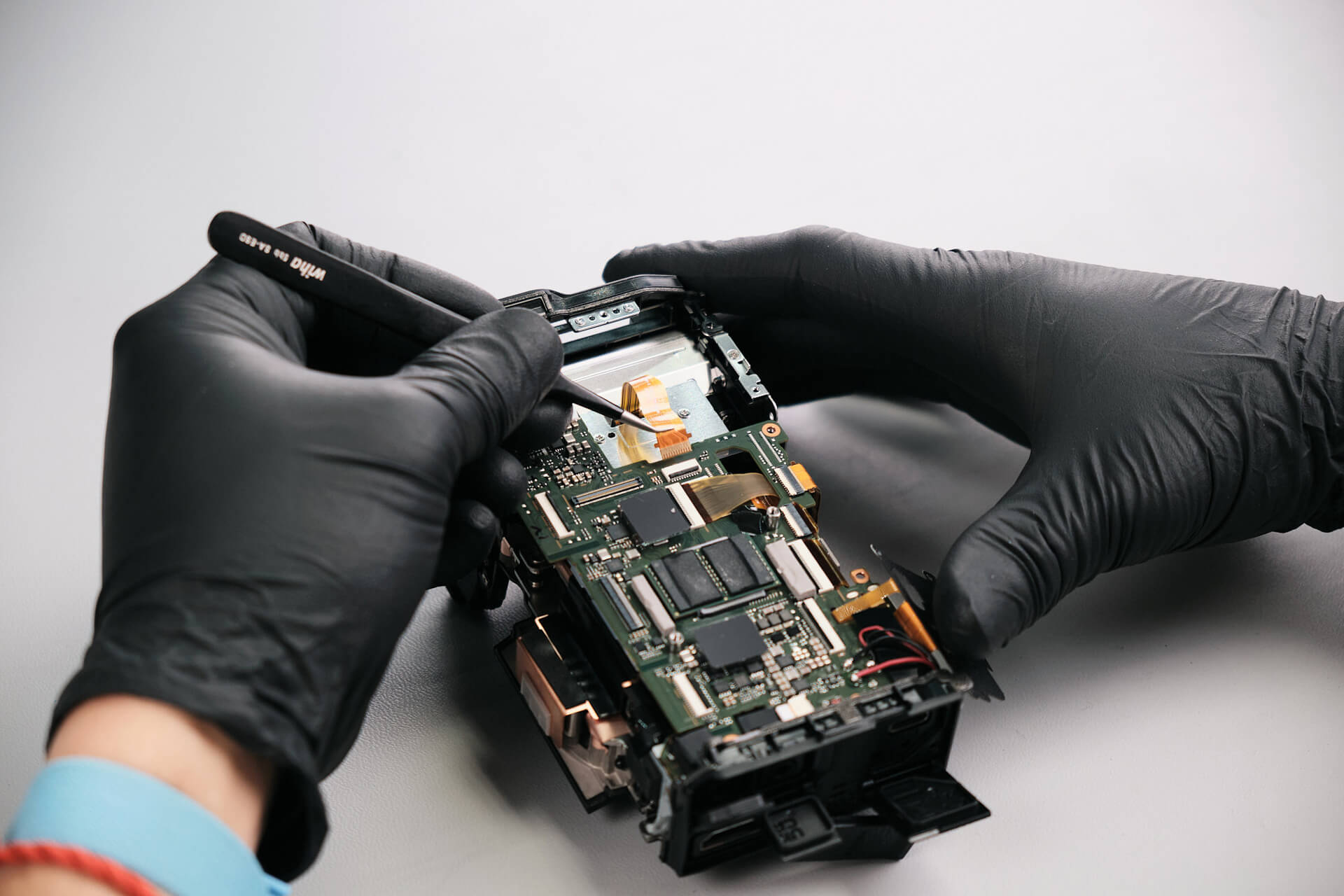

The remaining wires were removed from the circuit board.

59 fuji

Heat transfer tape was removed from the frame.

60 fuji

Wires at the bottom of the camera were held in place with double-sided tape, which needed to be removed for us to detach the wires.

61 fuji

There was one more hidden ribbon cable.

62 fuji
63 fuji

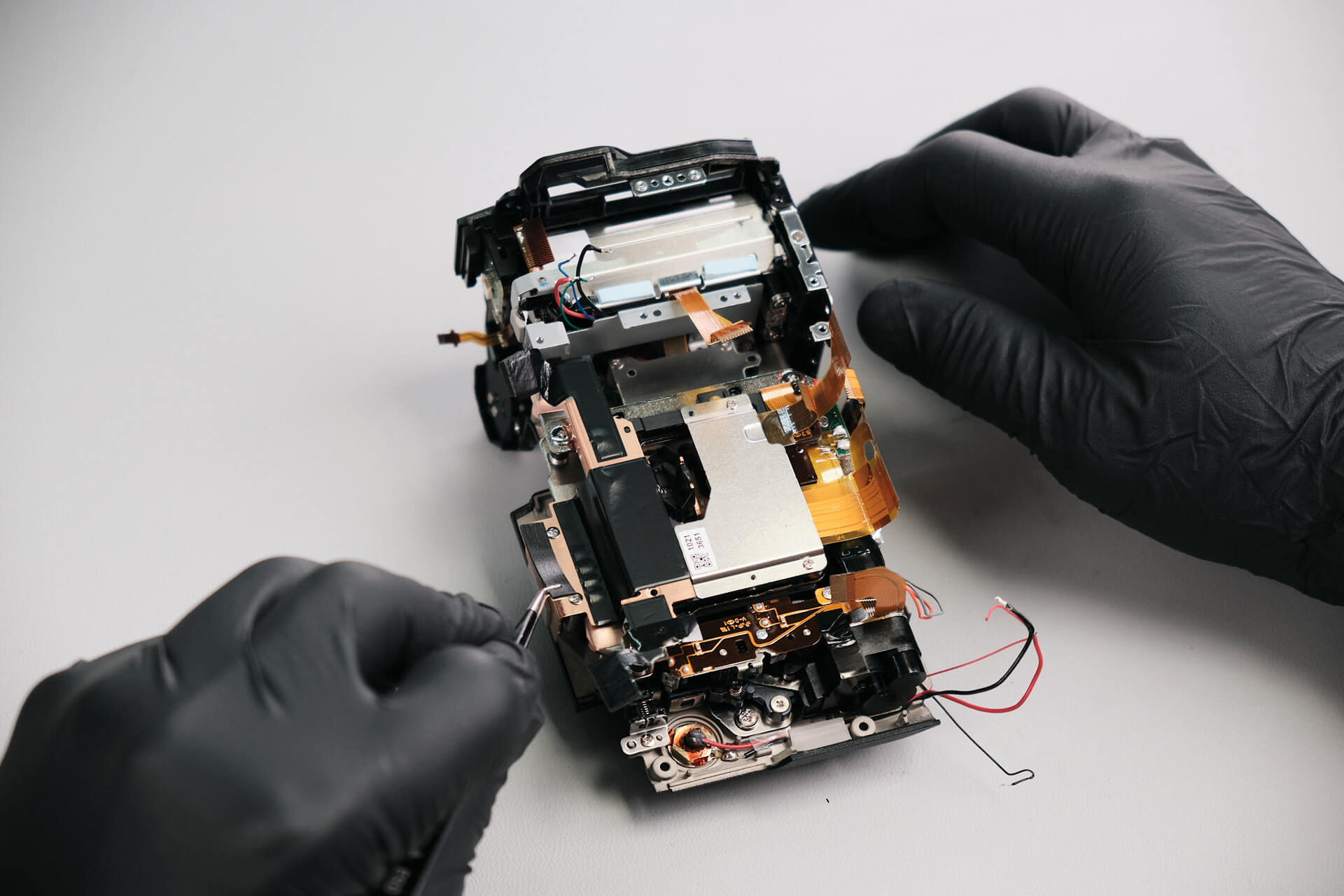

At this point, we had trouble figuring out why the circuit board wouldn’t come off. However, we quickly figured it out since the circuit board would move with the side panel and weather sealing. Unfortunately, the weather sealing needed to be cut to detach the circuit board from the camera.

64 fuji
65 fuji
66 fuji

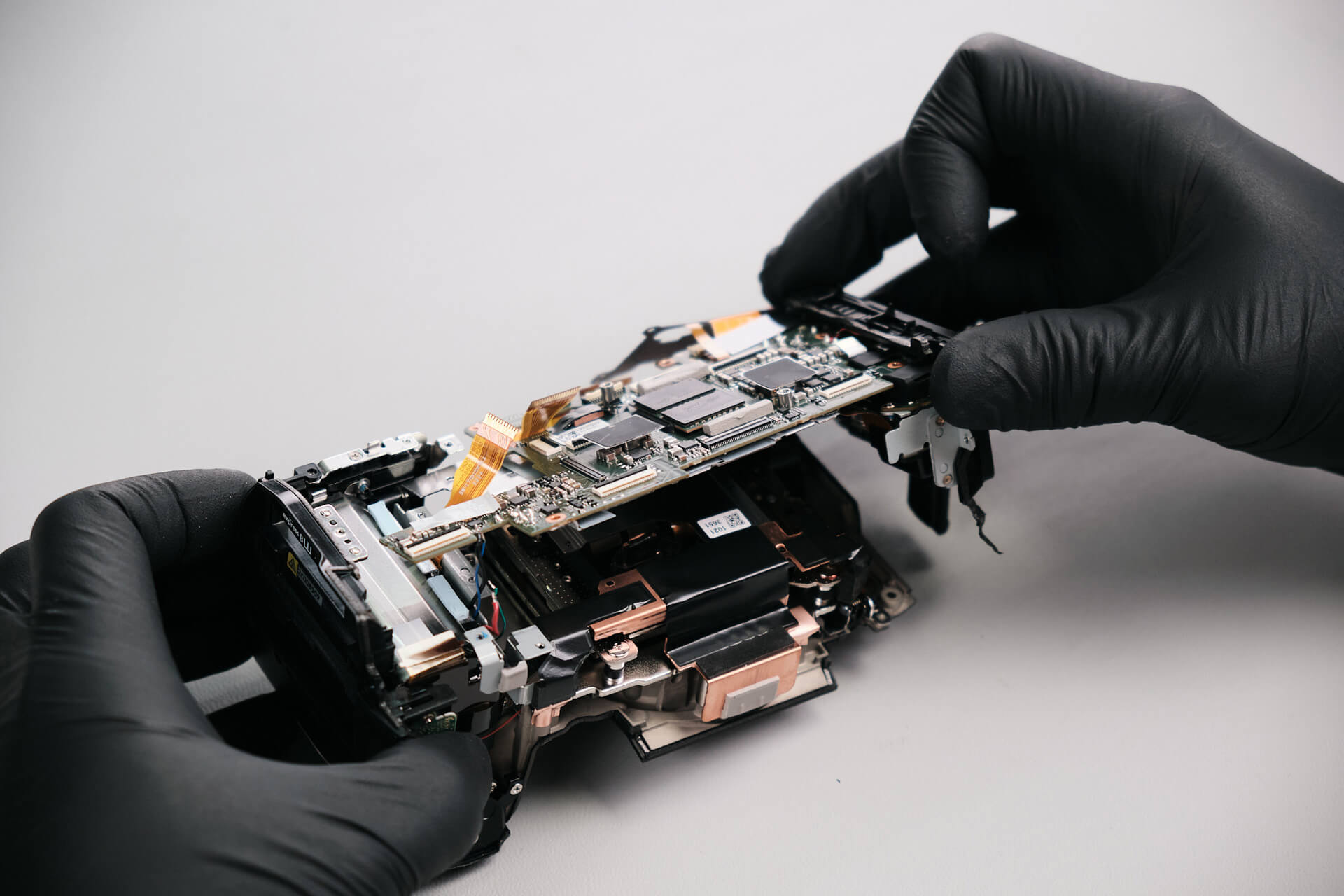

Although the circuit board moved after the weather sealing incision, something else prevented its complete removal.

67 fuji
68 fuji

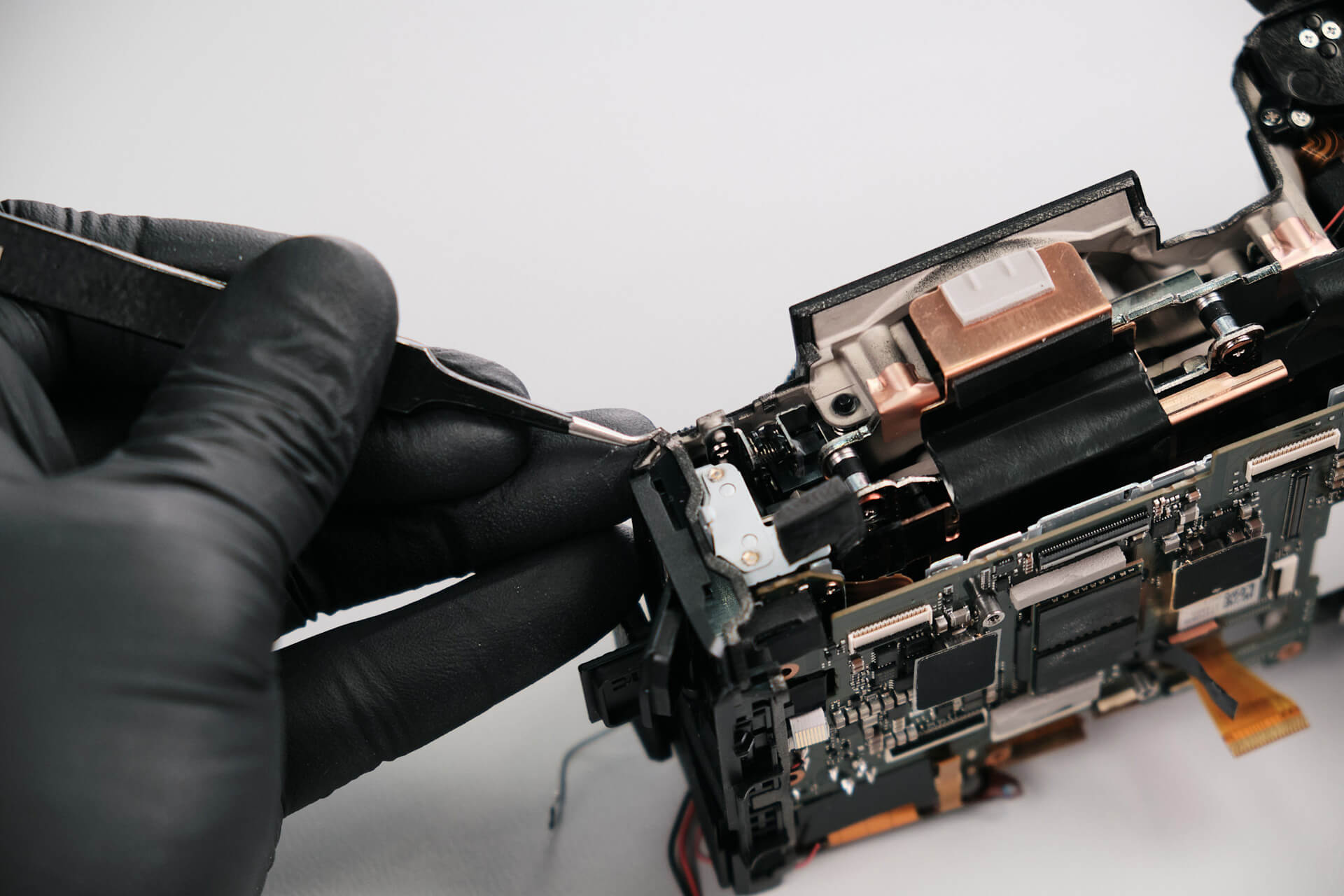

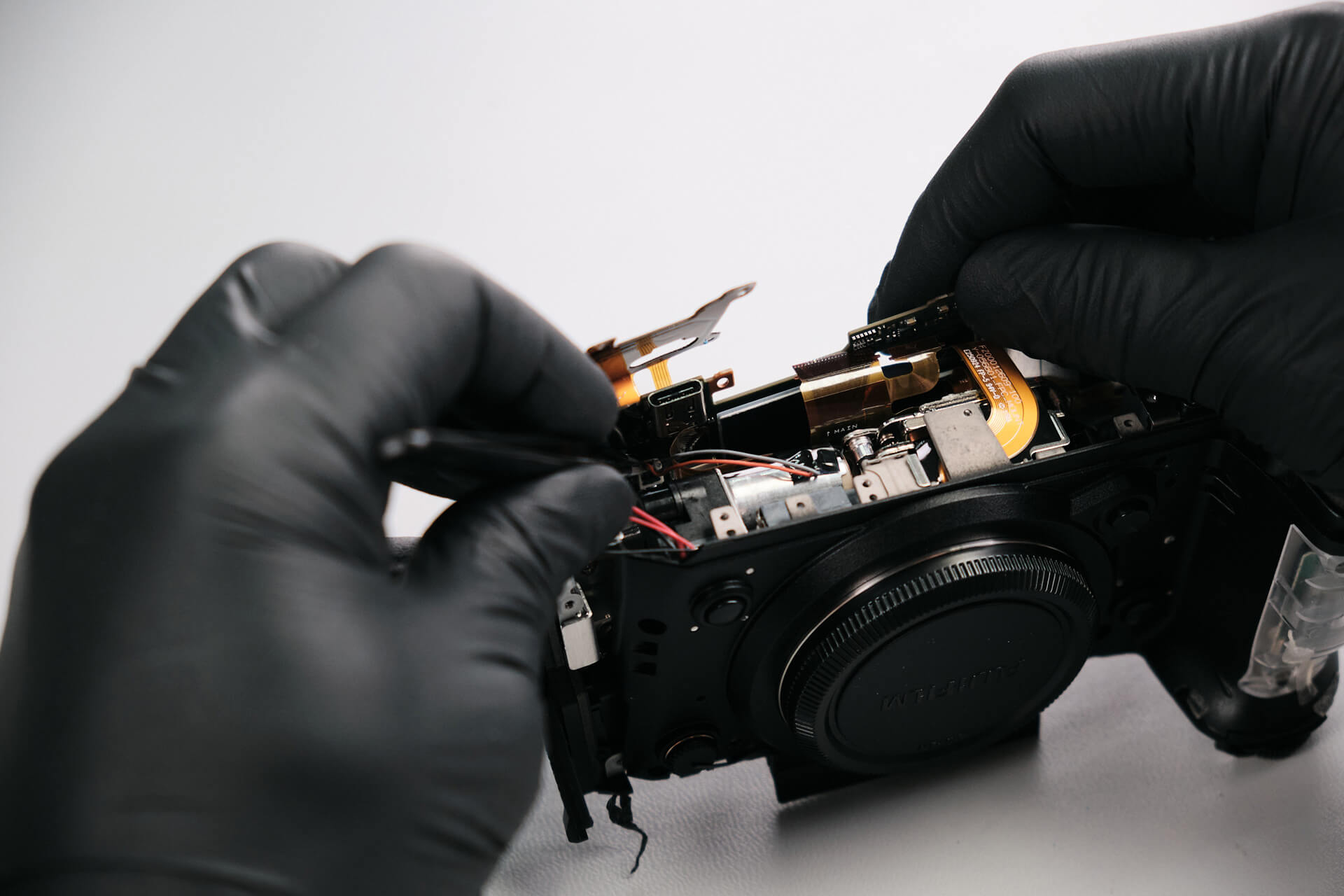

Fujifilm seems to love surprises—there were more cables to disconnect. This time, it was on the other side of the board.

69 fuji

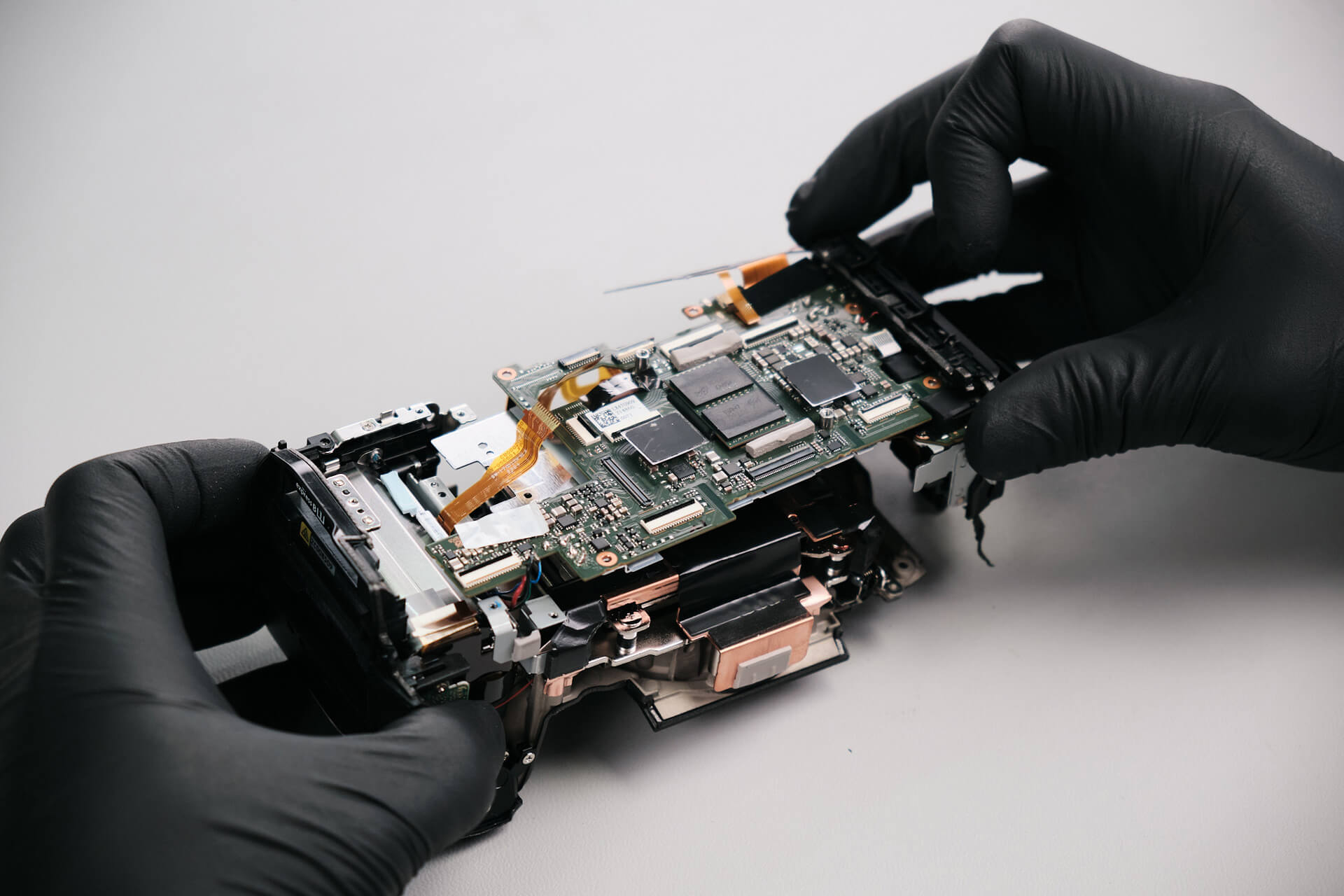

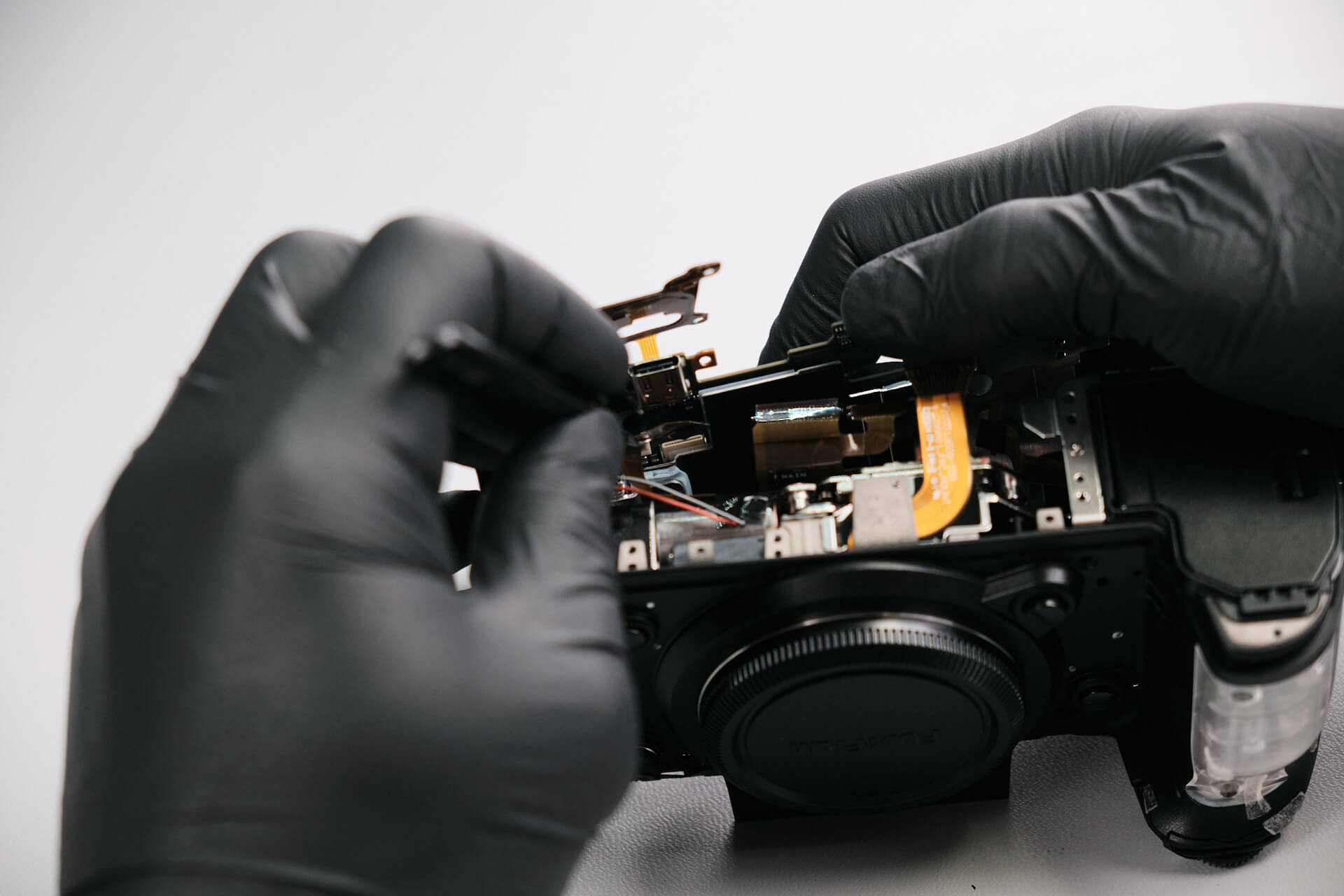

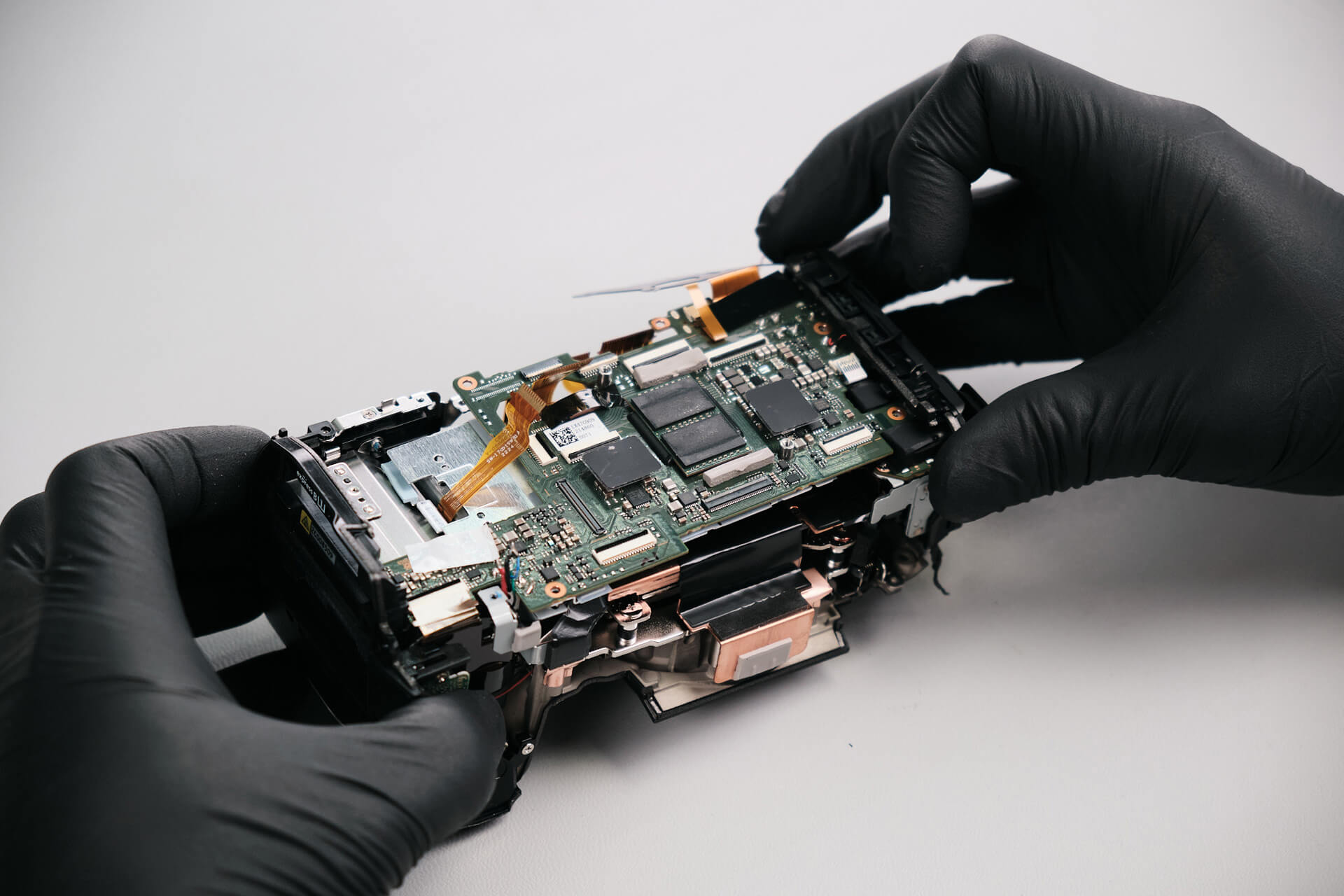

After removing all of the previous accessories, from wires to cables, the circuit board came off.

70 fuji
71 fuji
72 fuji

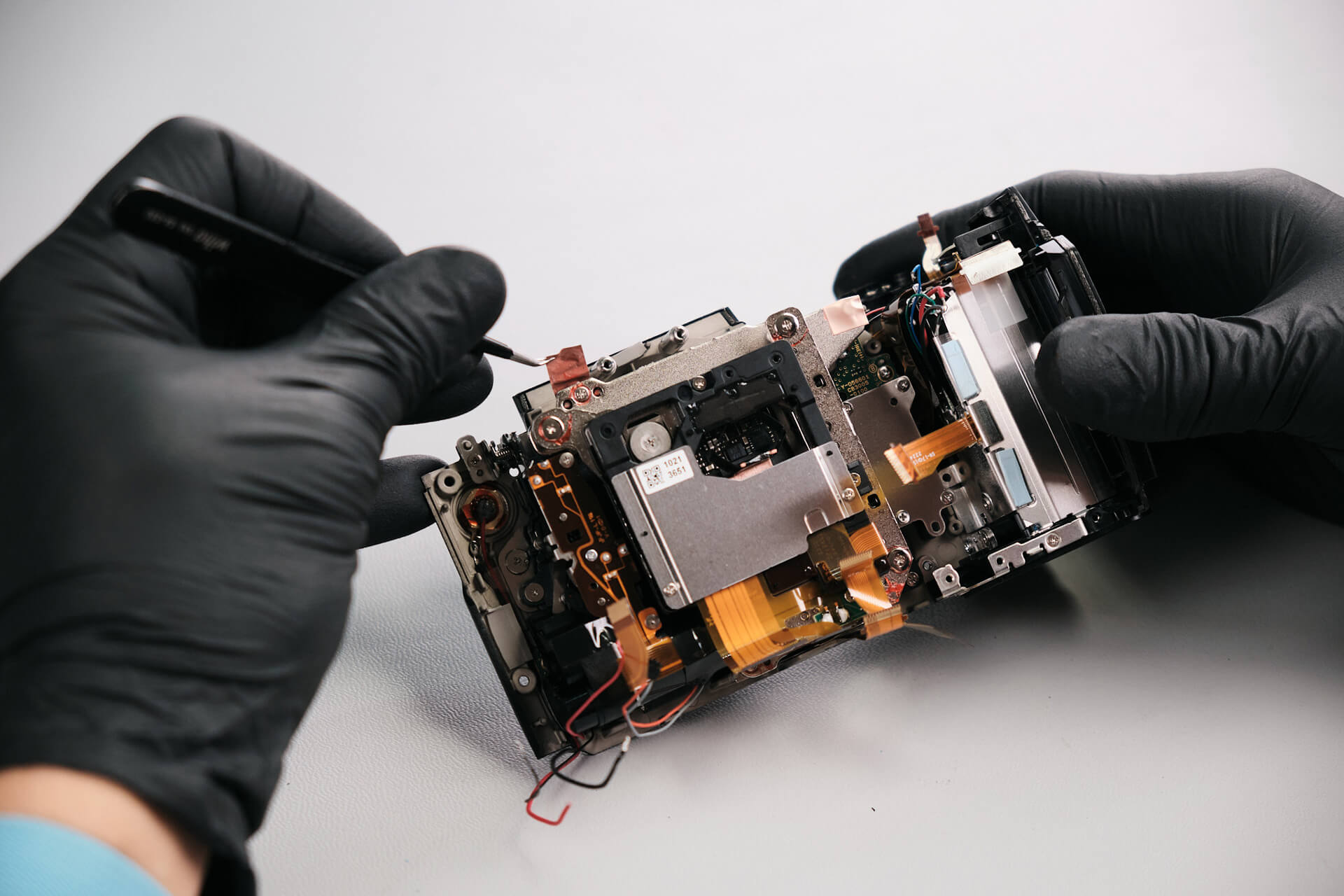

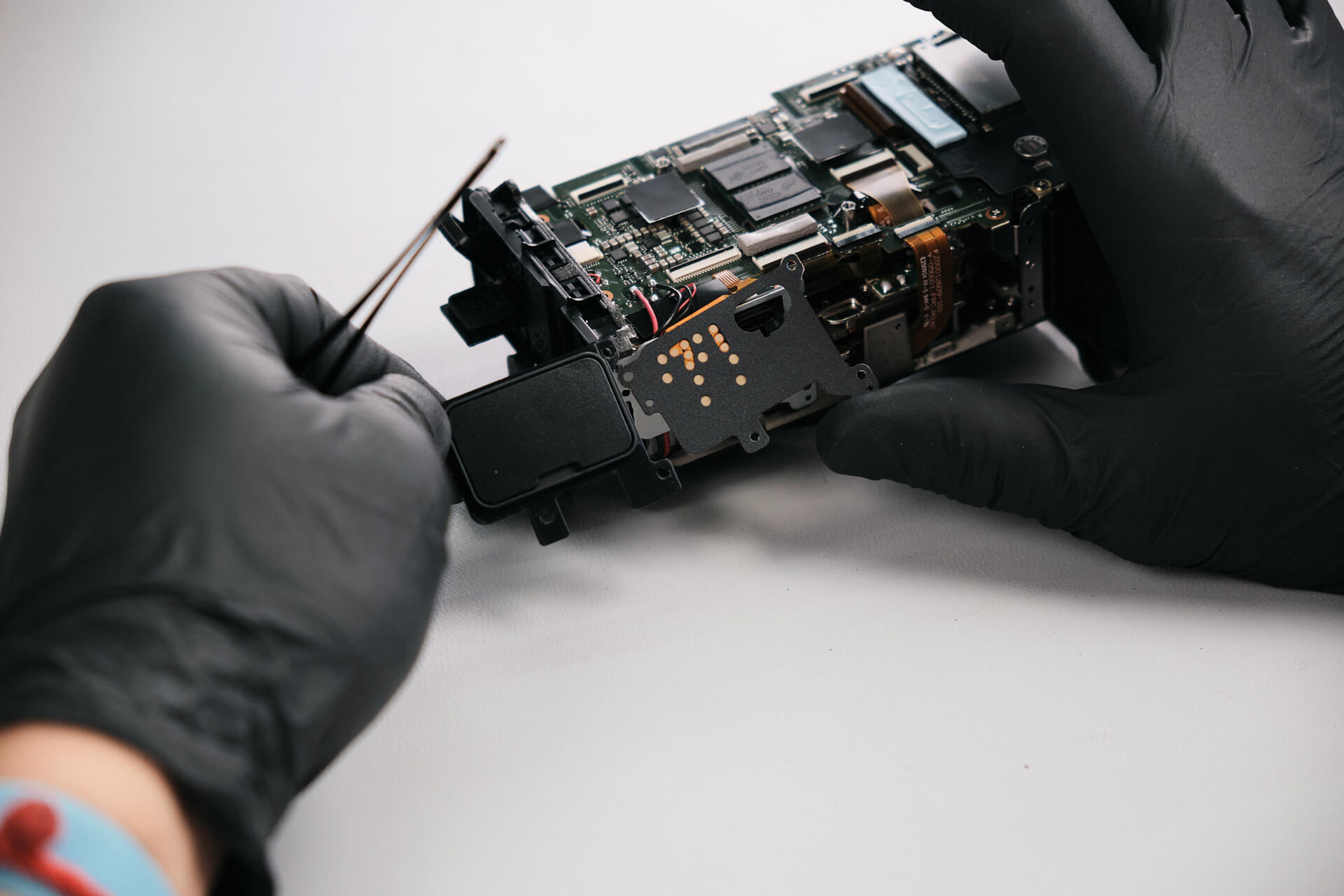

Heat transfer tape was peeled and removed along with two silver screws.

73 fuji

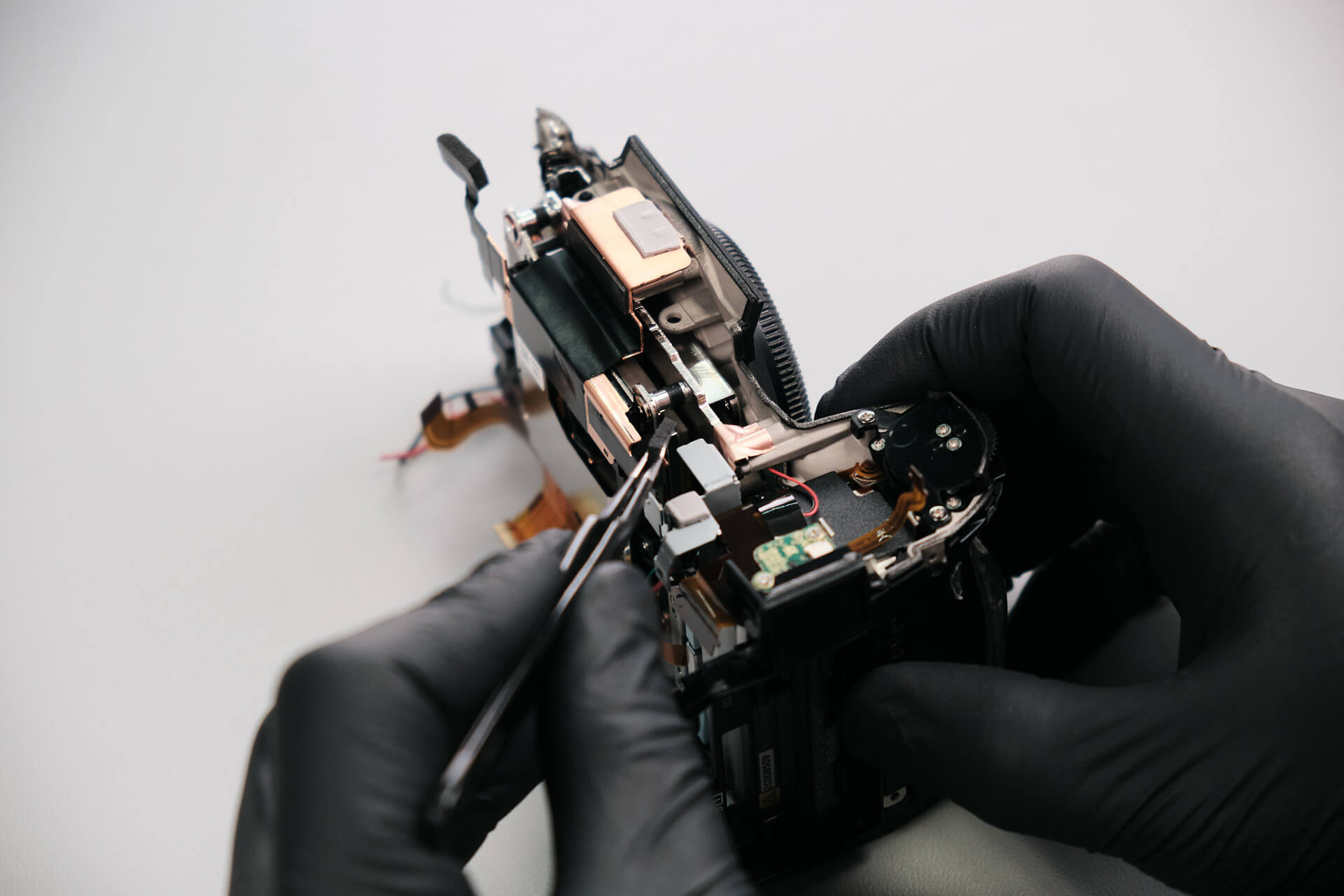

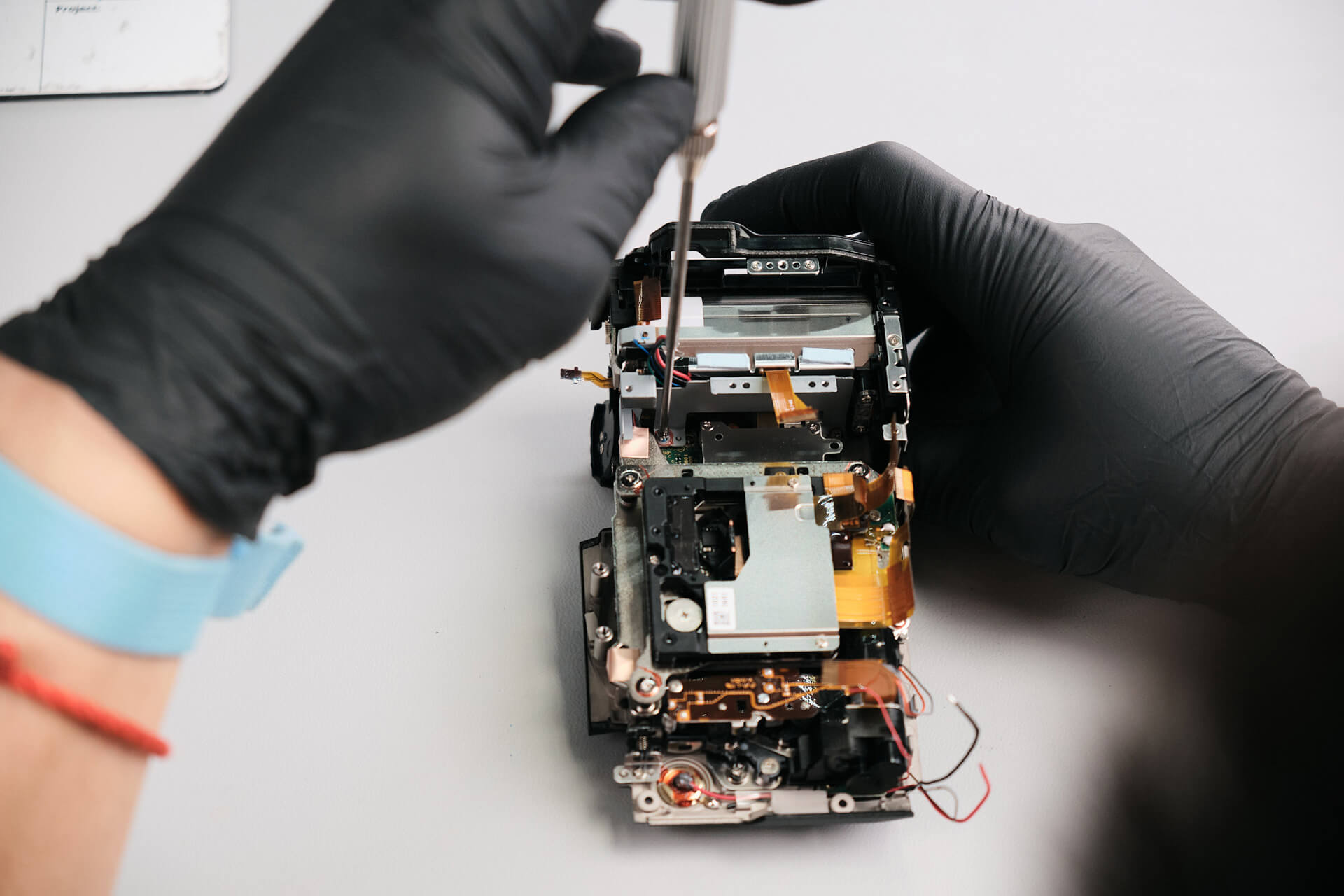

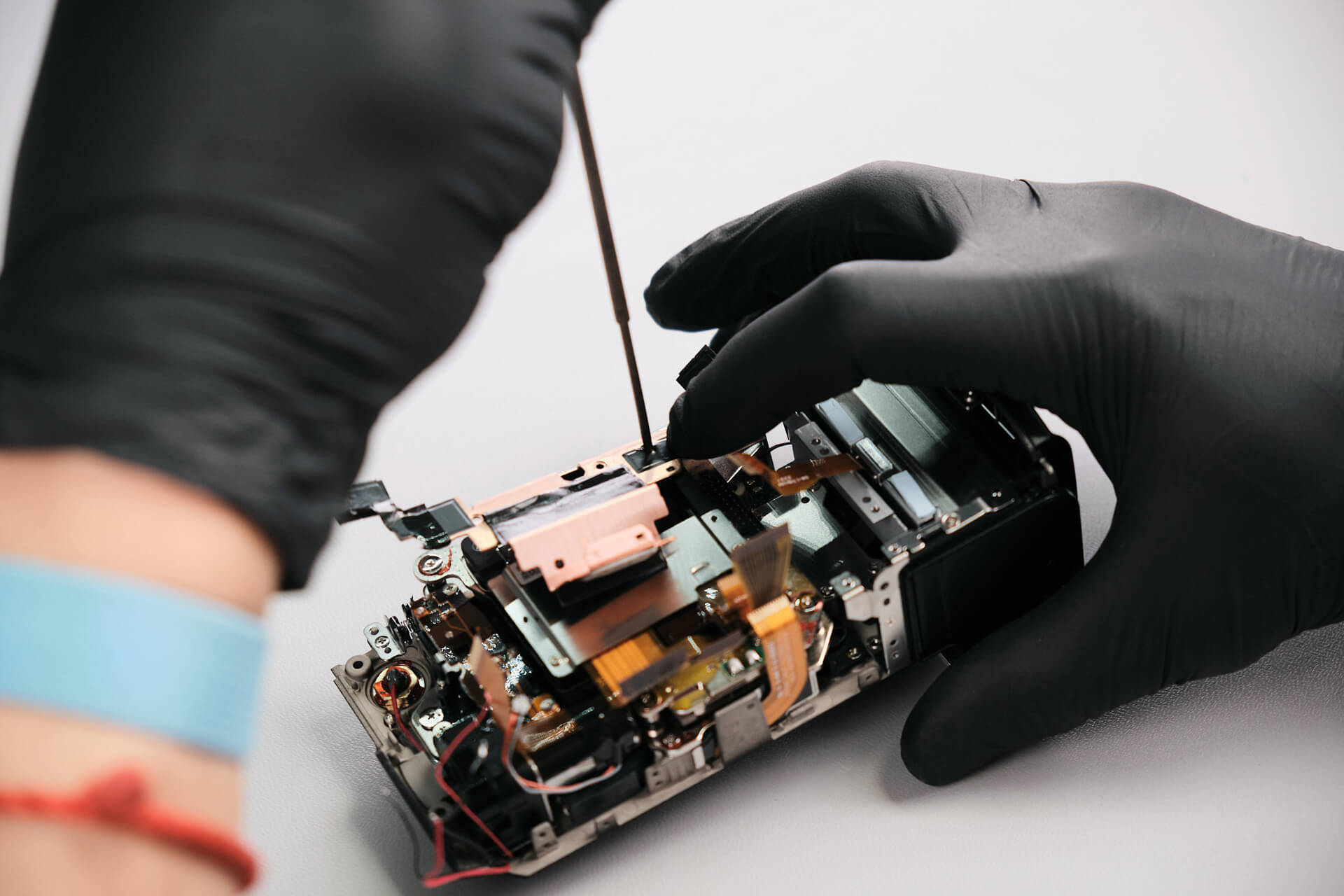

There was one hidden screw underneath the bracket.

74 fuji
75 fuji

There was another hidden screw under the heat transfer tape. Removing this last screw allowed us to completely remove the bracket.

76 fuji
77 fuji

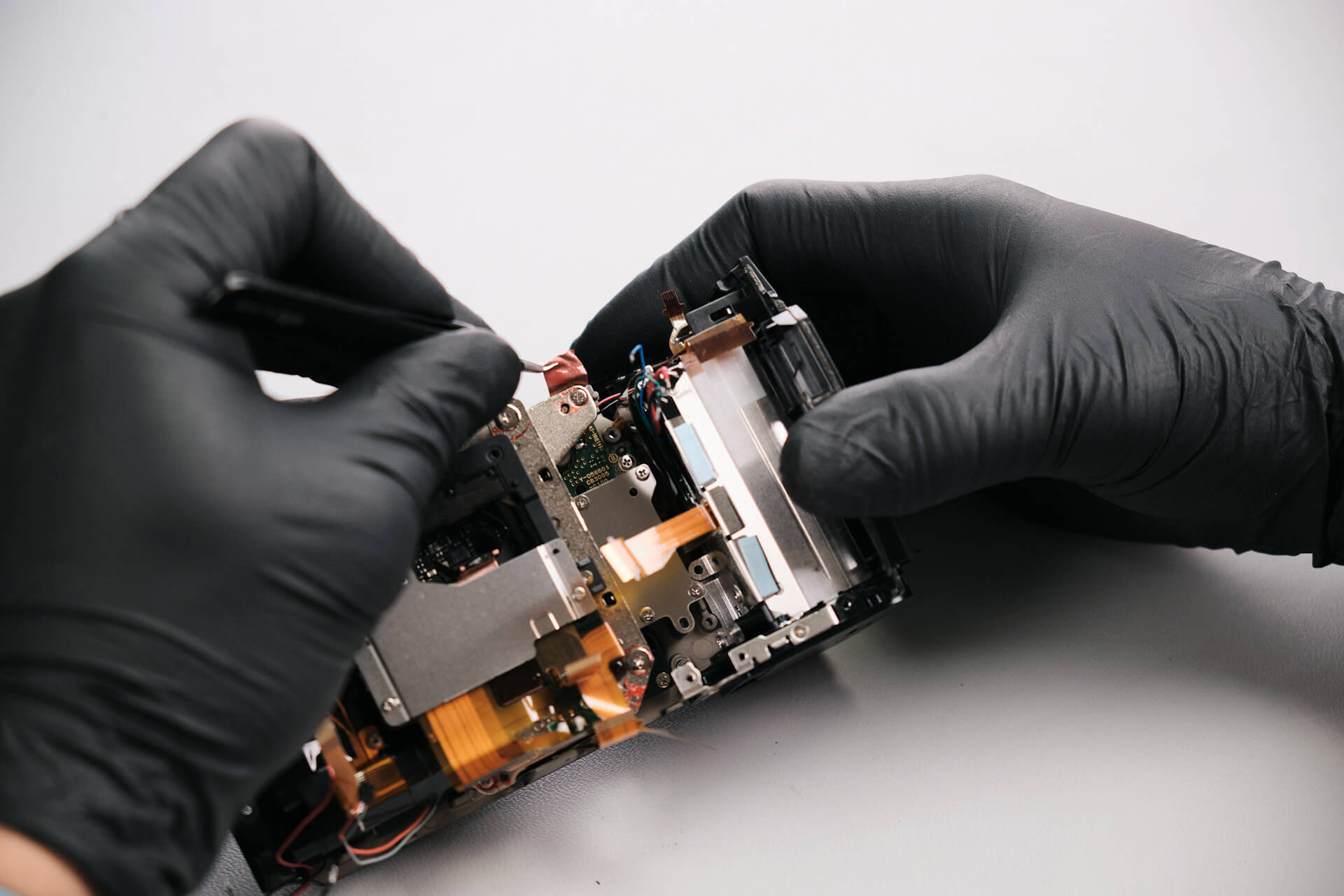

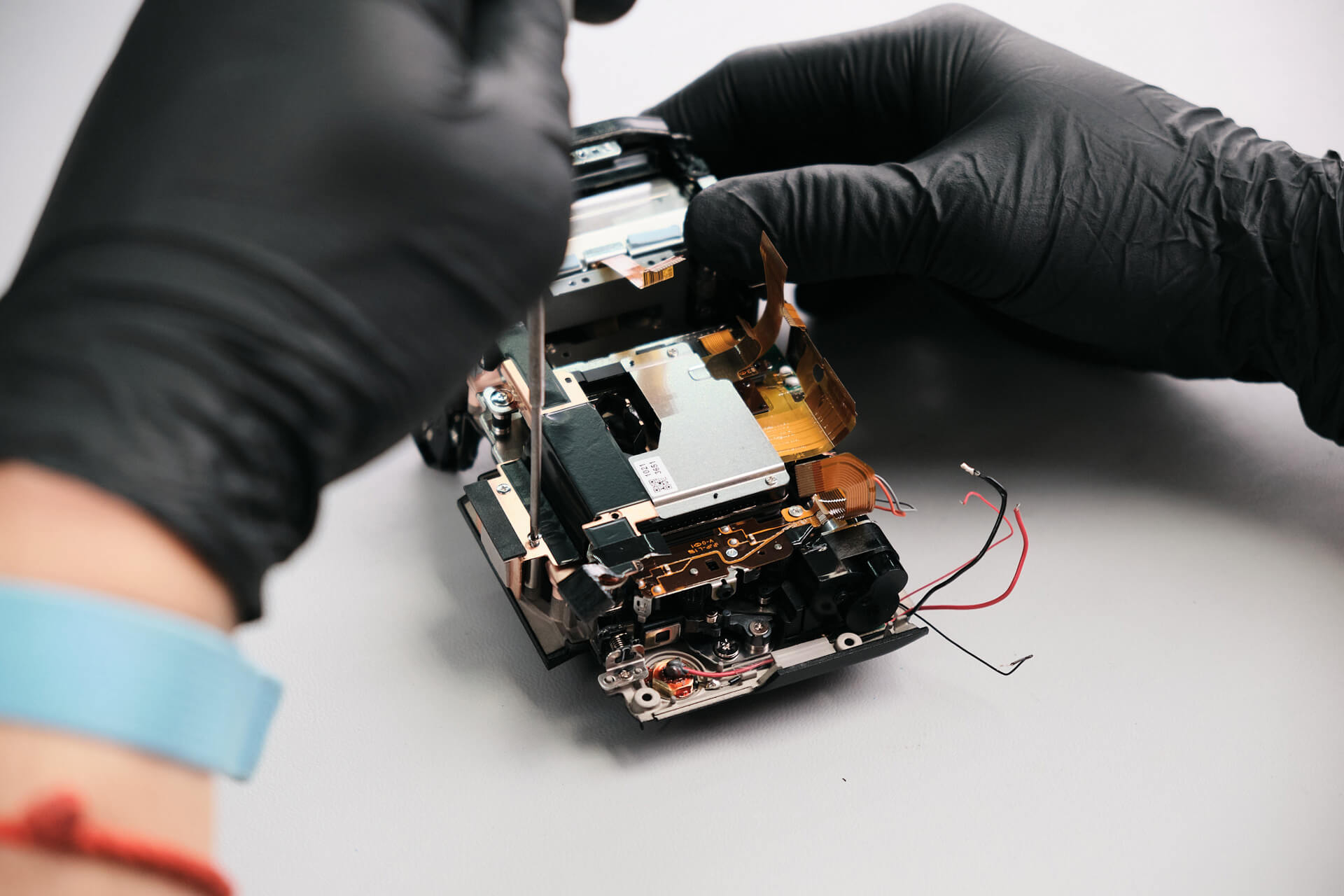

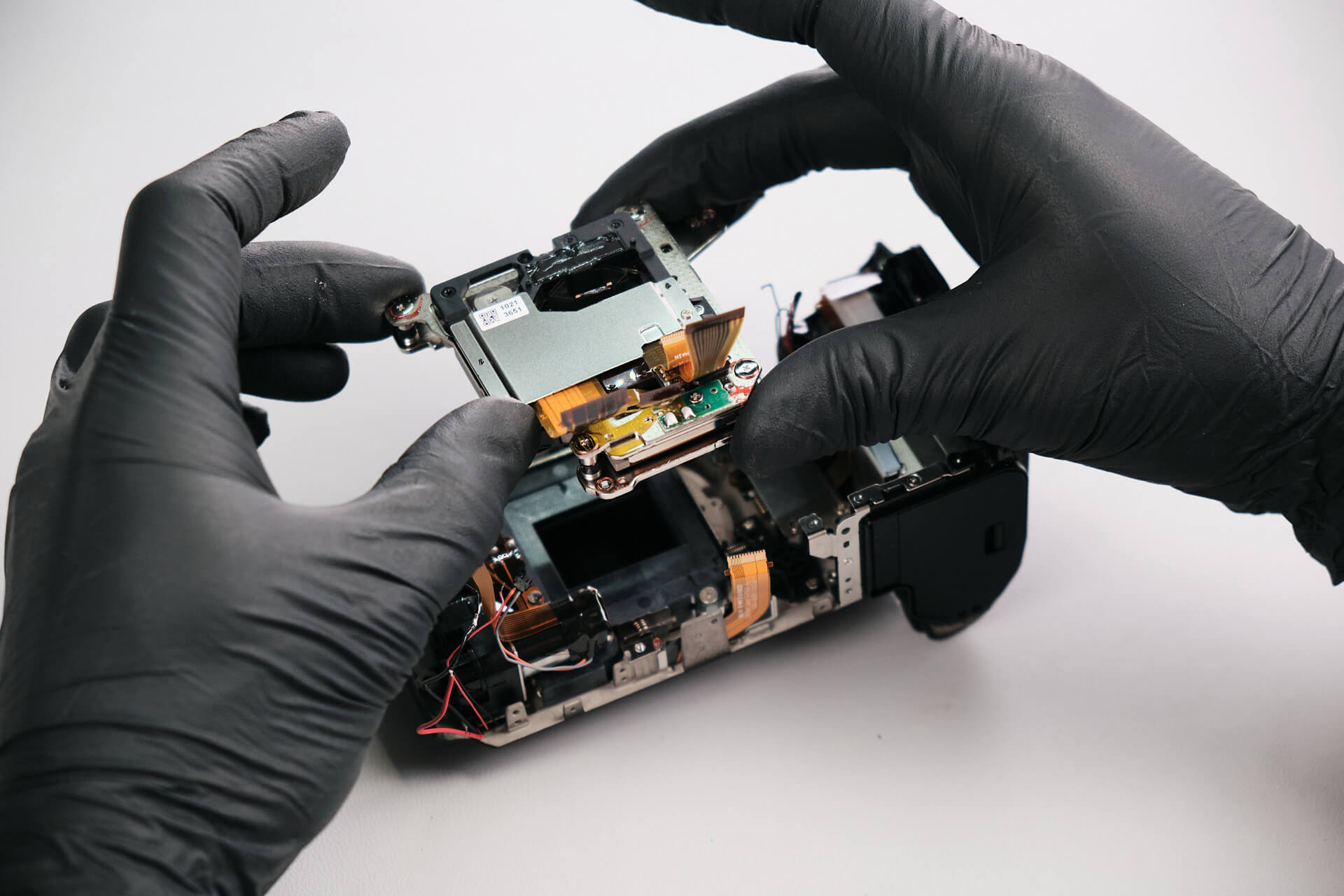

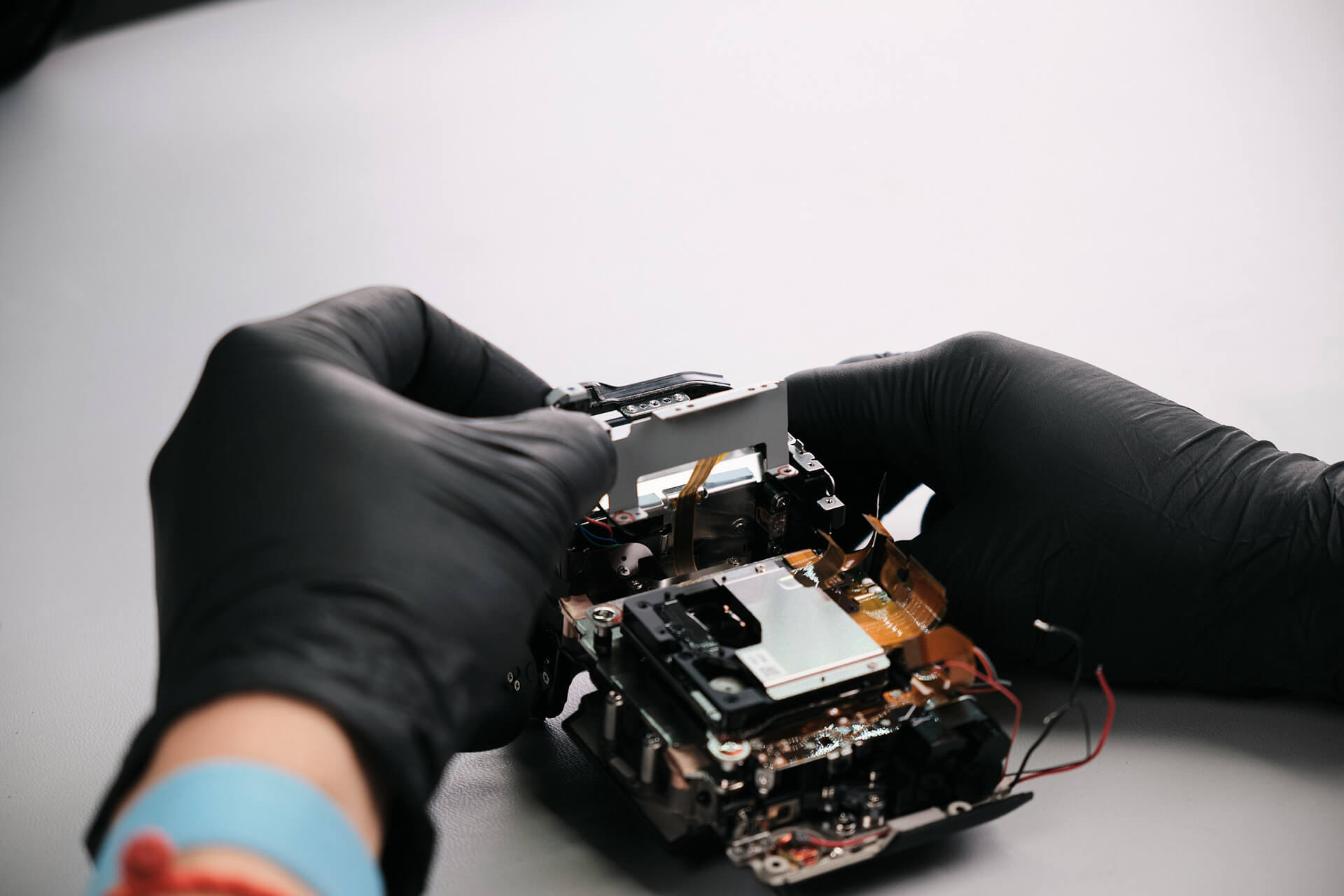

Even after removing the bracket, a secondary bracket covered the sensor. This was removed and set aside.

78 fuji
79 fuji
80 fuji

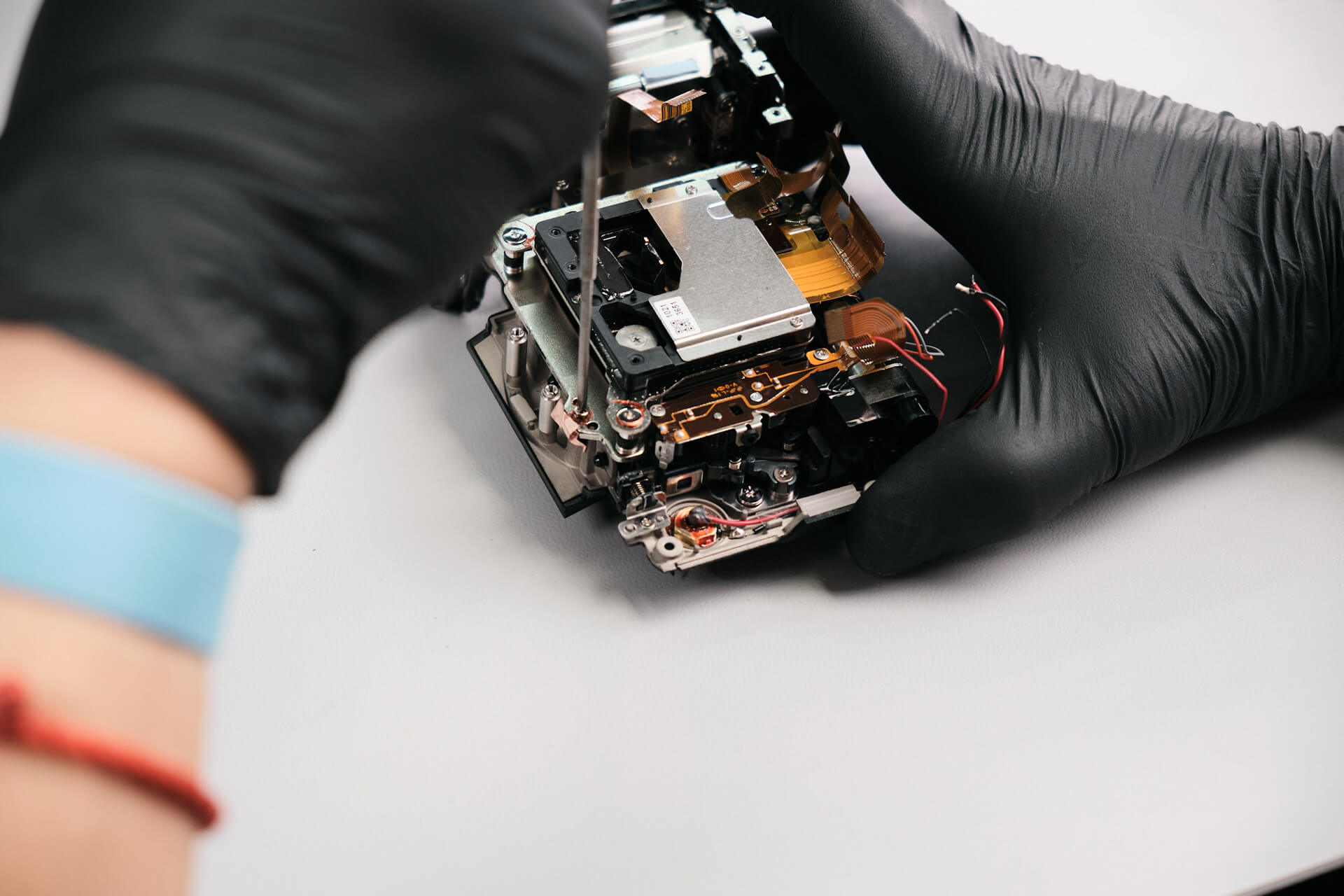

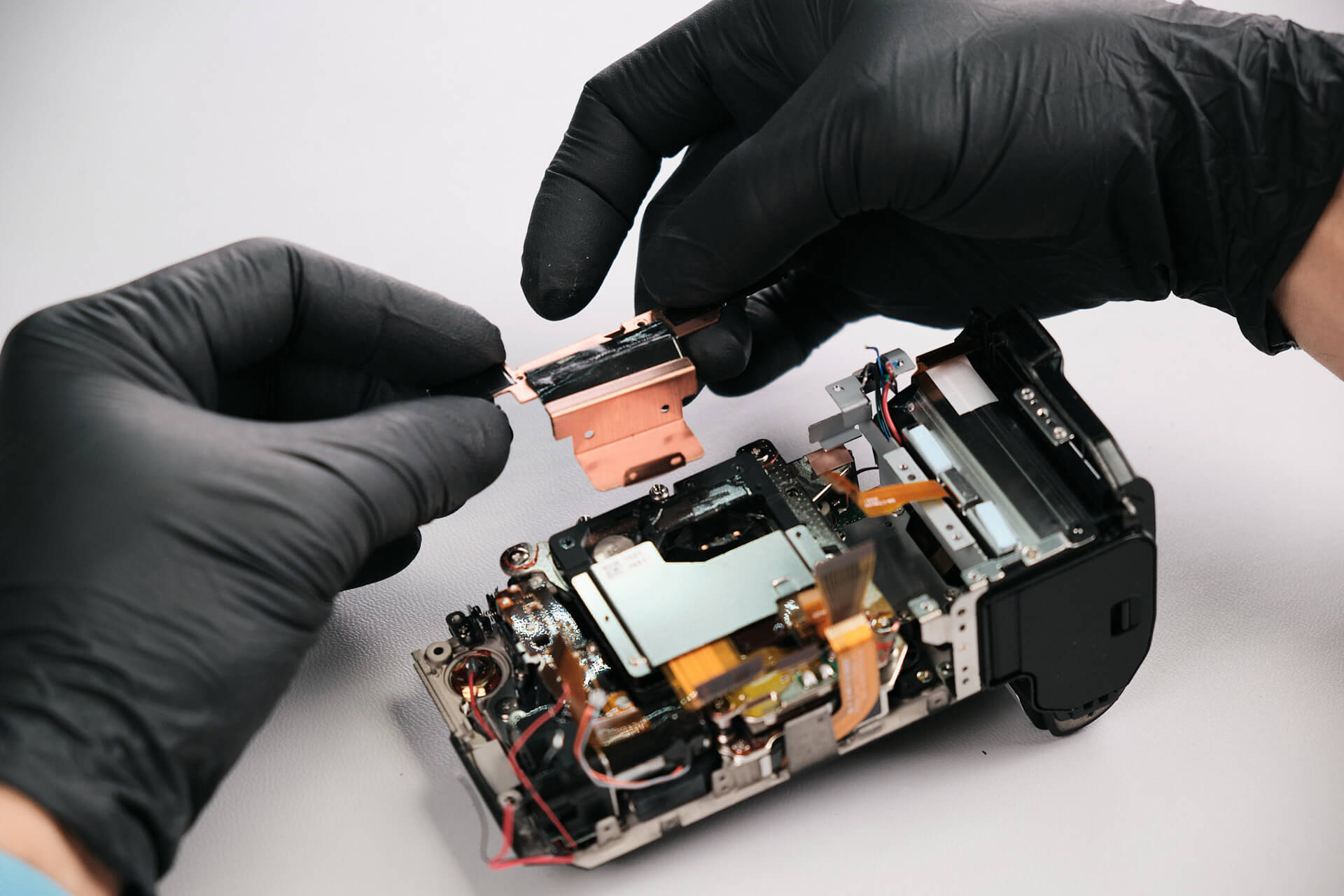

Copper heat transfer tape was peeled back to expose the sensor screws.

81 fuji
82 fuji 1

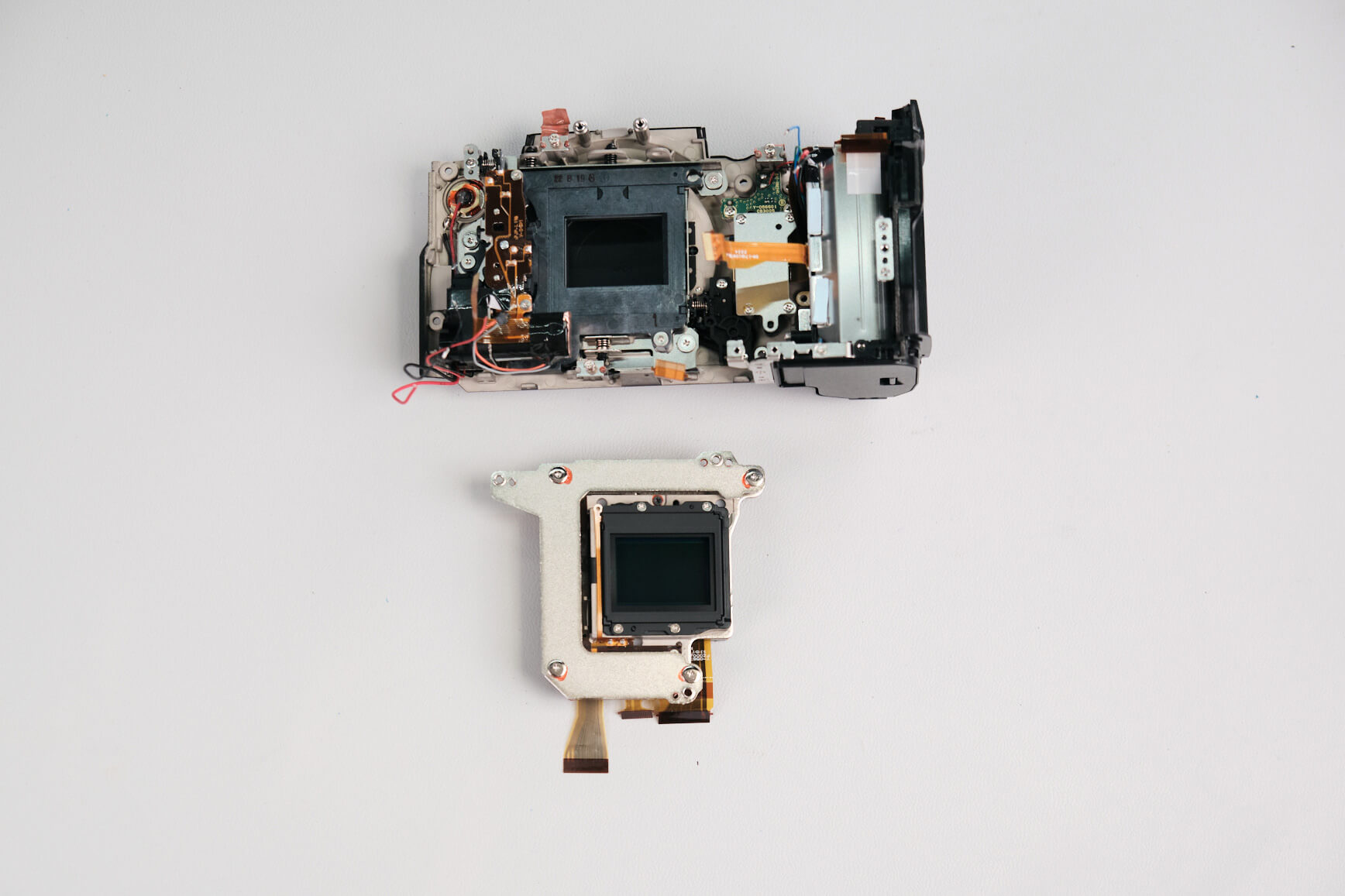

The Fujifilm X-H2 uses shims for focus adjustment. At last, the sensor is out and ready to convert!

On a scale of 1-10, with 10 being the hardest, we would rate this an 8.5. There were many hidden screws and cables throughout many different layers of the camera. Soldering was involved, and the weather sealing for the top panel needed to be cut, which made for a more time-consuming disassembly than expected. Overall, patience was required to open up this Fujifilm X-H2 model.
